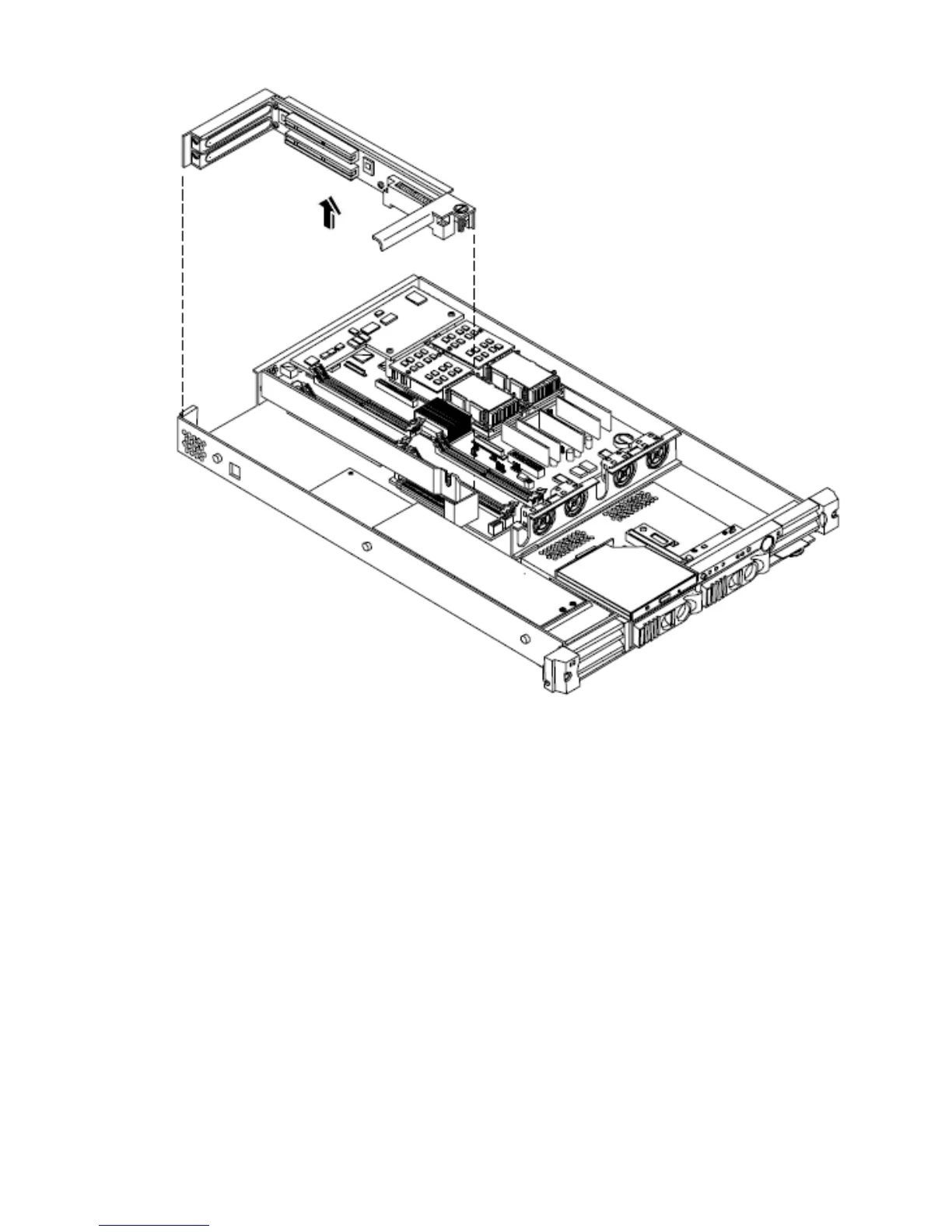

Figure 48 Removing the I/O Riser Assembly
5. Replace the cover. See “Removing and Replacing the Cover” (page 30).
Replacing the PCI I/O Riser Assembly
1. Remove the cover. See “Removing and Replacing the Cover” (page 30).
2. Disconnect any cables that are connected to any PCI card(s).
3. Release the PCI I/O riser by lifting the release handle. This action frees the PCI I/O riser from
the system board.
4. Remove any PCI cards that are currently installed on the PCI I/O riser assembly. Place the
removed PCI card in an antistatic container.
5. Install any PCI cards that were removed from the failed PCI I/O riser assembly into the
replacement assembly.
6. Replace the PCI I/O riser assembly by positioning the connector over the mating connector
on the system board and then turning the jackscrew to complete the connector mating.
7. Connect any cables that are required by the PCI card.
8. Replace the cover. See “Removing and Replacing the Cover” (page 30).
52 Removing and Replacing Components
