Installing System Memory
To install DIMMs, perform the following steps:
1. Align the DIMM with the socket located on the system board.
2. Gently and evenly push on each side of the DIMM until it seats in the socket. Ensure the
extraction levers are in the closed position.
3. Replace the top cover.

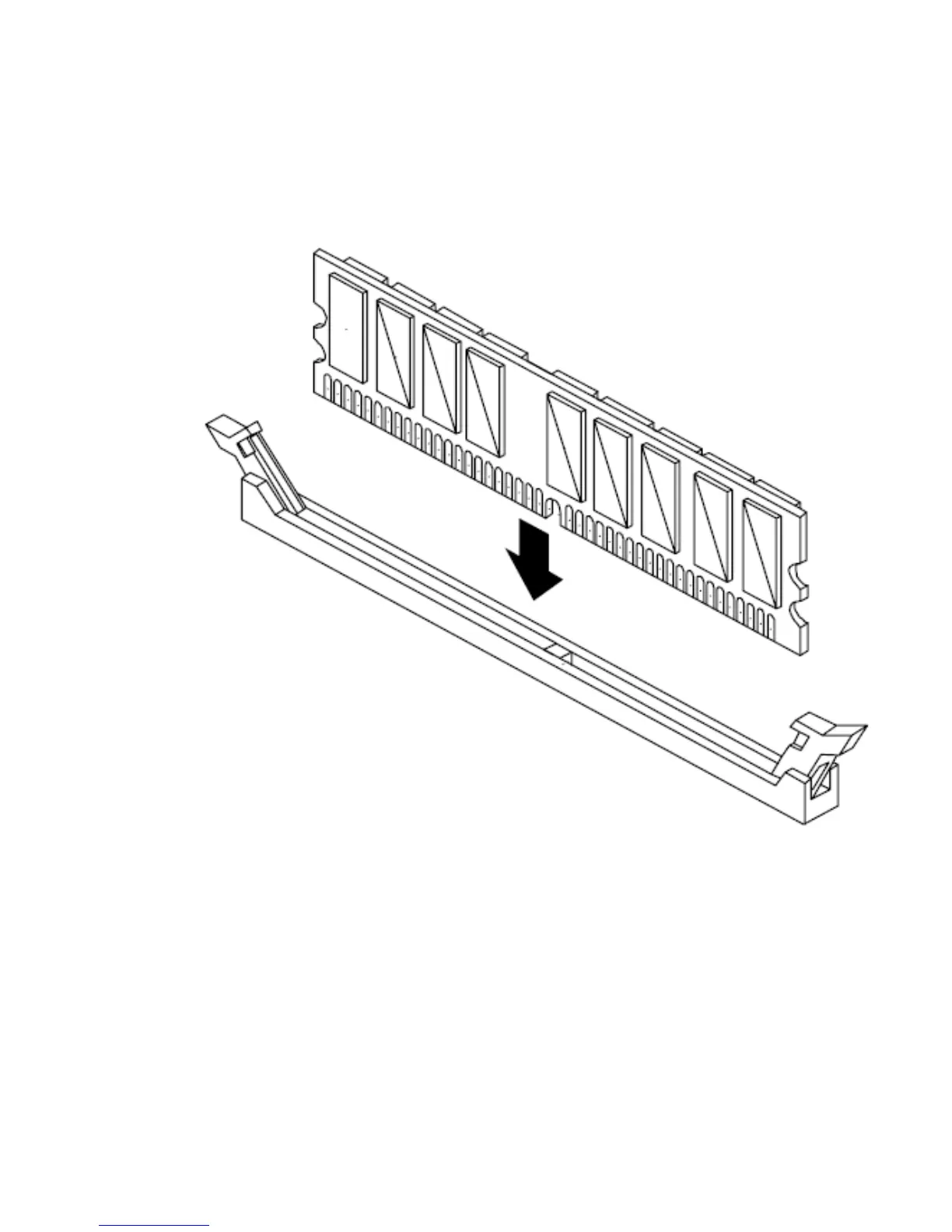

Figure 28
Removing and Replacing a Processor
This section provides information about removing and replacing processors.
Processors are located on the system board. The system board can support either one or two
processors. CPU 0 is located to the right of the system board, and CPU 1 (when installed) is located
on the left of the system board next to the bridge assembly. In a single CPU configuration, the
single processor must be installed in CPU 0 slot.
Each processor has an associated power pod that is required by the processor.
Removing and Replacing a Processor 33
