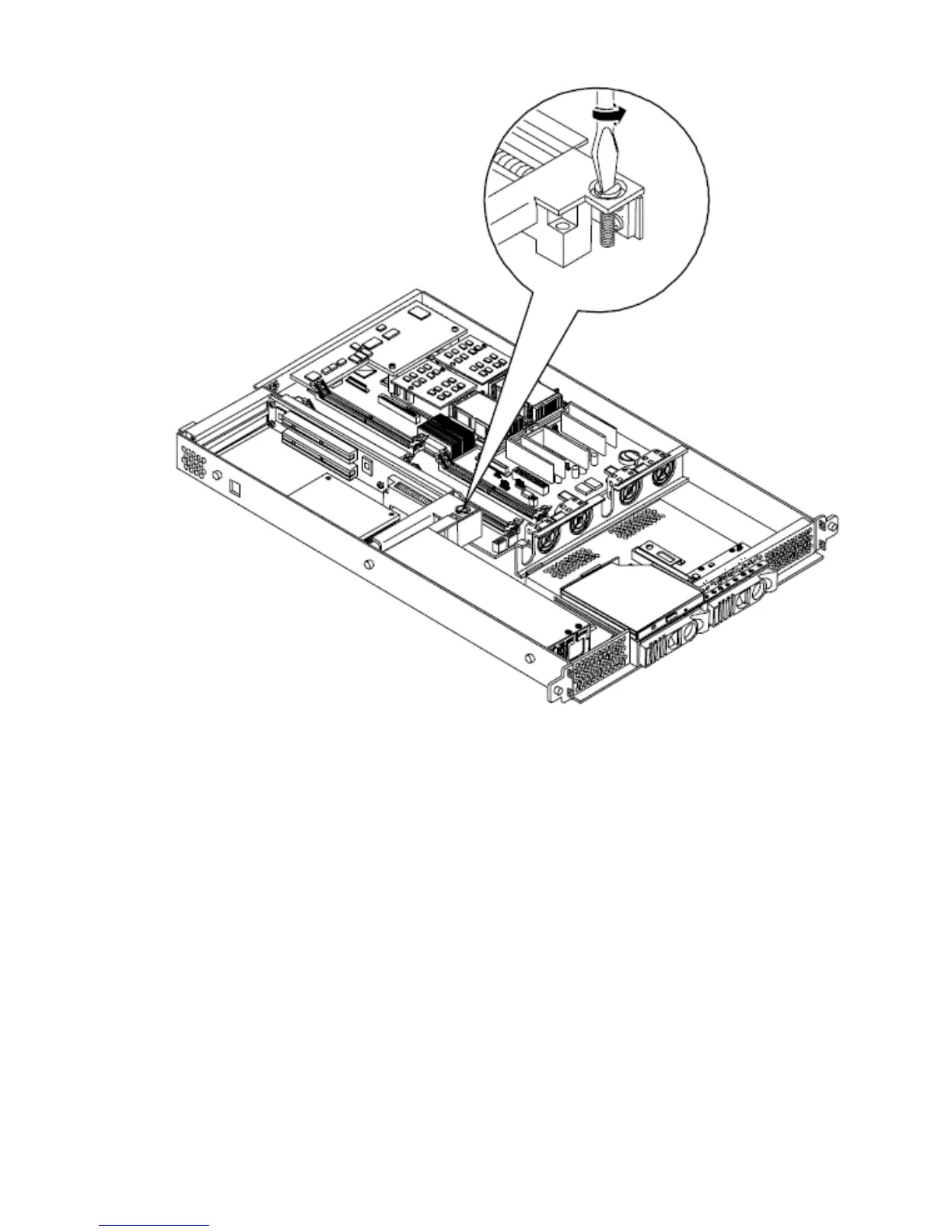

Figure 49 Using Jackscrew to Release PCI I/O Riser
4. Grasp the edges of the PCI card being removed and gently rock the card releasing the
connector from the PCI I/O riser connector. Place the removed PCI card in an antistatic
container.
5. Install a PCI slot cover to close the cavity left by the removal of the PCI card. This will maintain
the proper airflow within the chassis.
6. Replace the PCI I/O riser assembly by positioning the connector over the mating connector
on the system board and then turning the jackscrew to complete the connector mating.
54 Removing and Replacing Components
