1. If installing an additional drive, remove the slot filler that is installed in slot 1. If replacing a
disk drive, the slot will be empty due to the disk drive being previously removed.

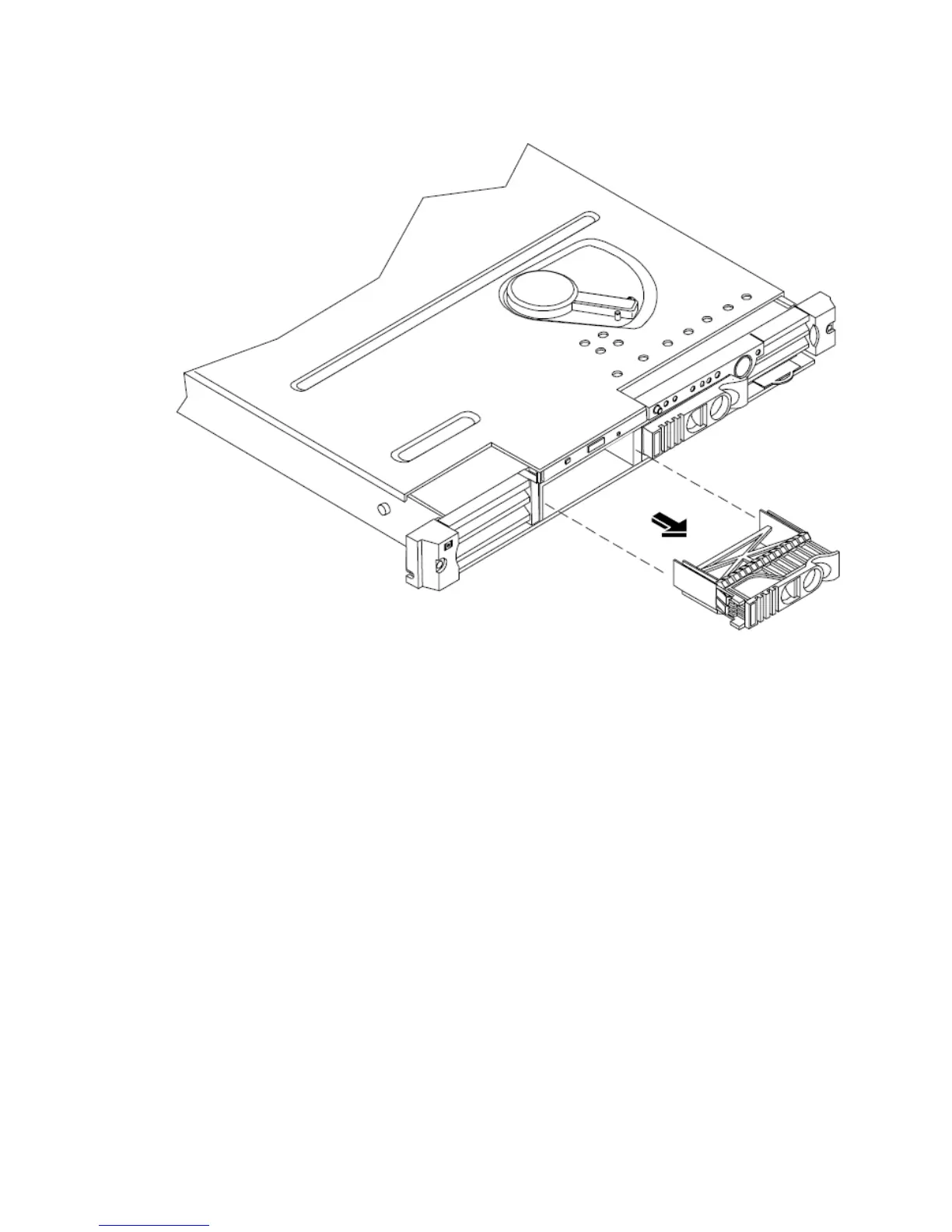

Figure 54 Removing Disk Drive Slot Filler
2. Slide the hard disk into the vacant SCSI cage slot until it is seated.
3. Close the drive-ejector handle by pushing it down until it clicks.
58 Removing and Replacing Components
