HP Integrity rx1620 Maintenance Guide

5. Connect the MP card:
a. Connect the MP card cable to its connector on the system board.
b. Screw in the two mounting screws that connect the MP card to the internal chassis post.

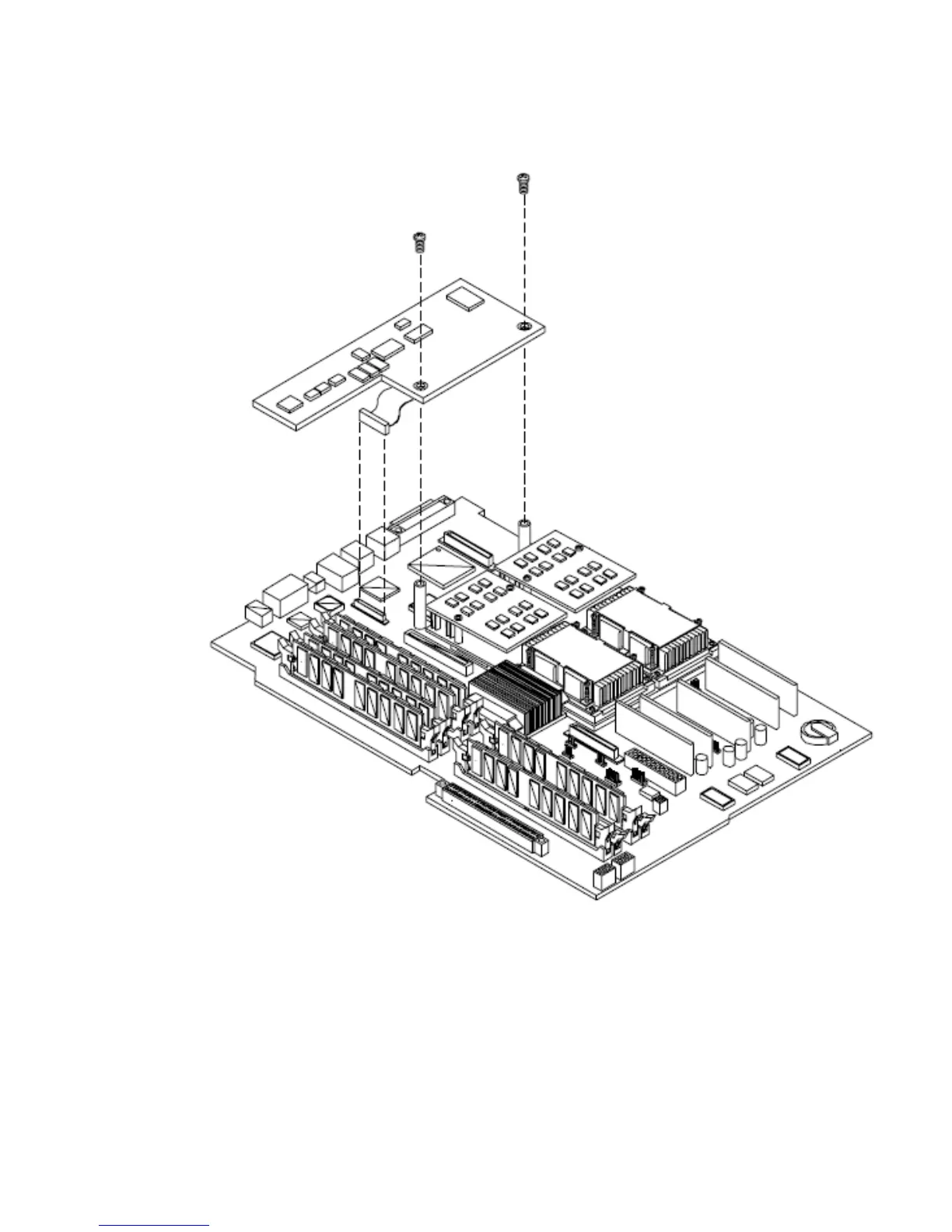

Figure 60 Connecting the Management Processor Card
6. Screw in the two external mounting posts that are located on both sides of the 25-pin serial
connector.
64 Removing and Replacing Components
