Docking board
The docking board is secured with five Torx screws. Seven cables are connected to the top of the board and
four cables are connected to the bottom of the board.
To remove the docking board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the column on page 77).
2. Remove the rear covers from the computer (see
Removing the rear covers from the computer
on page 78).
3. Separate the computer from the column (see
Separating the computer from the column on page 80).
4. Remove the bottom cover (see
Bottom cover on page 83).
5. Remove the side and top cover (see
Side and top cover on page 84).
6. Remove the inside cover (see
Inside cover on page 87).
7. Remove the docking board shield (see
Docking board shield on page 89).

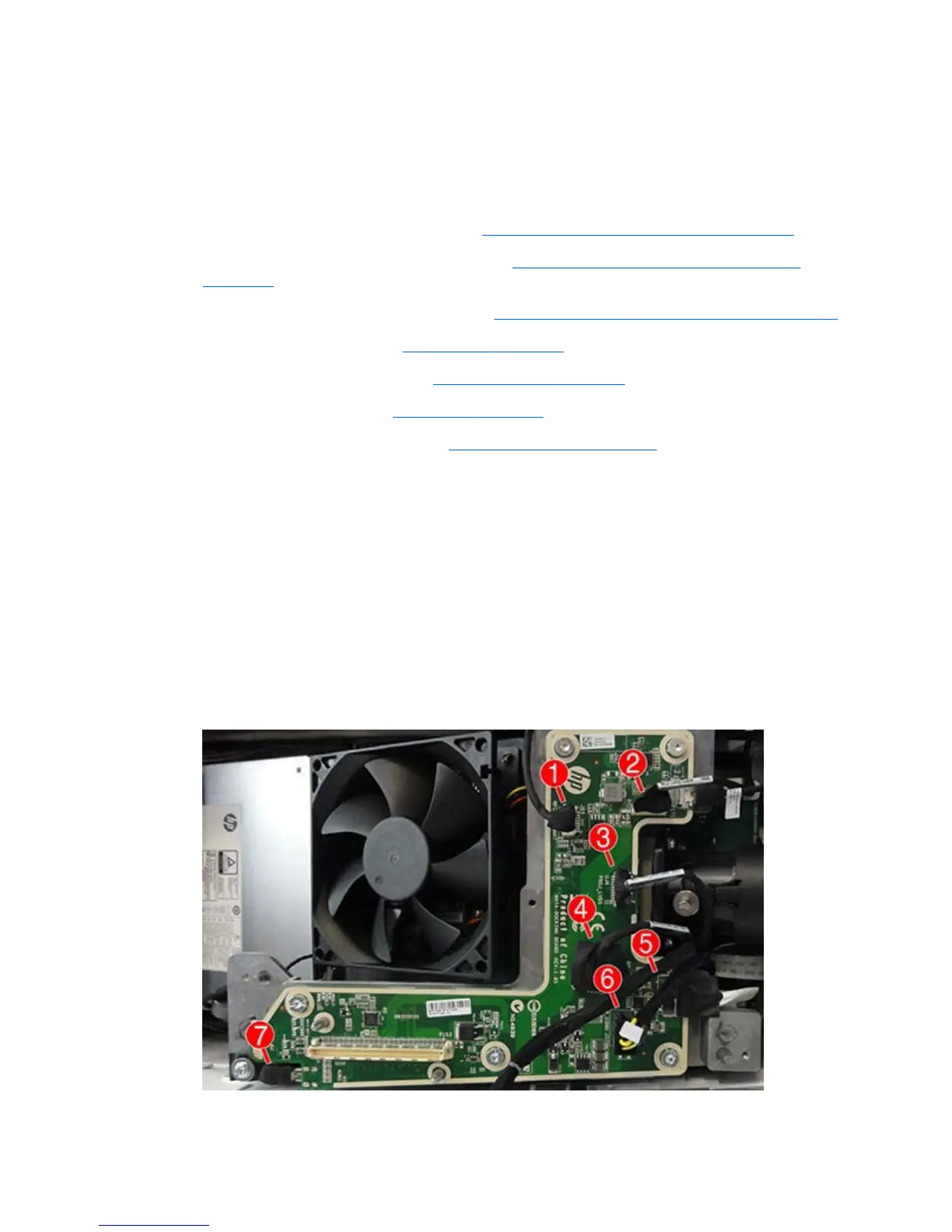

8. Disconnect the following cables:
(1): NFC Touchmat
(2): Lamp
(3): Projector
(4): Projector power
(5): Hi-res camera
(6): Main power
(7): HDMI
ENWW Docking board 91
