Fan assembly
To remove the fan assembly:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 25).
2. Remove the rear covers (see
Removing the rear covers from the computer on page 26).
3. Separate the computer from the column (see
Separating the computer from the column on page 35).
4. Remove the system board cover (see
System board cover on page 47).

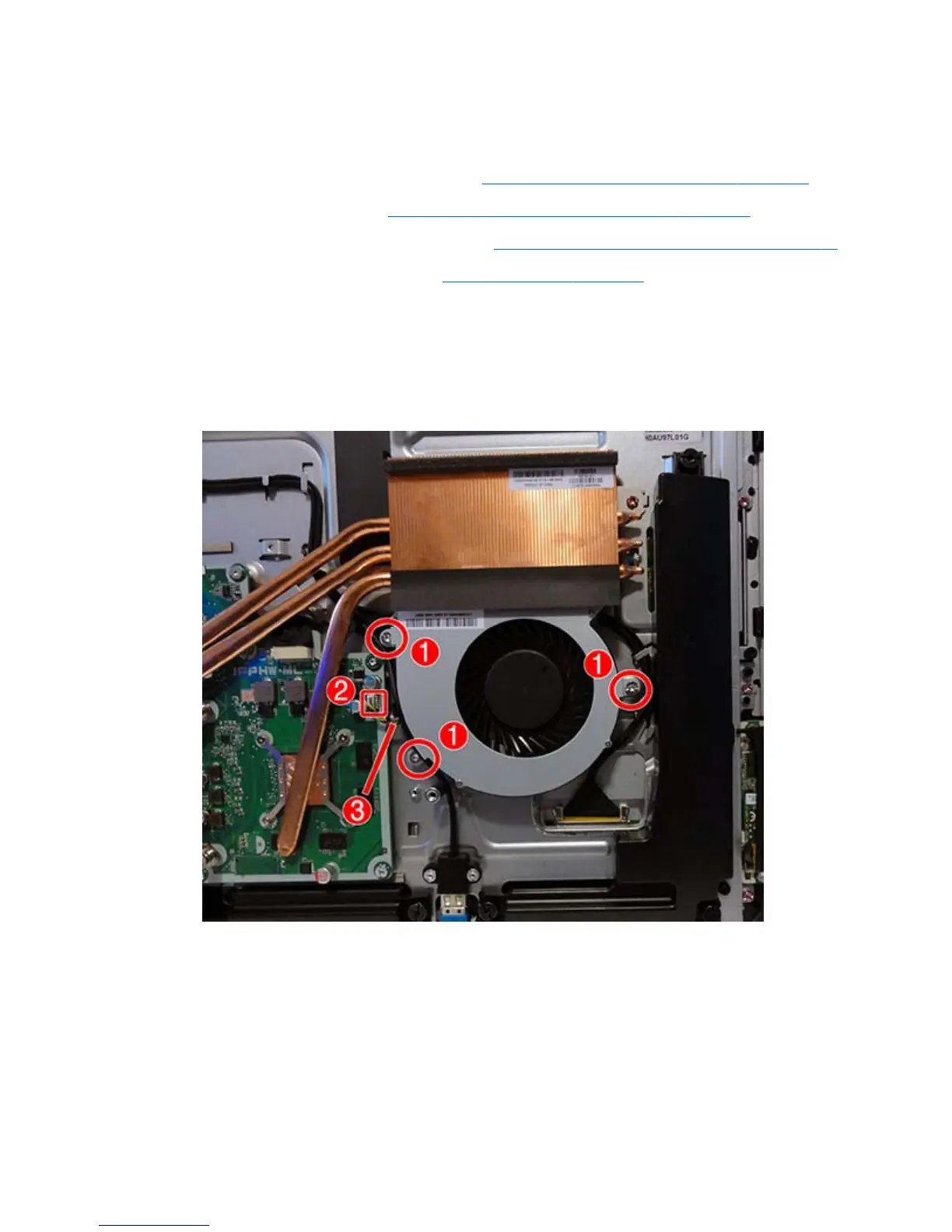

5. Remove the three Torx screws that secure the fan assembly to the computer (1).
6. Disconnect the fan cable (2) from the system board.
7. Remove the USB cable from the clip (3) in the fan.
8. Remove the fan from the computer.
To install the fan assembly, reverse the removal procedures.
ENWW Fan assembly 63
