Hard drive connector

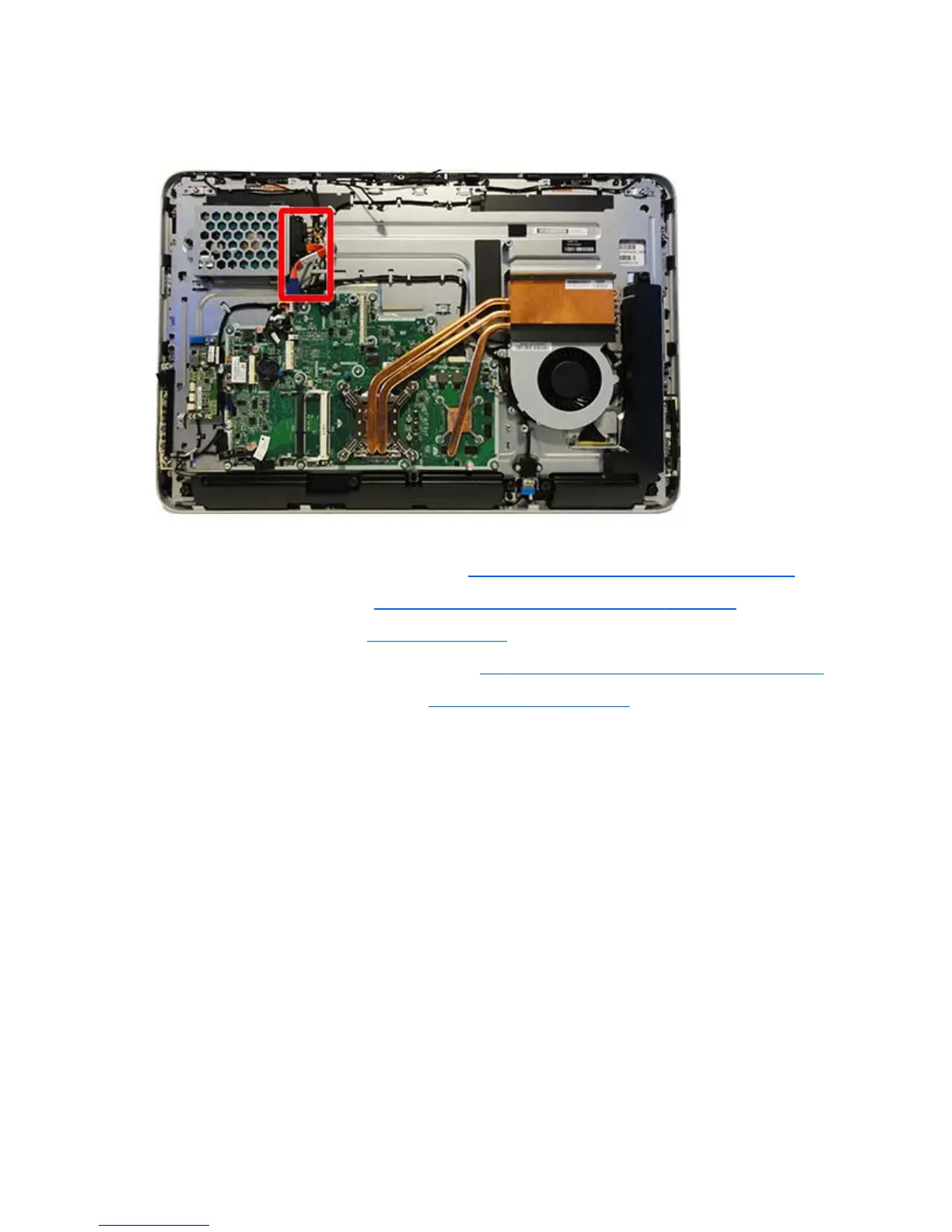

The hard drive connector is located above the system board.
To remove the hard drive connector:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 25).
2. Remove the rear covers (see
Removing the rear covers from the computer on page 26).
3. Remove the hard drive (see
Hard drive on page 28).
4. Separate the computer from the column (see
Separating the computer from the column on page 35).
5. Remove the system board cover (see
System board cover on page 47).
6. Disconnect the hard drive cable from the system board (1).
7. Remove two Torx screws (2) that secure the hard drive connector to the computer.
66 Chapter 4 Removal and Replacement Procedures – Computer ENWW
