Docking board shield
The docking board shield is located under the inside cover. It secured with four Torx screws.
To remove the docking board shield:
1. Prepare the computer for disassembly (see
Preparing to disassemble the column on page 77).
2. Remove the rear covers from the computer (see
Removing the rear covers from the computer
on page 78).
3. Separate the computer from the column (see
Separating the computer from the column on page 80).
4. Remove the bottom cover (see
Bottom cover on page 83).
5. Remove the side and top cover (see
Side and top cover on page 84).
6. Remove the inside cover (see
Inside cover on page 87).

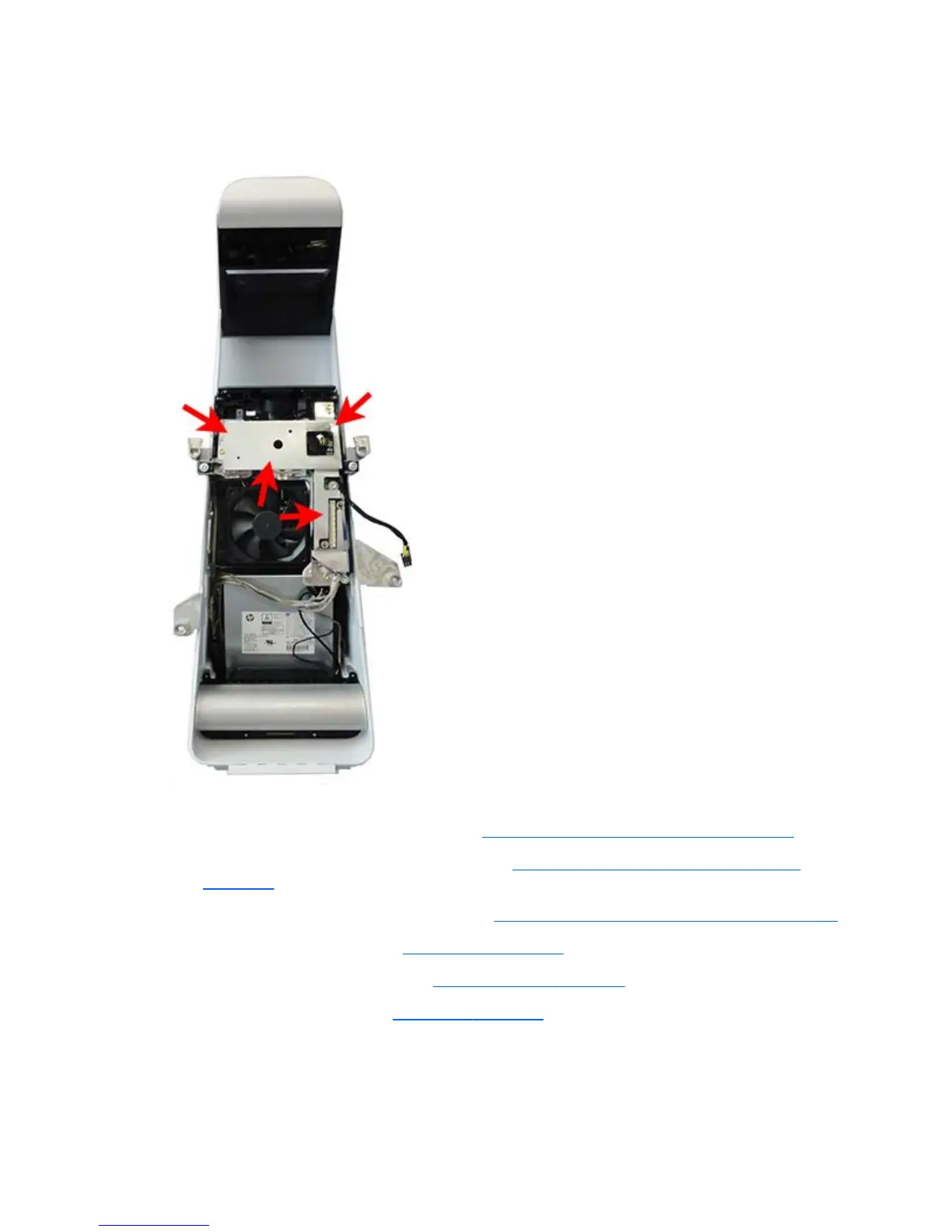

7. Remove the four Phillips Torx screws (1) that secure the shield to the computer. Note the location
through which the power cable is routed (2).
ENWW Docking board shield 89
