Converter board

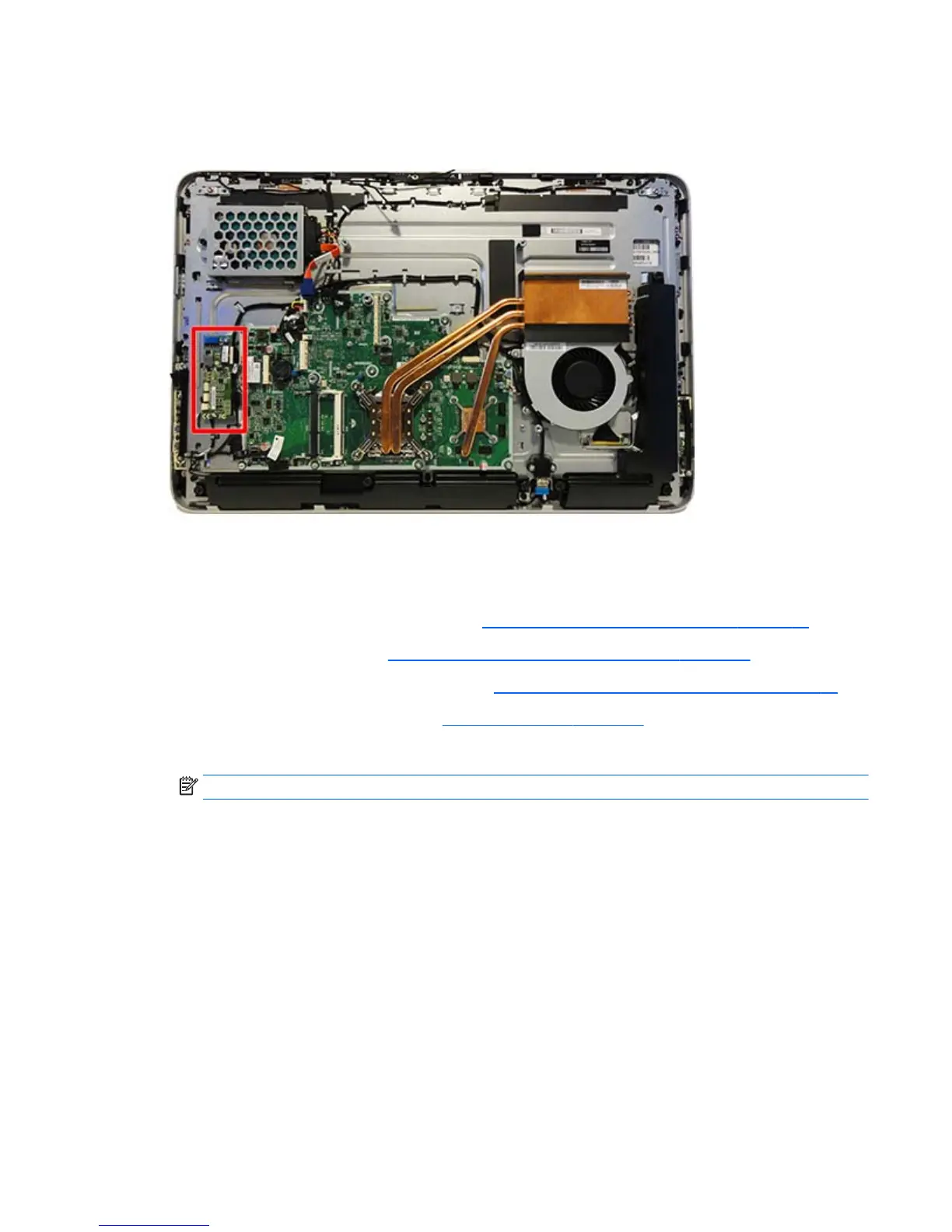

The converter board is located to the left of the system board.
Use the same converter spare part for all display panels; however, you must change jumper settings,
backlight cable, and cable connection on the board based on the display panel manufacturer.
To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 25).
2. Remove the rear covers (see
Removing the rear covers from the computer on page 26).
3. Separate the computer from the column (see
Separating the computer from the column on page 35).
4. Remove the system board cover (see
System board cover on page 47).
5. Disconnect the two cables from the board (1).
NOTE: Use the backlight cable specific to the display manufacturer.
ENWW Converter board 51
