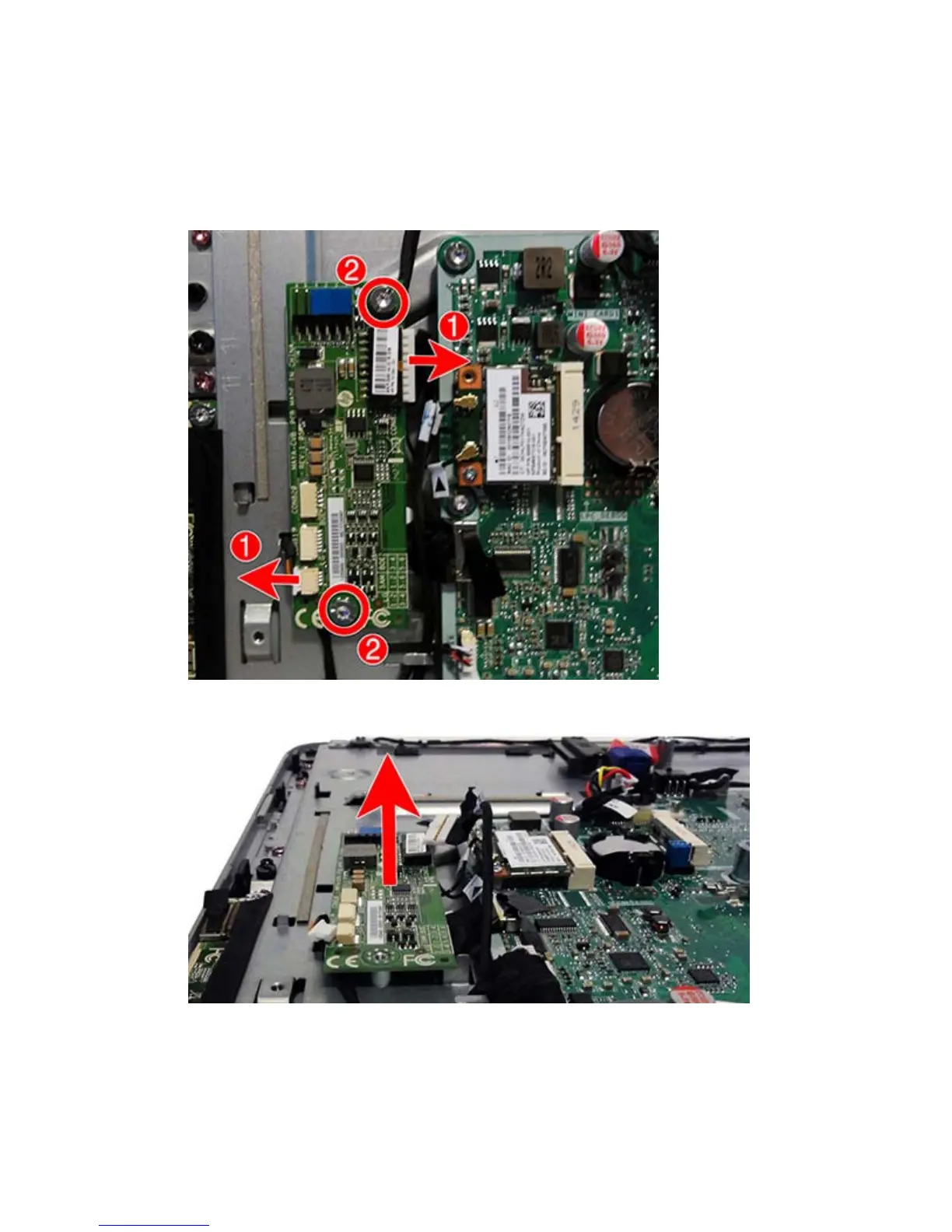

6. Remove the two Torx screws (2) that secure the board to the computer.
Be sure to correctly position the jumpers on the converter board for the installed display panel. Proper
jumper settings are printed on the converter board.
Be sure to connect the converter cable into the correct connector on the converter board for the
manufacturer of the installed display panel.
7. Lift the converter board from the computer.
To install the converter board, reverse the removal procedures.
Be sure to correctly position the jumpers on the converter board for the manufacturer of the installed display
panel. The jumper settings are printed on the converter board.
52 Chapter 4 Removal and Replacement Procedures – Computer ENWW
