Microphone module

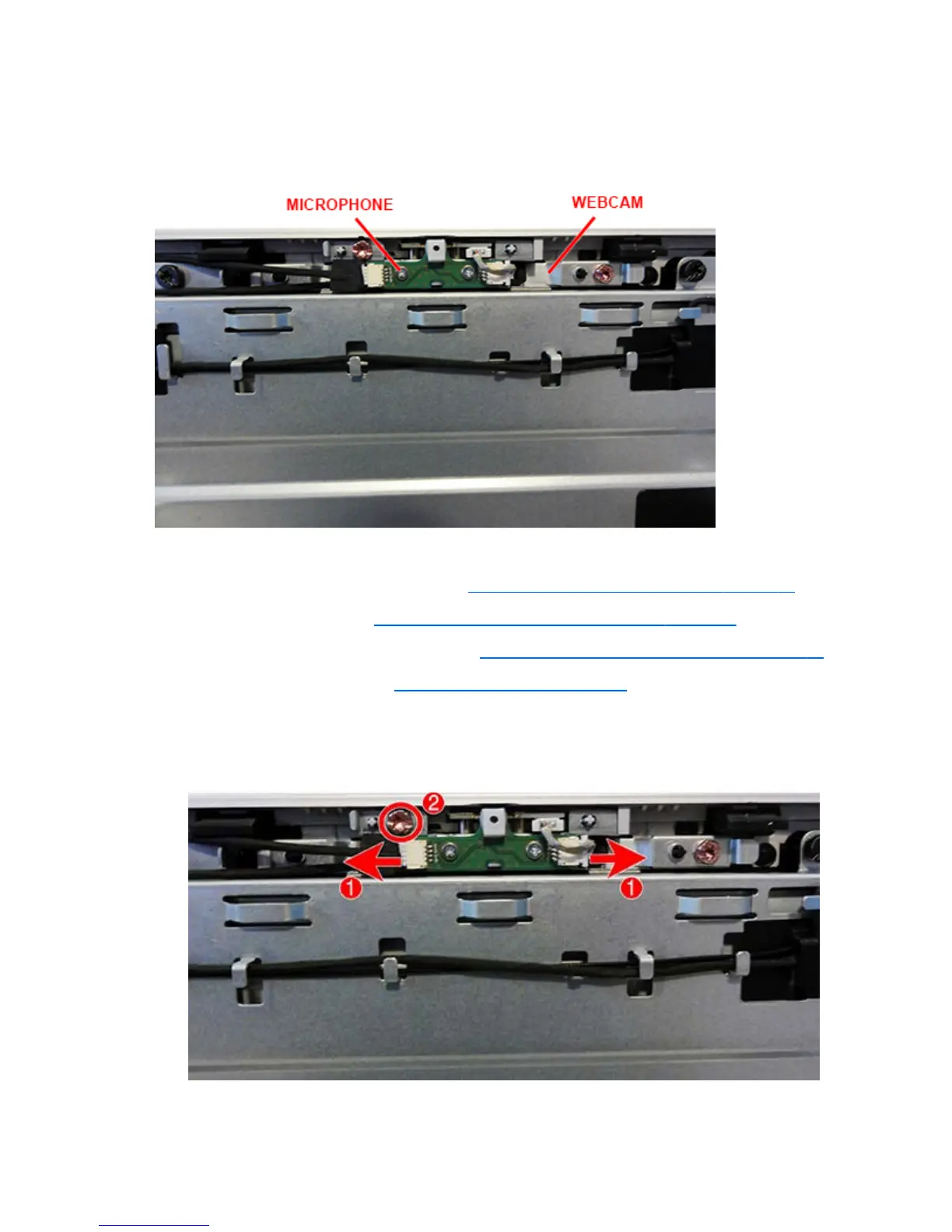

The microphone module is located at the top of the computer beneath the webcam cover. The microphone
module sits on top of the webcam module.
To remove the microphone module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 25).
2. Remove the rear covers (see
Removing the rear covers from the computer on page 26).
3. Separate the computer from the column (see
Separating the computer from the column on page 35).
4. Remove the webcam cover (see
Top rear cover (webcam) on page 38).
5. Disconnect the cables from each side of the module (1).
6. Remove the Torx screw (2) that secures the microphone module bracket to the computer, and then
remove the module.
To install a microphone module, reverse the removal procedures.
