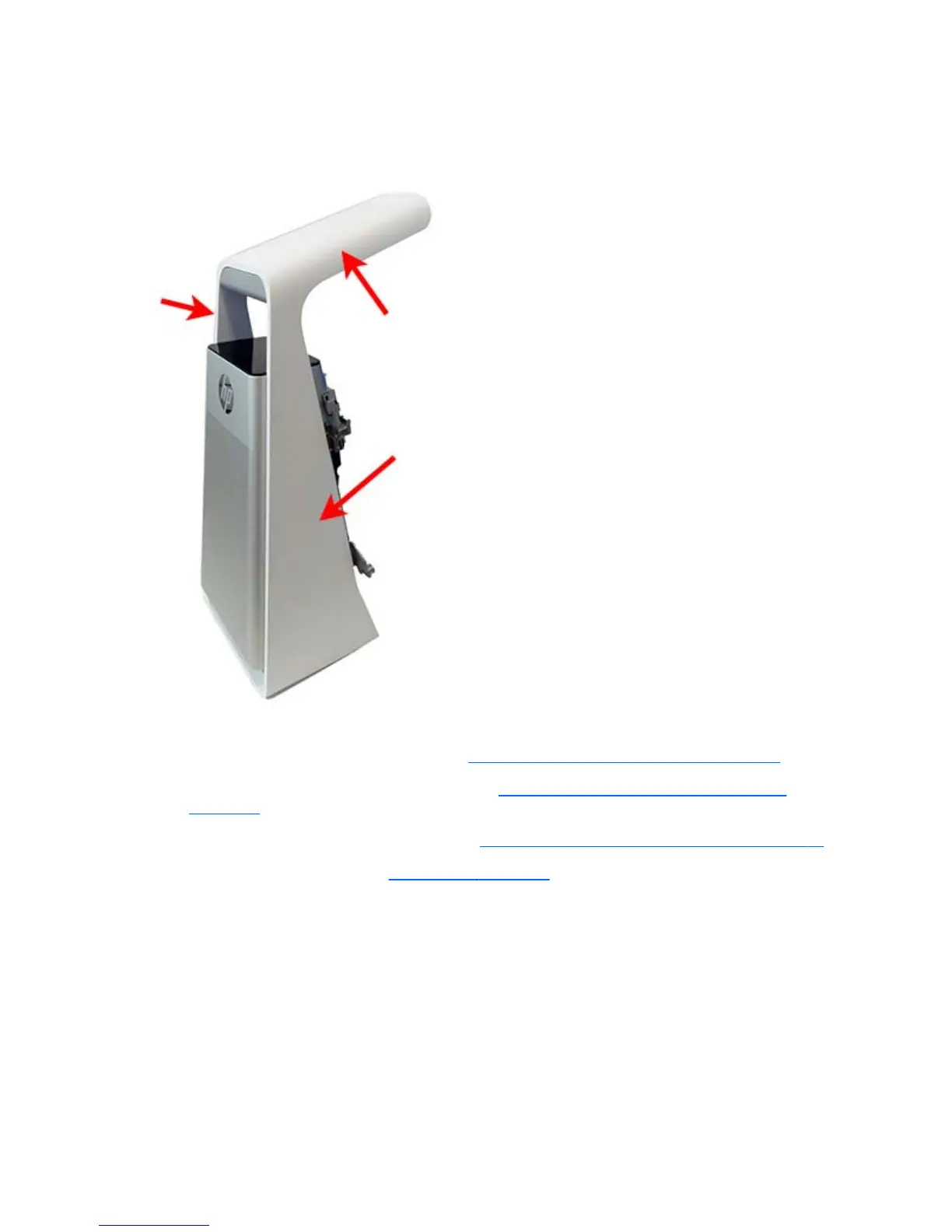

Side and top cover
The white side and top cover is one large piece that is secured to the sides and top of the column. Tabs secure
the bottom of the cover to the bottom of the column. Double-sided tape secures the sides to the column.
To remove the side and top cover:
1. Prepare the computer for disassembly (see
Preparing to disassemble the column on page 77).
2. Remove the rear covers from the computer (see
Removing the rear covers from the computer
on page 78).
3. Separate the computer from the column (see
Separating the computer from the column on page 80).
4. Remove the bottom cover (see
Bottom cover on page 83).
84 Chapter 5 Removal and Replacement Procedures – Column ENWW
