HP Sprout Maintenance & Service Guide

Battery
The battery is located under the memory cover near the memory modules. You do not have to remove the
computer from the column to replace the battery.
The battery that comes with the computer provides power to the real-time clock. When replacing the battery,
use a battery equivalent to the battery originally installed in the computer. The computer comes with a 3-
volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of fire and
burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60° C (140º F).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When the
battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, go to
http://www.hp.com/recycle.
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 25).
2. Remove the left rear cover (see
Removing the rear covers from the computer on page 26).
3. Remove the memory cover (see
Memory on page 30).

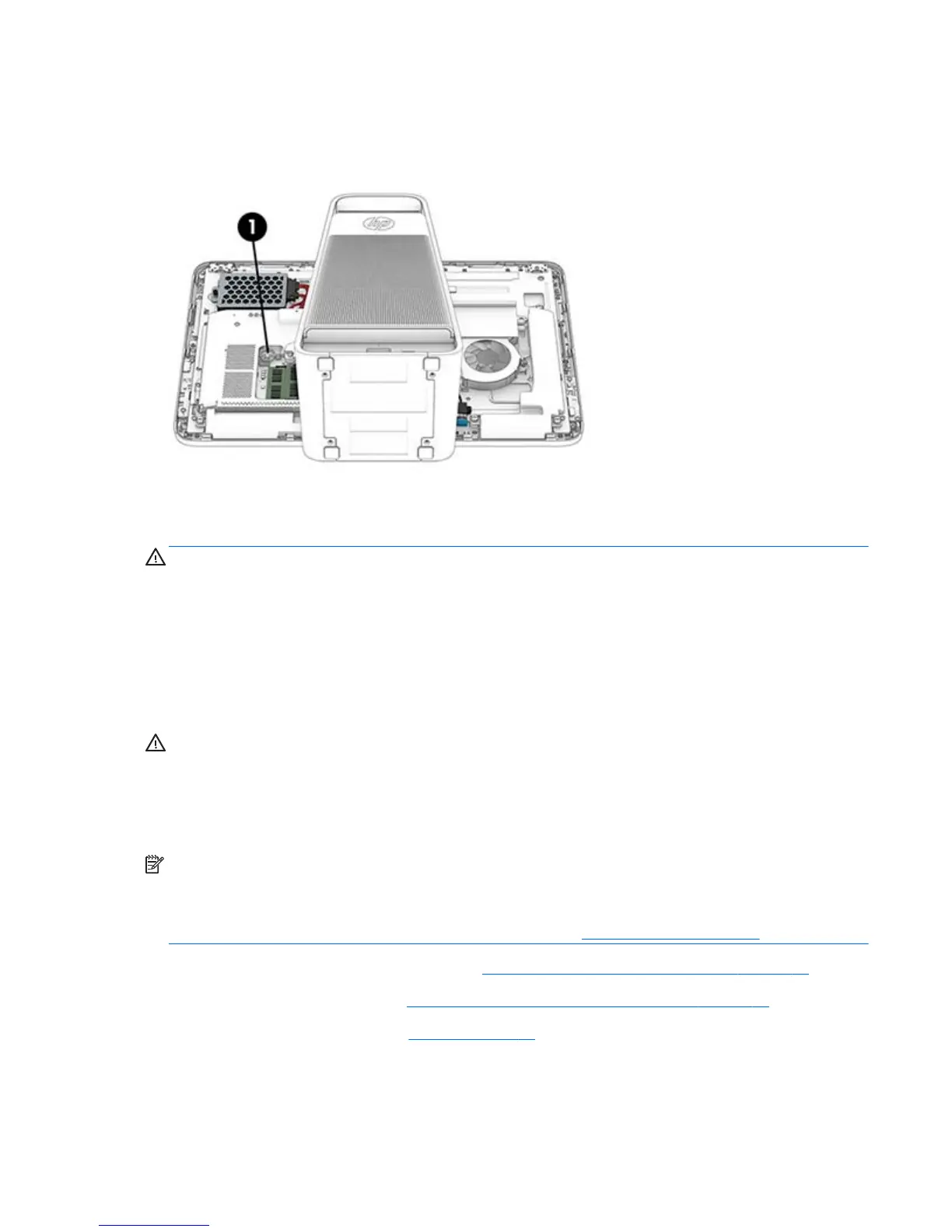

4. To release the battery from its holder, squeeze the metal clamp that extends above one edge of the
battery. When the battery pops up, lift it out (1).
ENWW Battery 33

HP Sprout Specifications

General

Full HD	Yes
Screen shape	Flat
Display diagonal	23 \
Touch technology	Multi-touch
Native aspect ratio	16:9
Detachable display	No
Storage drive interface	Serial ATA
Tcase	71.35 °C
Bus type	DMI
Stepping	C0
Processor code	SR1QM
Processor cache	8 MB
Processor cores	4
Processor model	i7-4790S
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-4700 Desktop series
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor codename	Haswell
Number of QPI links	0
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	4 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Memory slots	2
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	2 x 4 GB
HDD speed	5400 RPM
HDD interface	SATA
Storage media	Hybrid-HDD
Hybrid-HDD cache type	Flash
Total storage capacity	1000 GB
Compatible memory cards	SD, SDHC, SDXC
Number of storage drives installed	1
On-board graphics card ID	0x412
Discrete graphics card model	NVIDIA® GeForce® GT 745A
On-board graphics card model	Intel® HD Graphics 4600
Discrete graphics card memory	2048 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	11.1
On-board graphics card dynamic frequency (max)	1200 MHz
Number of displays supported (on-board graphics)	3
Audio system	DTS Studio Sound
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating system installed	Windows 8.1
Scalability	1S
Processor ARK ID	80808
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2013C
Intel® Smart Response Technology	-
Intel Identity Protection Technology version	1.00
Product color	Silver
Country of origin	China
Product type	All-in-One PC
Motherboard chipset	Intel® H97
Total megapixels	1 MP
AC adapter power	350 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	577 mm
Width (with stand)	594 mm
Height (with stand)	605 mm
Weight (with stand)	15280 g
