12. Remove the power supply (see Power supply on page 99).

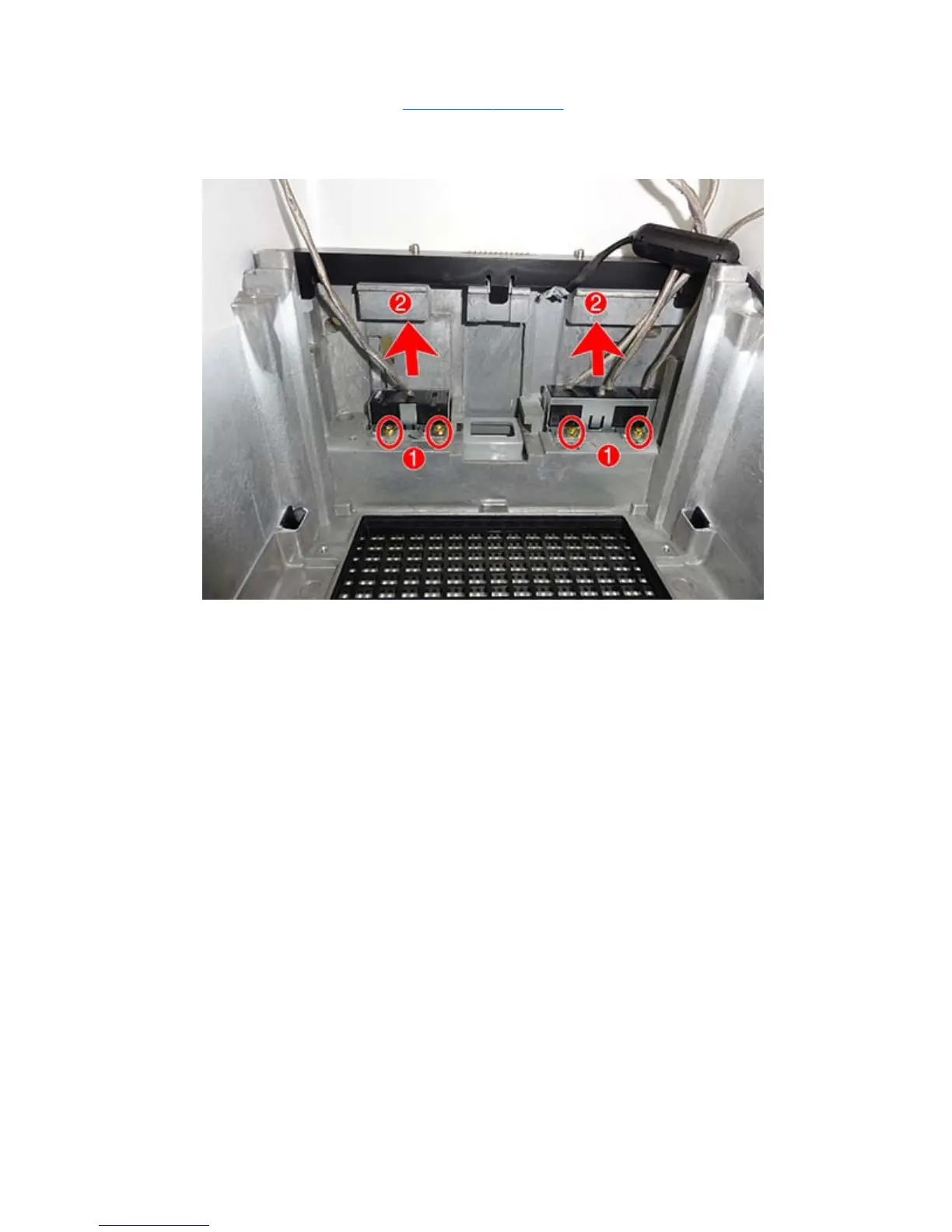

13. Remove the two Torx screws from each module (1), and then lift the modules straight up and out of the
column (2).
To replace the rear I/O modules, reverse the removal procedures.
ENWW Rear I/O modules 103
