8. Separate the frame from the display only enough to access the touch board and cable, and disconnect
the cable from the touch board.

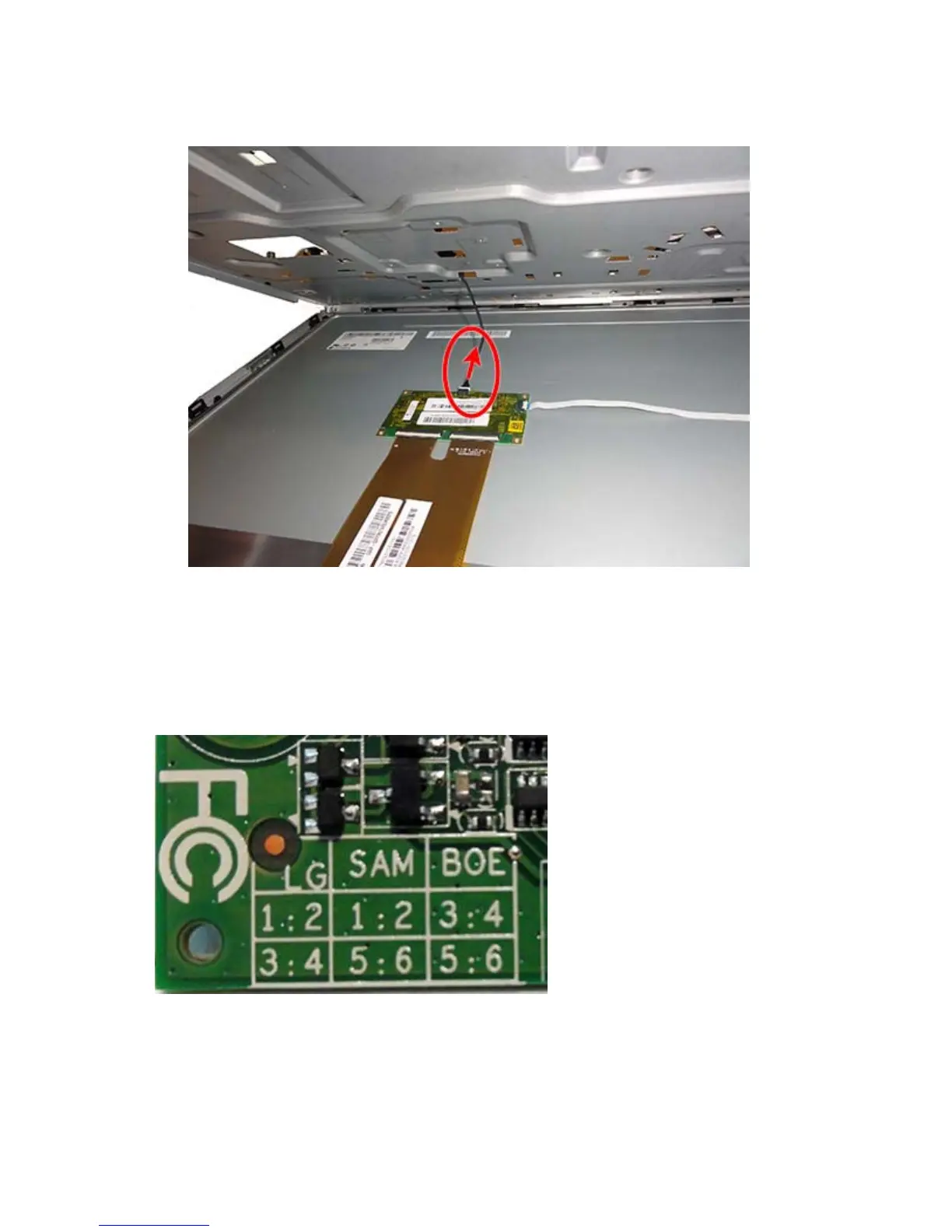

Be sure to correctly position the jumpers on the converter board for the manufacturer of the installed display
panel. The jumper settings are printed on the converter board.
LG – 1:2, 3:4
Samsung – 1:2, 5:6
BOE – 3:4, 5:6
Be sure to connect the converter cable into the correct connector on the converter board for the
manufacturer of the installed display panel. The jumper settings are shown on a label near the converter
board.
LG: CON816
BOE: CON817
