B Non-standard rack specifications
The appendix provides information on the requirements when installing the EVA4400 in a non-standard
rack. All the requirements must be met to ensure proper operation of the storage system.
Internal component envelope
EVA component mounting brackets require space to be mounted behind the vertical mounting rails.
Room for the mounting of the brackets includes the width of the mounting rails and needed room for
any mounting hardware, such as screws, clip nuts, etc. Figure 39 shows the dimensions required for
the mounting space for the EVA product line. It does not show required space for additional HP
components such as servers.

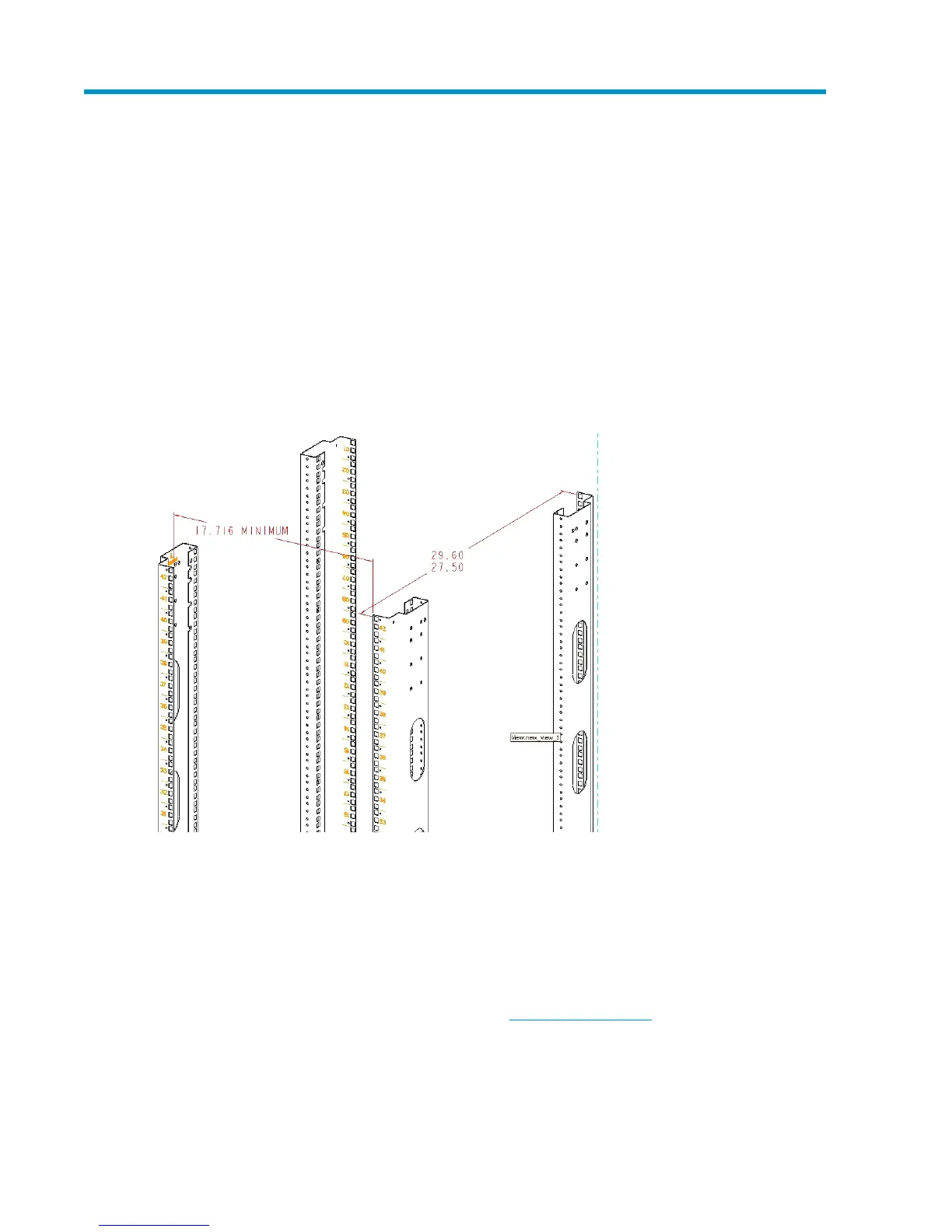

Figure 39 Mounting space dimensions
EIA310-D standards
The rack must meet the Electronic Industries Association, (EIA), Standard 310-D, Cabinets, Racks and
Associated Equipment. The standard defines rack mount spacing and component dimensions specified
in U units.
Copies of the standard are available for purchase at http://www.eia.org/.
HP StorageWorks 4400 Enterprise Virtual Array user guide 105
