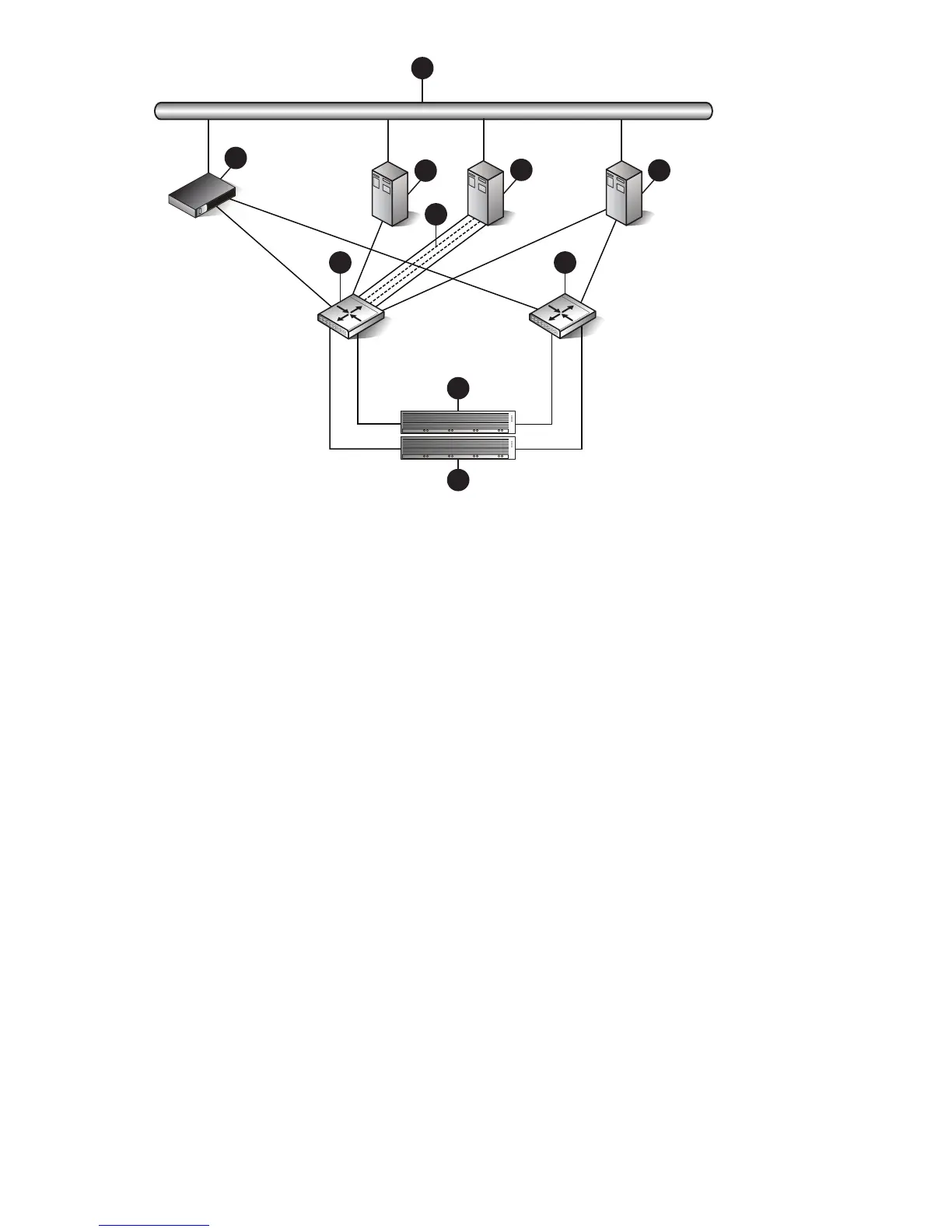

Figure 30 Windows Server 2003 (64-bit) configuration
6. SAN switch 11. Network interconnection
7. Multiple single HBA paths2. Management server
8. SAN switch 23. Host 1
9. Controller A4. Host 2
10. Controller B5. Host 3
SUN Solaris configuration
Requirements
• Switch zoning or controller level SSP must be used to ensure each single path HBA has an exclusive
path to its LUNs.
• Single path HBA server can be in the same fabric as servers with multiple HBAs.
• Single path HBA server cannot share LUNs with any other HBAs.
• In the use of snapshots and snapclones, the source virtual disk and all associated snapshots and
snapclones must be presented to the single path hosts that are zoned with the same controller. In
the case of snapclones, after the cloning process has completed and the clone becomes an ordinary
virtual disk, you may present that virtual disk as you would any other ordinary virtual disk.
• HBA must be properly configured to work in a single HBA server configuration. The user is required
to:
• Download and extract the contents of the TAR file.
HP StorageWorks 4400 Enterprise Virtual Array user guide 63
