CXO8238A
1
3
2
4
5
6
7
8
2

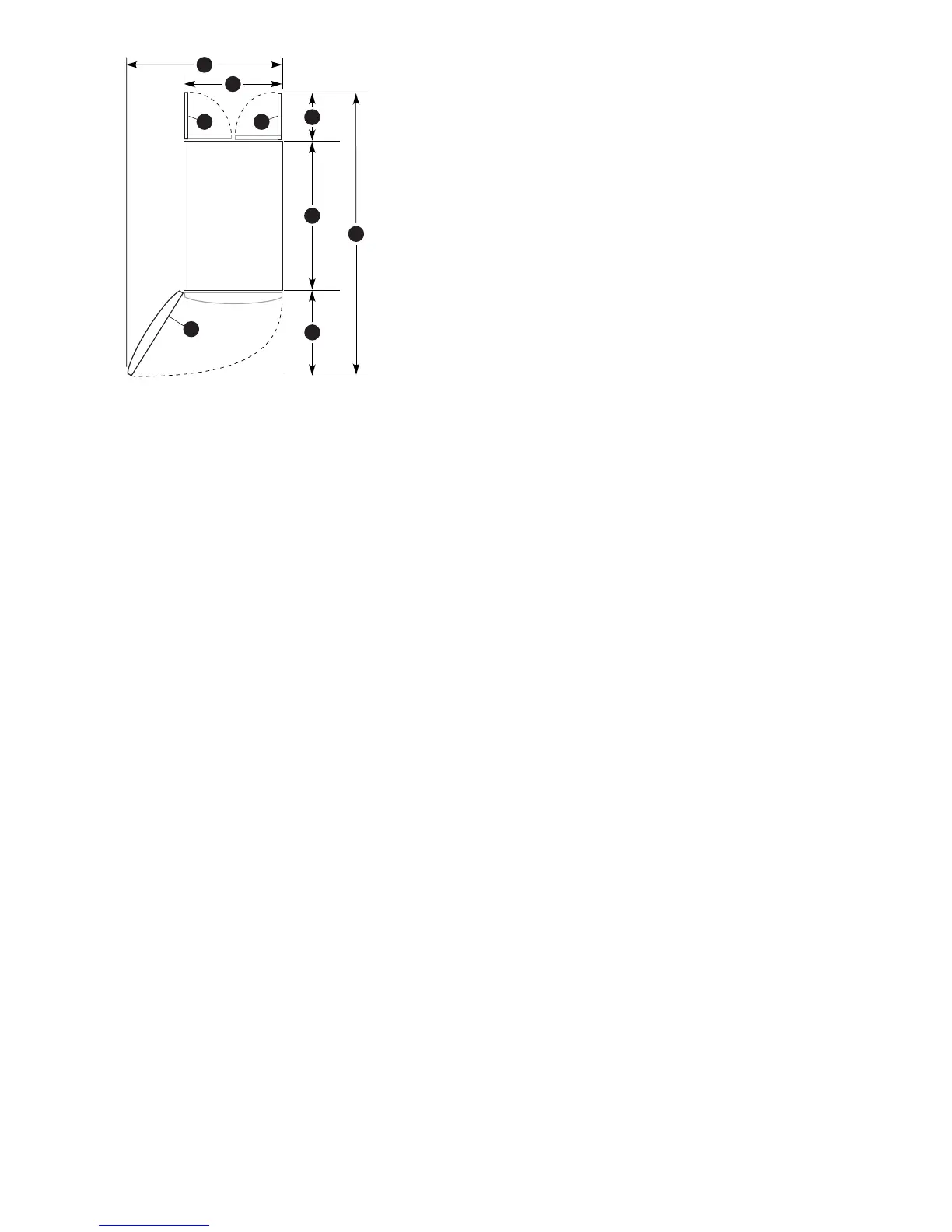

5. Rear service area depth 300 mm1. Front door
6. Rack depth 1000 mm2. Rear door
7. Front service area depth 406 mm3. Rack width 600 mm
8. Total rack depth 1706 mm4. Service area width 813 mm
Figure 21 Single rack configuration floor space requirements
If the feet are not fully raised, complete the following procedure:
1. Raise one foot by turning the leveler foot hex nut counterclockwise until the weight of the rack is
fully on the caster (see Figure 22).
EVA4400 hardware34
