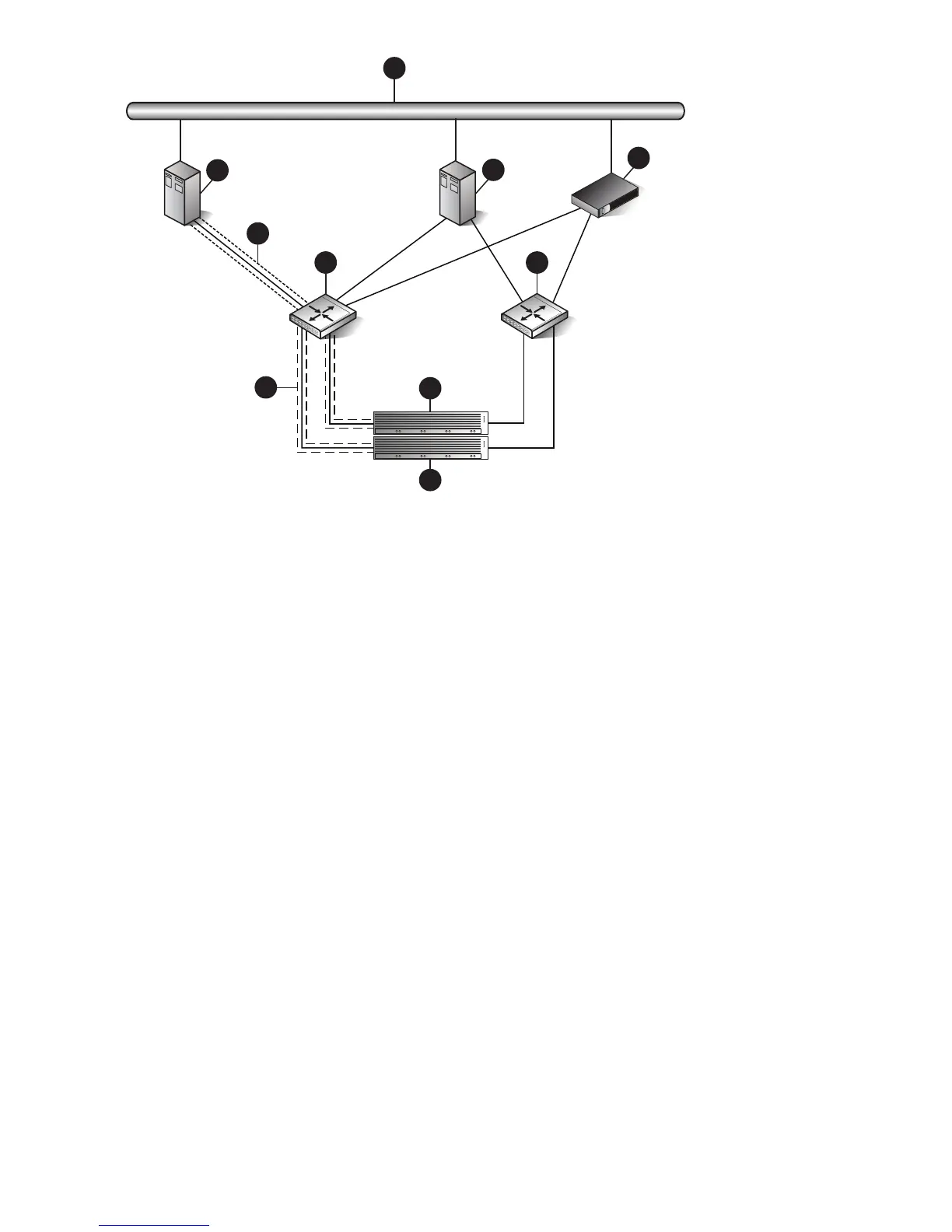

Figure 27 Single path HBA server with OpenVMS
6. SAN switch 11. Network interconnection
7. SAN switch 22. Single HBA server (Host 1)
8. Fabric zone3. Dual HBA server (Host 2)
9. Controller A4. Management server
10. Controller B5. Multiple single HBA paths
HP-UX configuration
Requirements
• Proper switch zoning must be used to ensure each single path HBA has an exclusive path to its
LUNs.
• Single path HBA server can be in the same fabric as servers with multiple HBAs.
• Single path HBA server cannot share LUNs with any other HBAs.
• In the use of snapshots and snapclones, the source virtual disk and all associated snapshots and
snapclones must be presented to the single path hosts that are zoned with the same controller. In
the case of snapclones, after the cloning process has completed and the clone becomes an ordinary
virtual disk, you may present that virtual disk as you would any other ordinary virtual disk.
HBA configuration
• Host 1 is a single path HBA host.
Single path implementation58
