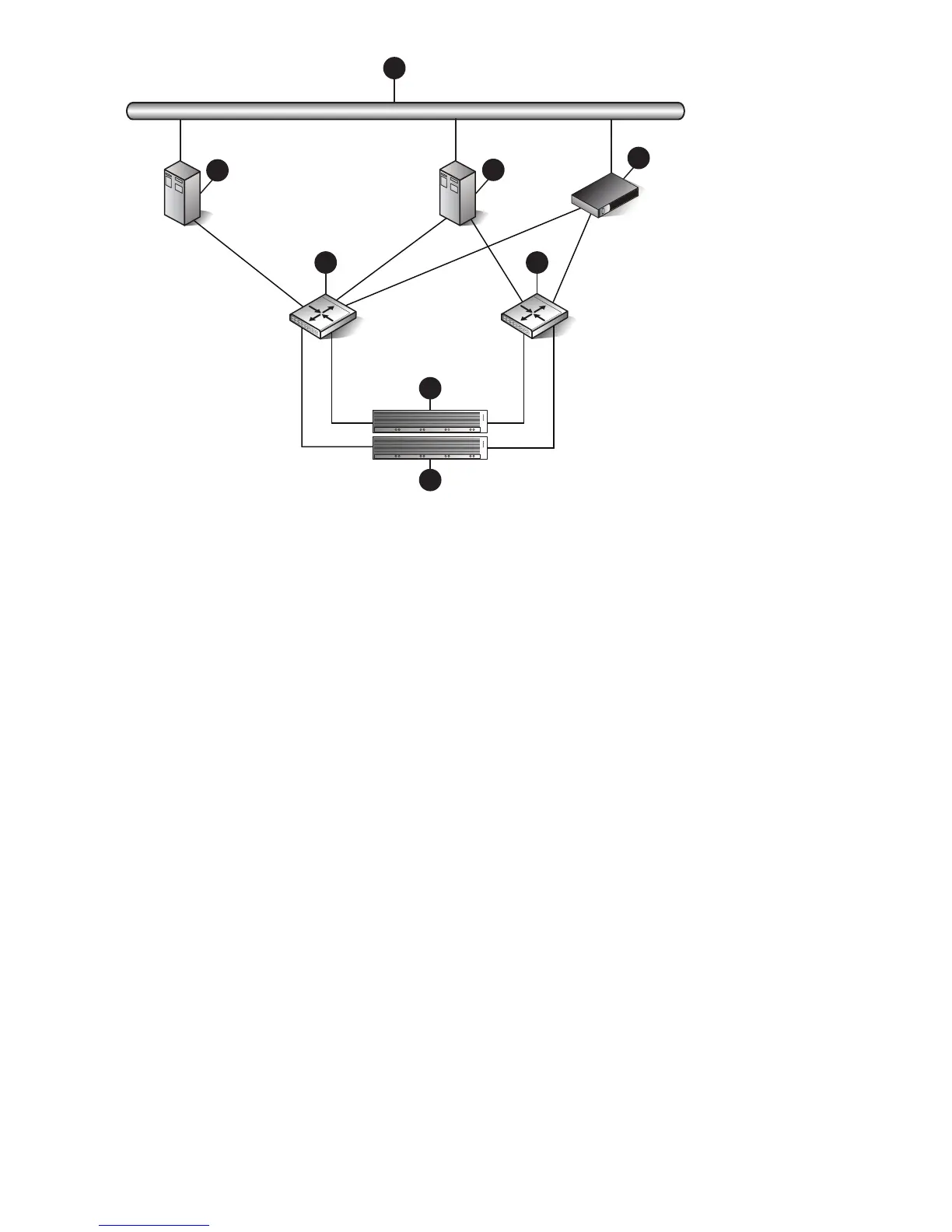

Figure 32 OpenVMS configuration
5. SAN switch 11. Network interconnection
6. SAN switch 22. Single HBA server (Host 1)
7. Controller A3. Dual HBA server (Host 2)
8. Controller B4. Management server
NetWare configuration
Requirements
• Switch zoning or controller level SSP must be used to ensure each single path HBA has an exclusive
path to its LUNs.
• Single path HBA server cannot share LUNs with any other HBAs.
HBA configuration
• Host 1 is a single path HBA host with NetWare.
• Host 2 is a dual HBA host with multipathing software.
See Figure 33.
Risks
• Single-path failure will result in a loss of connection with storage devices.
Single path implementation66
