HP StorageWorks 4400 User Manual

8
6
5
4
3
2
1
26464a
7

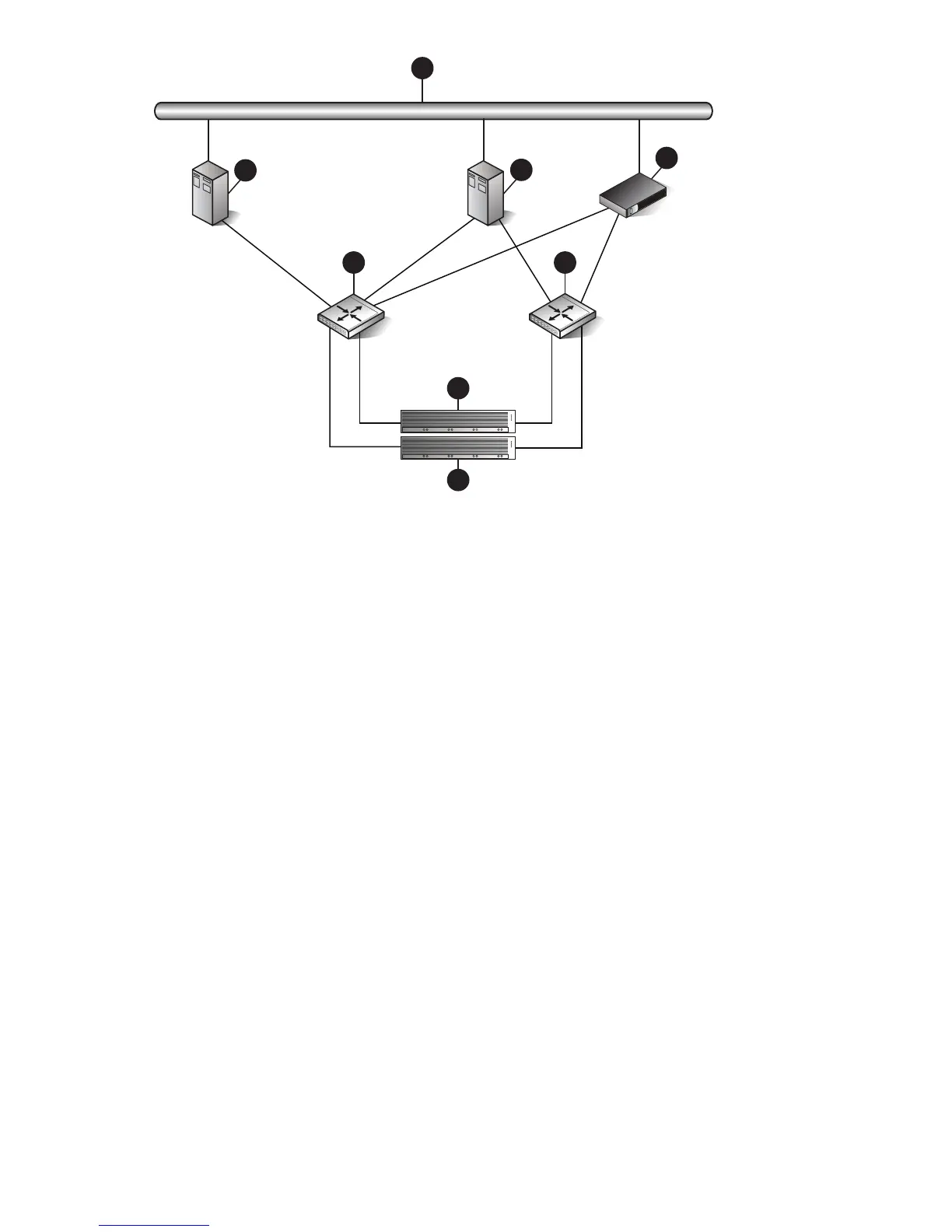

Figure 29 Windows Server 2003 (32-bit) and Windows 2000 configuration
5. SAN switch 11. Network interconnection
6. SAN switch 22. Single HBA server (Host 1)
7. Controller A3. Dual HBA server (Host 2)
8. Controller B4. Management server
Windows Server 2003 (64-bit) configuration
Requirements
• Switch zoning or controller level SSP must be used to ensure each single path HBA has an exclusive
path to its LUNs.
• Single path HBA server can be in the same fabric as servers with multiple HBAs.
• Single path HBA server cannot share LUNs with any other HBAs.
HBA configuration
• Hosts 1 and 2 are single path HBA hosts.
• Host 3 is a multiple HBA host with multipathing software.
See Figure 30.
HP StorageWorks 4400 Enterprise Virtual Array user guide 61
