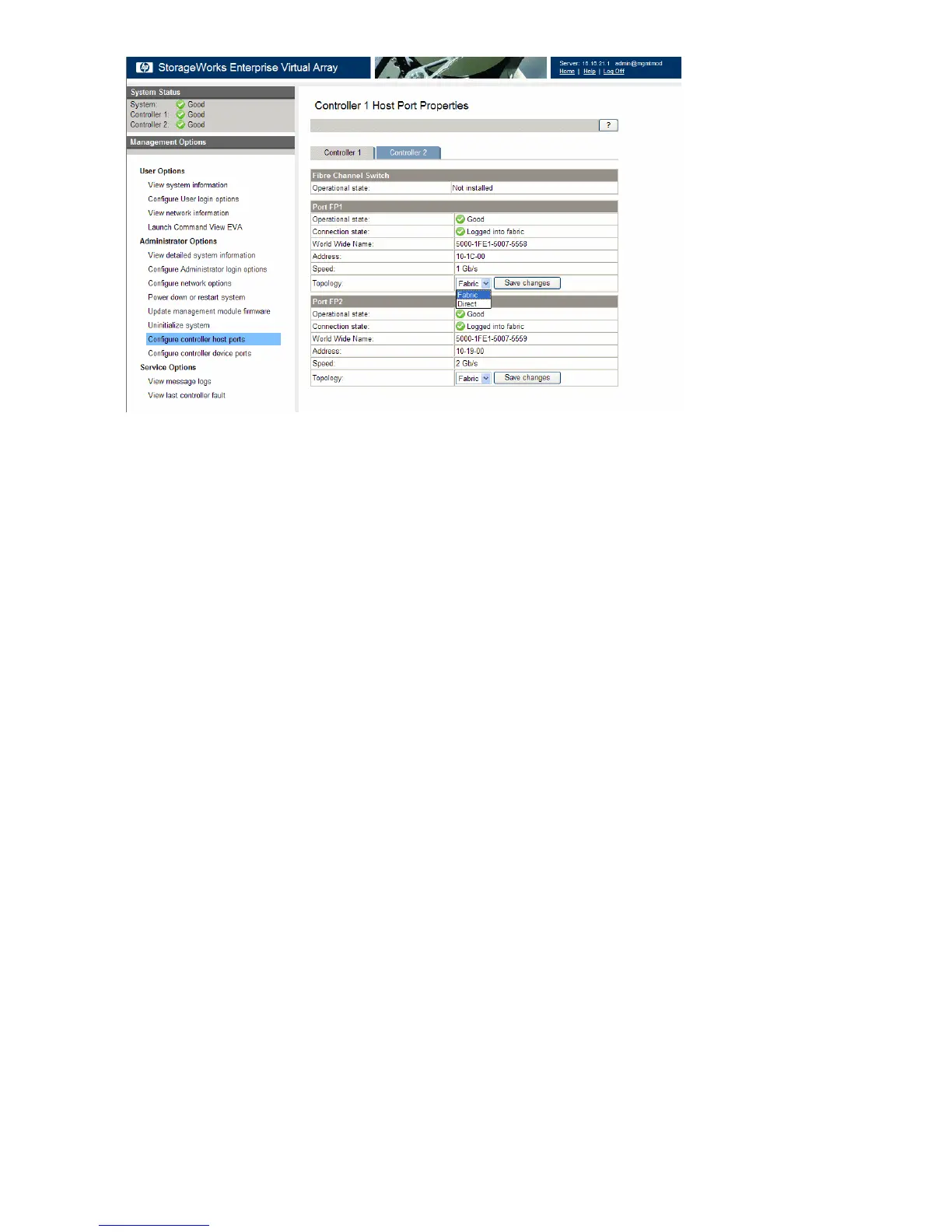

Figure 24 WOCP Configure controller host ports page
• In the Topology box, select Direct from the dropdown menu.
• Click Save Changes.
• Change the default operating mode for the other controller.
• Close the WOCP and remove the Ethernet cable from the server.
Accessing the WOCP through HP Command View EVA
1. Select the EVA4400 storage system to access.
2. Select Hardware > Controller Enclosure > Management Module.
3. Click Launch WOCP.
Rarely, the Launch WOCP button may not appear due to invalid array state or if the management
module IP address is unknown to HP Command View EVA.
Saving storage system configuration data
As part of an overall data protection strategy, storage system configuration data should be saved
during initial installation, and whenever major configuration changes are made to the storage system.
This includes adding or removing disk drives, creating or deleting disk groups, and adding or deleting
virtual disks. The saved configuration data can save substantial time if re-initializing the storage system
becomes necessary. The configuration data is saved to a series of files, which should be stored in a
location other than on the storage system.
You can perform this procedure from the management server where HP Command View EVA is
installed from any host running HP StorageWorks Storage System Scripting Utility (called the utility)
and connected to the management server.
EVA4400 operation44
