9. Enclosure power push button1. Power supply 1
10. Power supply 22. HSV300 controller 1
11. Host ports, FP1, FP2, connection to front end (host or SAN)3. Management module status LEDs
12. DP1–A port, back-end connection to A loop4. Ethernet port
13. DP1–B port, back-end connection to B loop5. Management module
14. Manufacturing diagnostic port6. HSV300 controller 2
15. HSV300 controller status and fault LEDs7. Rear UID push button
8. Enclosure status LEDs

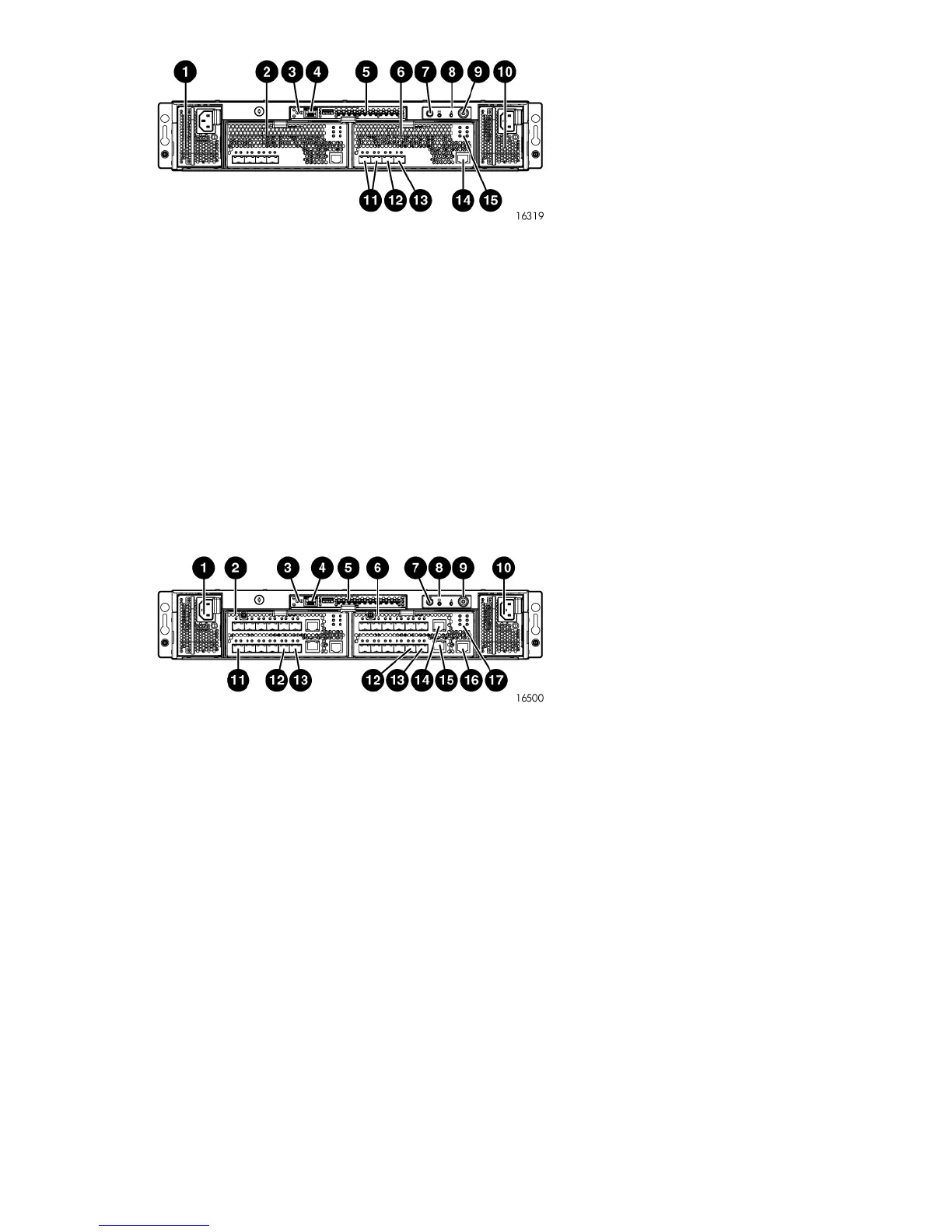

Figure 11 HSV300 controller enclosure (back view)
10. Power supply 21. Power supply 1
11. Switch ports, 1, 2, ... up to 10 for connection to front end
(switch or SAN)
2. HSV300–S controller 1
12. DPI-A port, back-end connection to A loop3. Management module status LEDs
13. DPI-B port, back-end connection to B loop4. Ethernet port
14. Console port (switch management), upper connection5. Management module
15. Ethernet port (switch management)6. HSV300–S controller 2
16. Manufacturing diagnostic port7. Rear UID push button
17. HSV300–S controller status and fault LEDs8. Enclosure status LEDs
9. Enclosure power push button
Figure 12 HSV300-S controller enclosure (back view)
HP StorageWorks 4400 Enterprise Virtual Array user guide 23
