HP StorageWorks Simple SAN Connection Manager User Guide 131

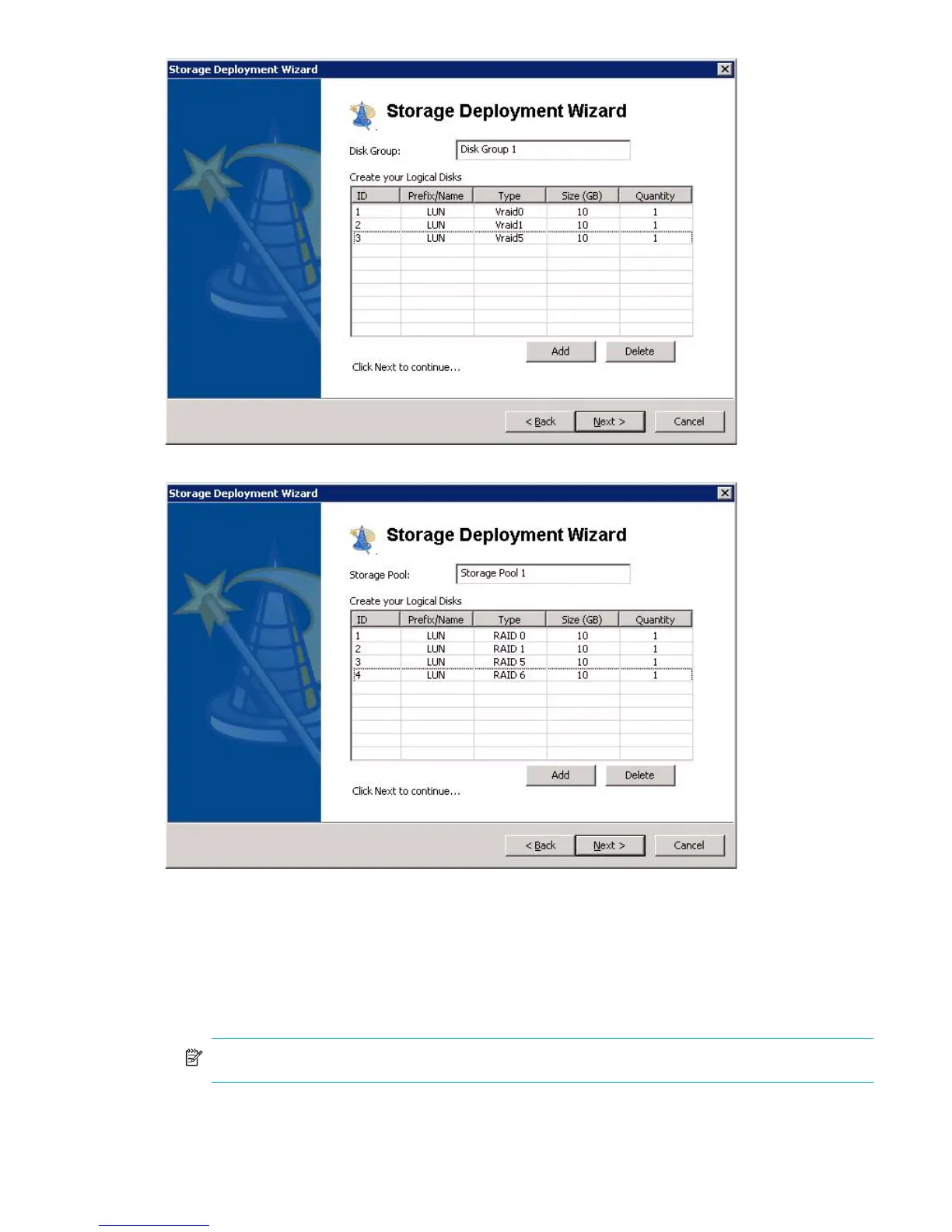

Figure 102 Storage Deployment wizard: create logical disks for EVA (custom deployment)
Figure 103 Storage Deployment wizard: create logical disks for MSA (custom deployment)
5. On the Create Your Logical Disks wizard window, create one or more logical disks—for the disk group
or storage pool name shown in either the Disk Group or Storage Pool box—as follows:
a. Under Prefix/Name, enter a logical disk name (up to 32 characters, including alphanumerics,
underscores, and hyphens; do not enter spaces or special characters).
b. Under Type, select a Vraid (for EVA) or RAID (for MSA) type from the list of applicable types for the
subsystem. (For an explanation of the Vraid types, see the ”Glossary”.)
NOTE: On MSA 2000 family subsystems, you can create only one RAID type per storage pool.
c. Under Size (GB), enter the disk capacity in gigabytes.
d. Under Quantity, enter the number of LUNs allowed in this disk group or storage pool.
