HP StorageWorks Simple SAN Connection Manager User Guide 45
4 Viewing maps, events, and configurations
This chapter provides procedures that describe the following options:
• “Viewing a Physical Connection map,” page 45
• “Viewing a LUN Assignment map,” page 46
• “Viewing the event log,” page 47
• “Saving and comparing SAN configurations,” page 48
Viewing a Physical Connection map
Simple SAN Connection Manager provides a graphical representation of physical connections among the
storage subsystems, switches, and HBAs within the SAN. This graphical representation is the Physical
Connection map shown in the content pane (see Figure 21).
Description of a Physical Connection map
The Physical Connection map (Figure 21) uses blue lines to designate the physical connections between
devices in the SAN.

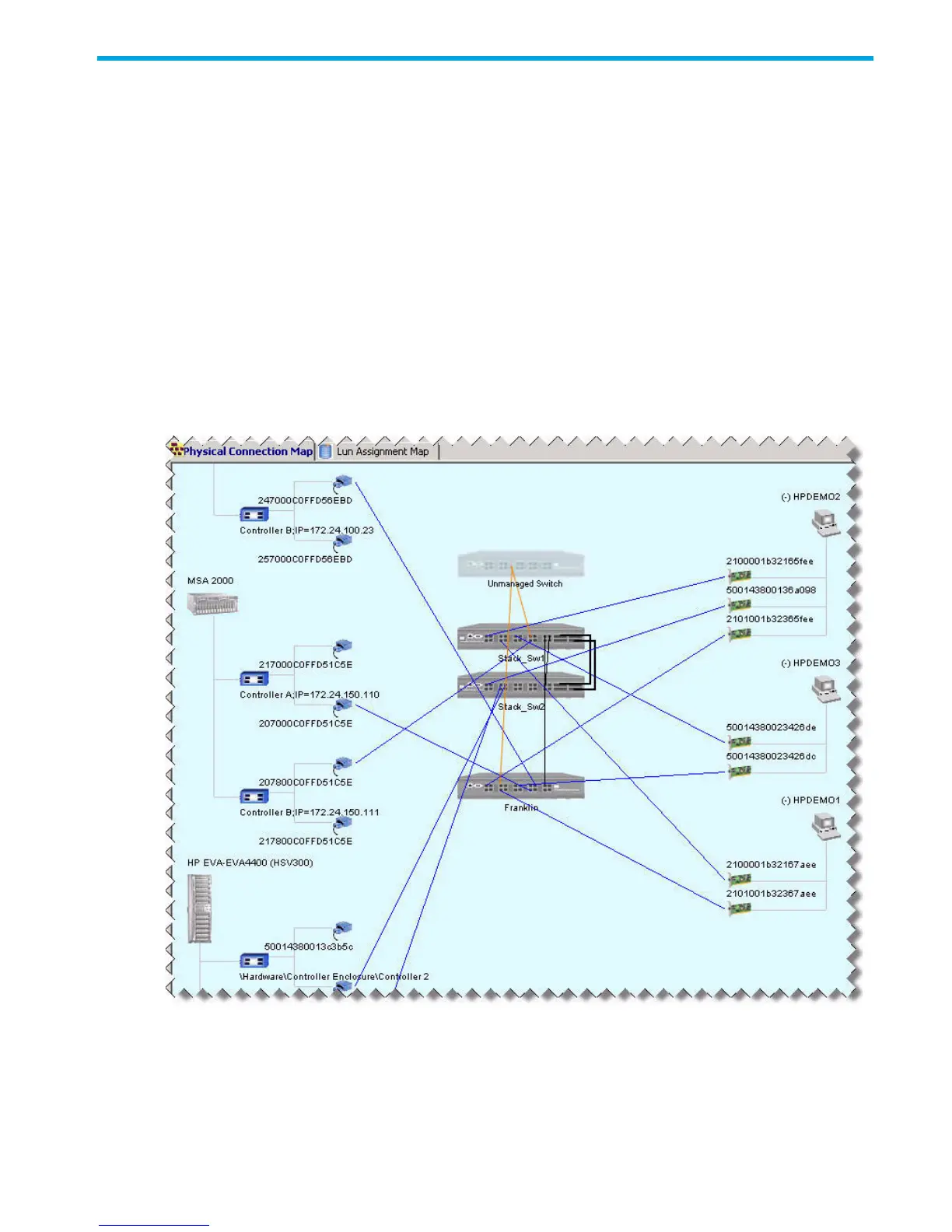

Figure 21 Physical Connection map
The map shows the following components:
• Switches:
• A black line between switches indicates an inter-switch link (ISL).
• A grayed-out switch on the map indicates a remote fabric (Brocade or Cisco fabric that may contain
multiple switches) connected by means of an active TR_Port.
