46 Viewing maps, events, and configurations
• An orange line (or lines) from the SN6000 Fibre Channel Switch or 8/20q Fibre Channel Switch to
a grayed-out switch indicates a connection between an active TR_Port and the remote fabric, but
appears only if the switch has been configured with Inter-Fabric Zones (IFZs). For more information,
see “About transparent routing” on page 51.
• Servers
• HBAs
• Storage subsystems
• Storage subsystem controllers
• Storage subsystem controller’s ports
NOTE: The information presented is read-only. You can right-click any of the icons representing switches,
HBAs, servers, and subsystems to open a shortcut menu for that component.
How to view a Physical Connection map
To view a physical connection map:
1. In the navigation pane, click on the root of the navigation pane:
• If the navigation pane displays the Storage Subsystem - Logical Disk View, the root is called
Subsystem - Logical Disk.
• If the navigation pane displays the Server - Storage View, the root is called Server - Logical Disk.
2. The content pane shows a topology map. If the map displayed is LUN Assignment map, click the
Physical Connection Map tab to bring that map forward.
Viewing a LUN Assignment map
Simple SAN Connection Manager provides a graphical representation for the access to logical disks from
the HBAs and servers within the SAN. This graphical representation is the LUN Assignment map shown in
the content pane (see Figure 22).
Description of a LUN Assignment map
The LUN Assignment map (Figure 22) shows the actual access link between the HBAs and servers to the
subsystems’ logical disks. The blue lines indicate that the HBAs or servers are allowed to have access to the
logical disk.

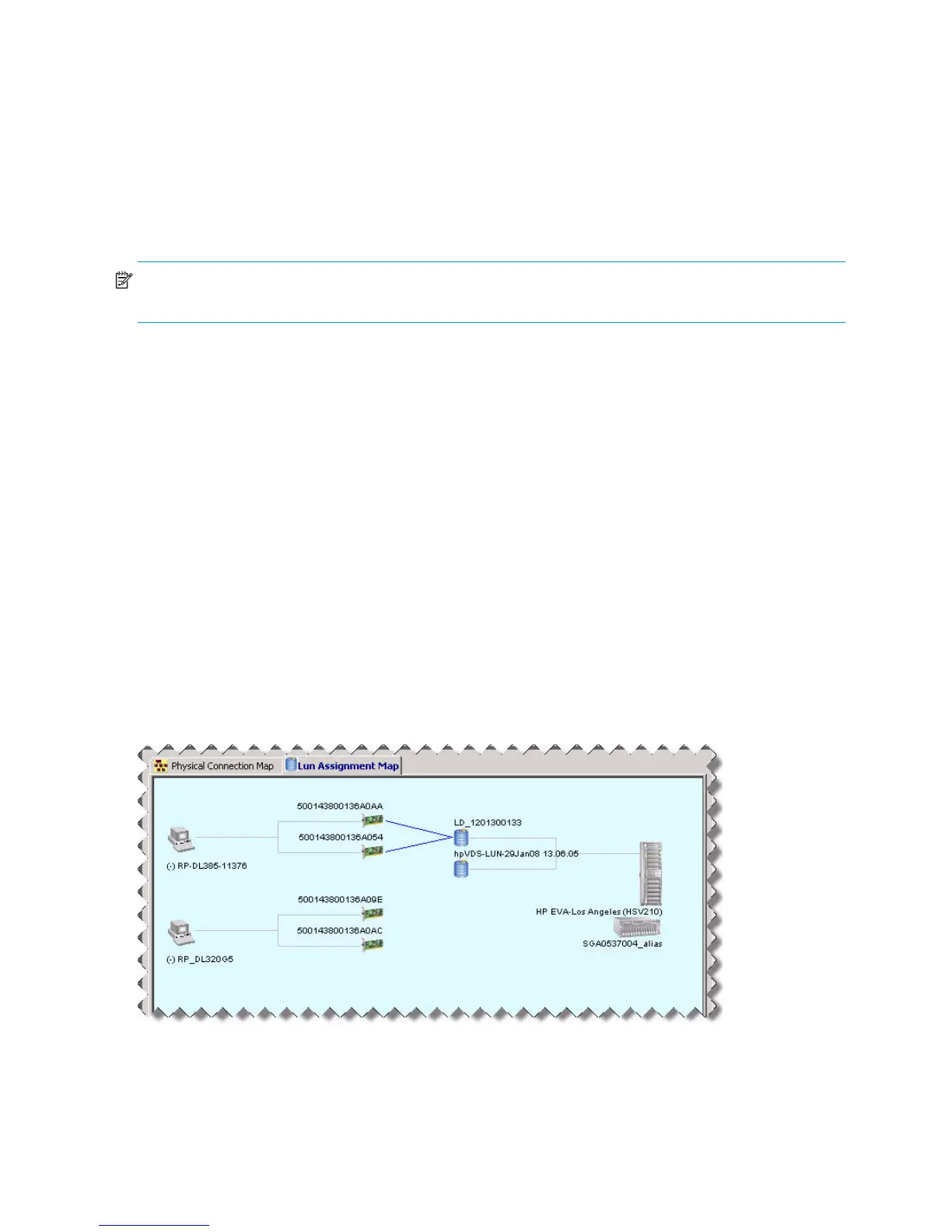

Figure 22 LUN Assignment map
The map shows the following components:
• Storage subsystems
• LUNs
