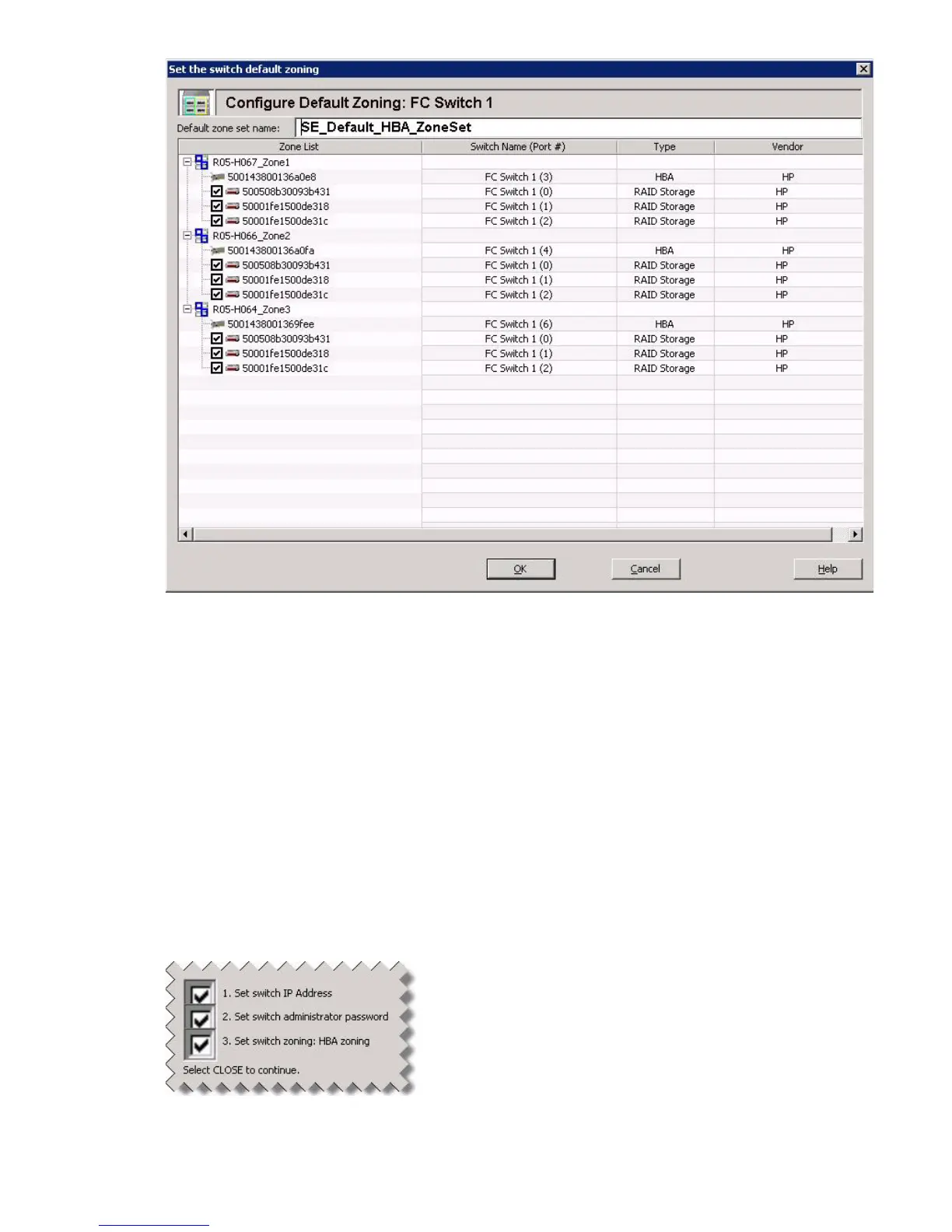

Figure 17 Set the Switch Default Zoning dialog box: new switch setup
The Set the Switch Default Zoning dialog box contains the following information:
• Default zone set name—Shows the default name for the current switch zoning configuration.
• Zone List—Shows the existing HBA zones with its HBA adapter and devices. If a zone list is closed
(the Switch Port #, Type, and Vendor information is hidden), click the plus mark (+) to open it.
• Switch Name (Port #)—Indicates the switch name and port number for each HBA and device.
• Type—Indicates the kind of device; for example, HBA or RAID storage.
• Vendor—Indicates the seller for the hardware indicated.
11. Complete the Set the Switch Default Zoning dialog box as follows:
a. In the Default zone set name box, enter a new name for your configuration.
b. To exclude a storage port from the zone, clear the check box next to the port name. To include a
storage port in the zone, select the check box next to it.
c. To save the new switch default zoning setup, click OK. To stop the switch zoning changes, click
Cancel.
The New Switch Setup dialog box now shows a check mark next to the third step, “Set switch
administrator password,” (Figure 18) indicating that you have completed that task.
Figure 18 Third step of New Switch Setup completed
12. Click Close to close the New Switch Setup dialog box for this switch.
