52 Managing switches
• Firmware Version
• Operational State

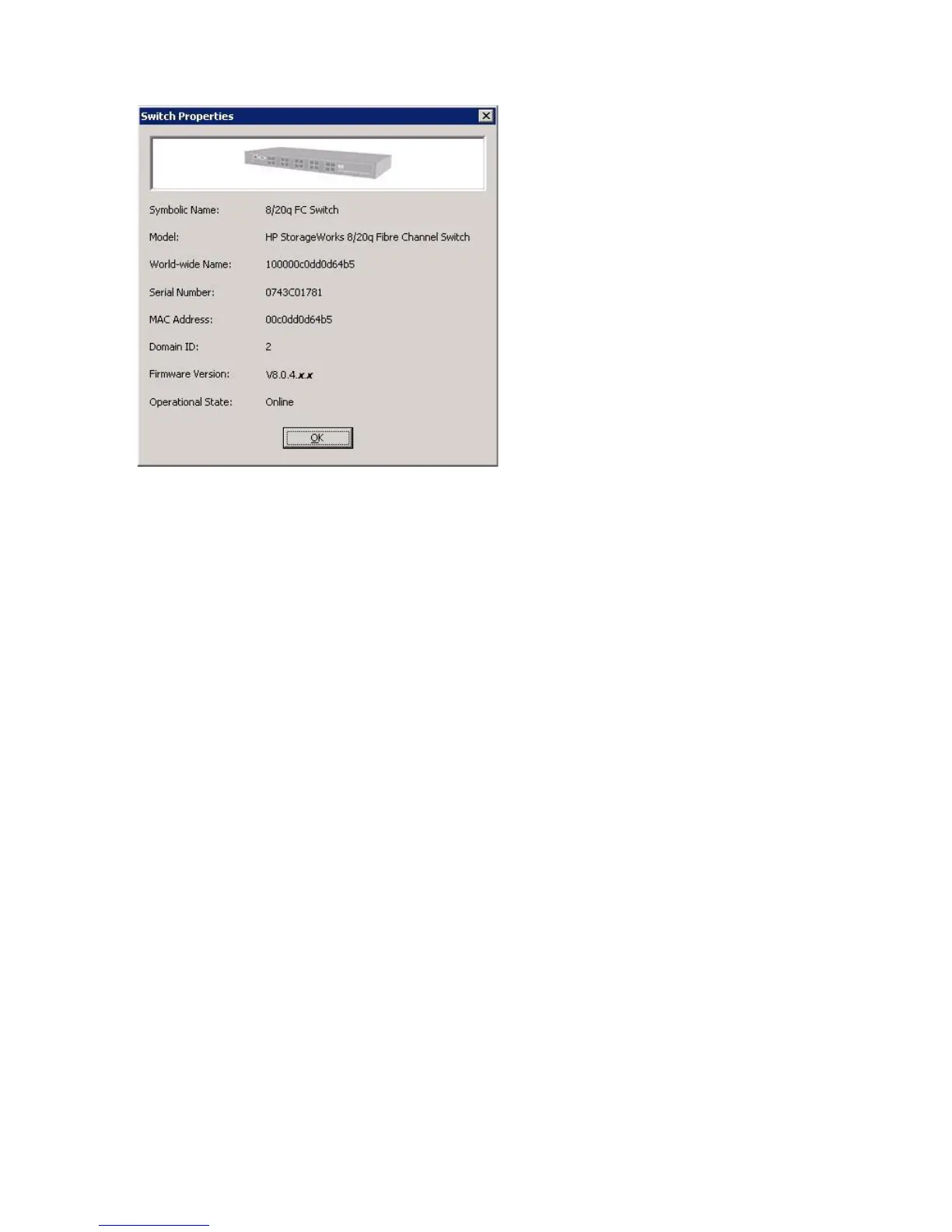

Figure 25 Switch Properties
How to view switch properties
To view switch properties:
1. To access the switch properties, choose one of the following options:
• On the HBA & Switch Management menu, click Get Switch Properties. If there is only one switch in
your SAN, it’s properties appear. If there is more than one switch, the Switch Selection dialog box
opens; continue with step 2.
• On the content pane’s Physical Connection map, right-click the switch icon, and on the shortcut
menu, click Get Switch Properties.
2. If the Switch Selection dialog box opens, select the switch you want to view.
3. When you finish viewing the switch properties, click OK to close the dialog box.
Viewing network properties
Simple SAN Connection Manager provides a quick and easy way to view properties related to your
storage area network.
Description of the network properties
The Network Properties (Figure 26) include the following read-only information:
• IPv4 network settings: Enabled, Address, Subnet Mask, and Gateway
• IPv6 network settings: Enabled, Address, Gateway, and Assigned Addresses
• SNMP Enabled
• Broadcast Support Enabled
• DNS Enabled
• Configured Local Hostname (if any)
• Assigned Local Hostname (if any)
