HP StorageWorks Simple SAN Connection Manager User Guide 49
NOTE: Simple SAN Connection Manager automatically saves the current configuration when you close
the application.
Comparing configurations
Simple SAN Connection Manager provides the ability to compare any changes to your current SAN with
the previous configuration.
To compare a configuration:
1. On the File menu, click Compare current and previous SAN connection.
The Compare Current and Previous Configuration dialog box (Figure 24) opens.

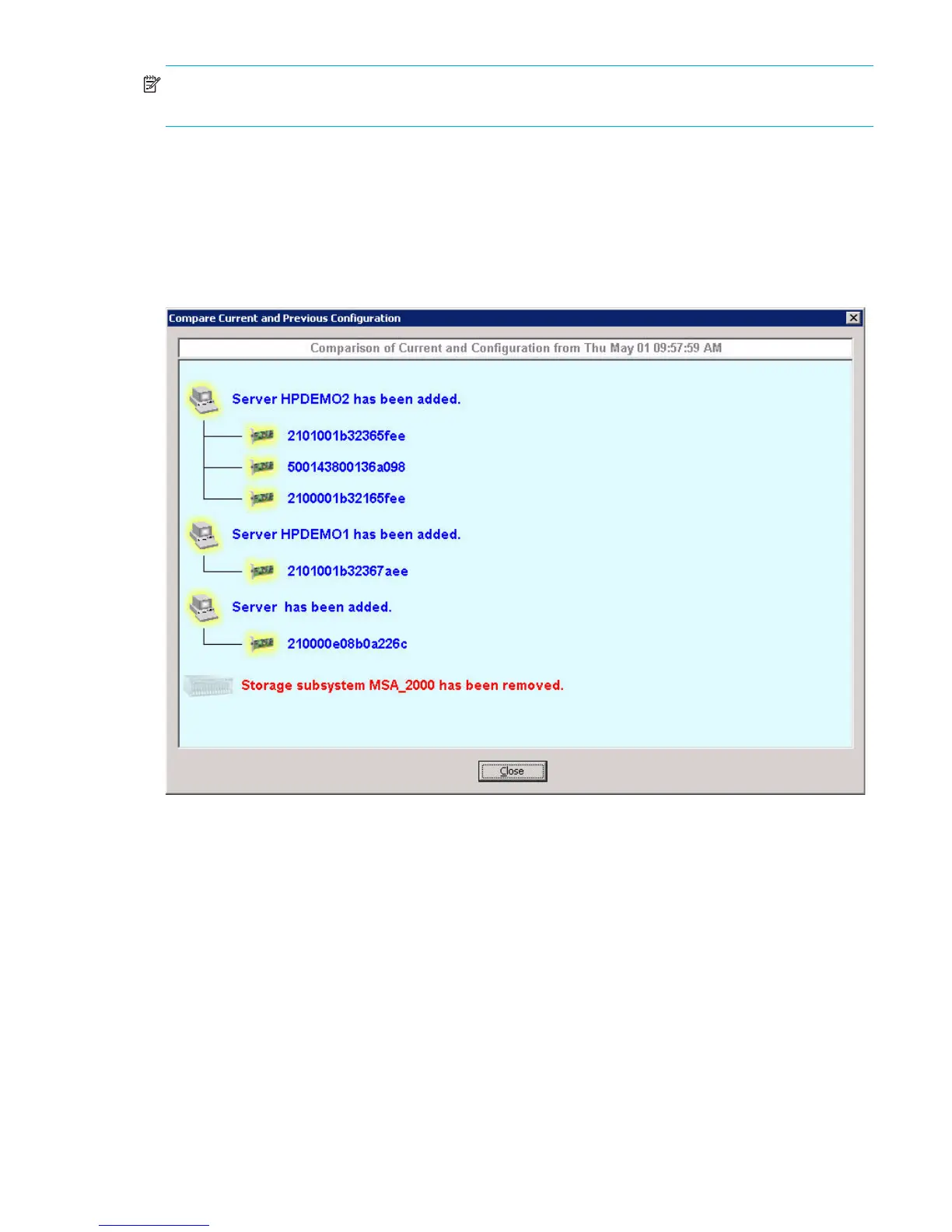

Figure 24 Compare Current and Previous Configuration dialog box
This dialog box shows a graphical representation listing:
• Removed servers
• New servers
• New HBAs
• Removed switch(es)
• New switch(es)
• Removed storage subsystem(s)
• New storage subsystem(s)
2. When you finish reviewing the dialog box, click Close.
