72 Managing switches
Creating an IPsec policy
To create an IPsec policy:
1. On the HBA & Switch Management menu, click Set Switch IPsec Information. (If you have more than
one switch in your SAN, the Switch Selection dialog box prompts you to select a switch, and then click
OK.)
The IPsec Configuration dialog box opens (Figure 40) and lists the existing IPsec Associations on the left
and the existing IPsec Policies on the right.

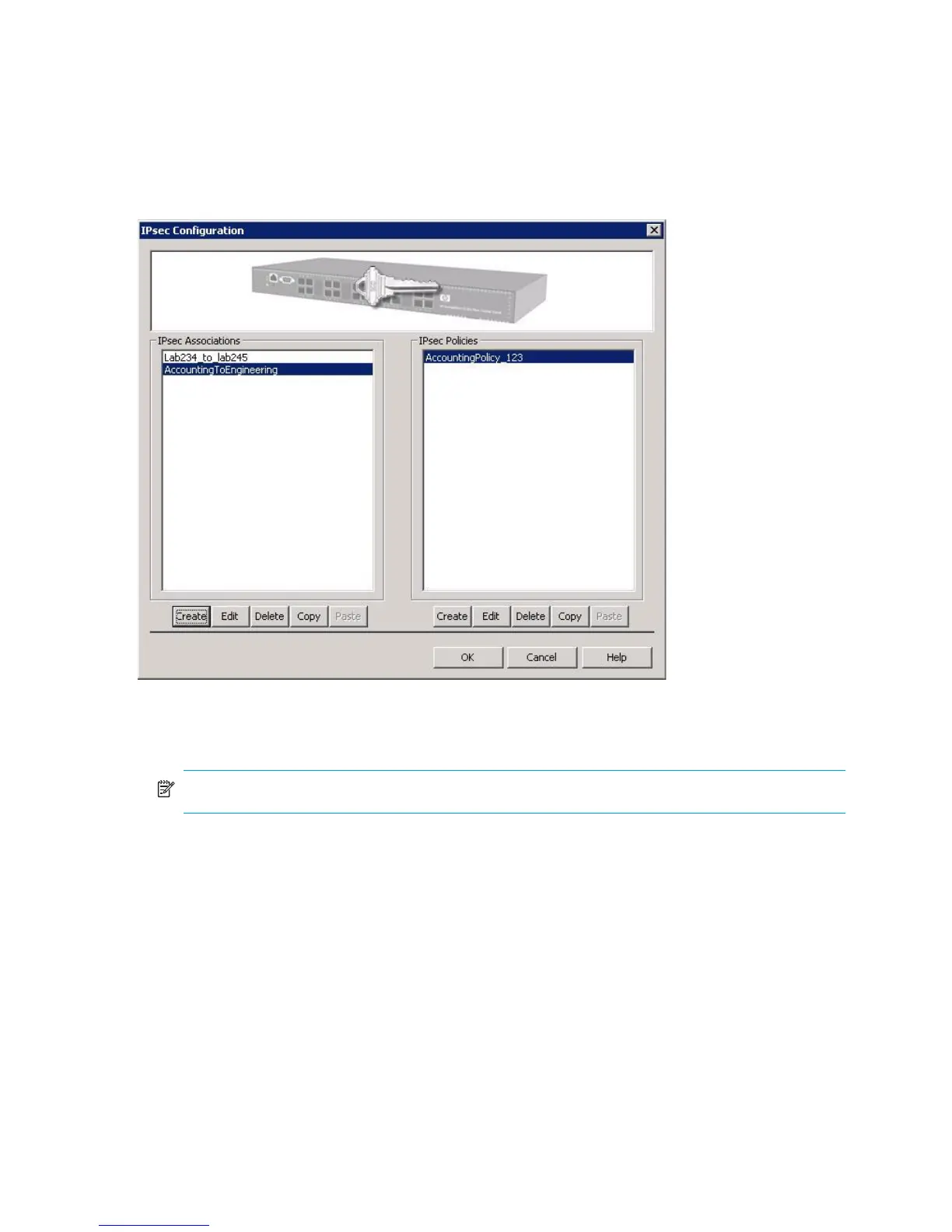

Figure 40 IPsec Configuration dialog box
2. Under IPsec Policies, click Create.
The IPsec Policy dialog box opens (Figure 41). You must complete all fields prefaced by a red asterisk.
NOTE: Simple SAN Connection Manager allows you to create a maximum of 128 IPsec policies.
