External Storage XP user guide 123
HP recommends defining Vdisk settings so the number of Vdisks presented to the XP is balanced between
the two EVA controllers and across controller ports.

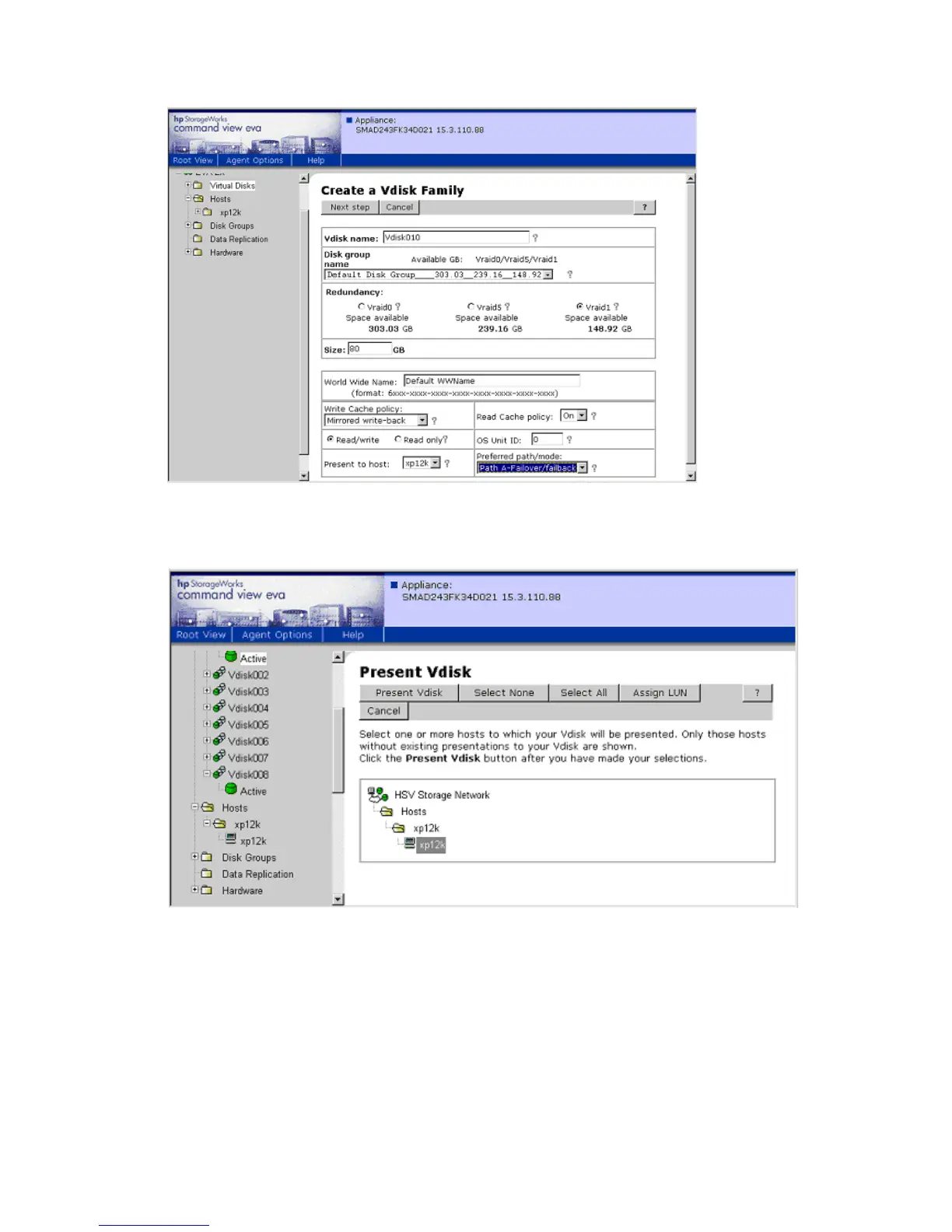

Figure 58 Selecting Vdisk’s Preferred path/mode
After EVA Vdisks are created, they can be assigned to the previously defined XP12000 host object;
thereby presenting them to the XP12000. Figure 59 illustrates this step.
Figure 59 Presenting Vdisks
Defining XP12000 external ports
For the XP12000 to access and use storage present on the EVA disk array, EVA-attached XP12000 ports
must be functionally redefined as dedicated external storage fibre channel ports. Use Command View XP
or XP Remote Web Console to define these EVA-connected XP12000 ports to external ports. On the Port
