60 External Storage XP for the XP12000/XP10000
If an error occurs, the failed setting and an error code appears in the Preset list.

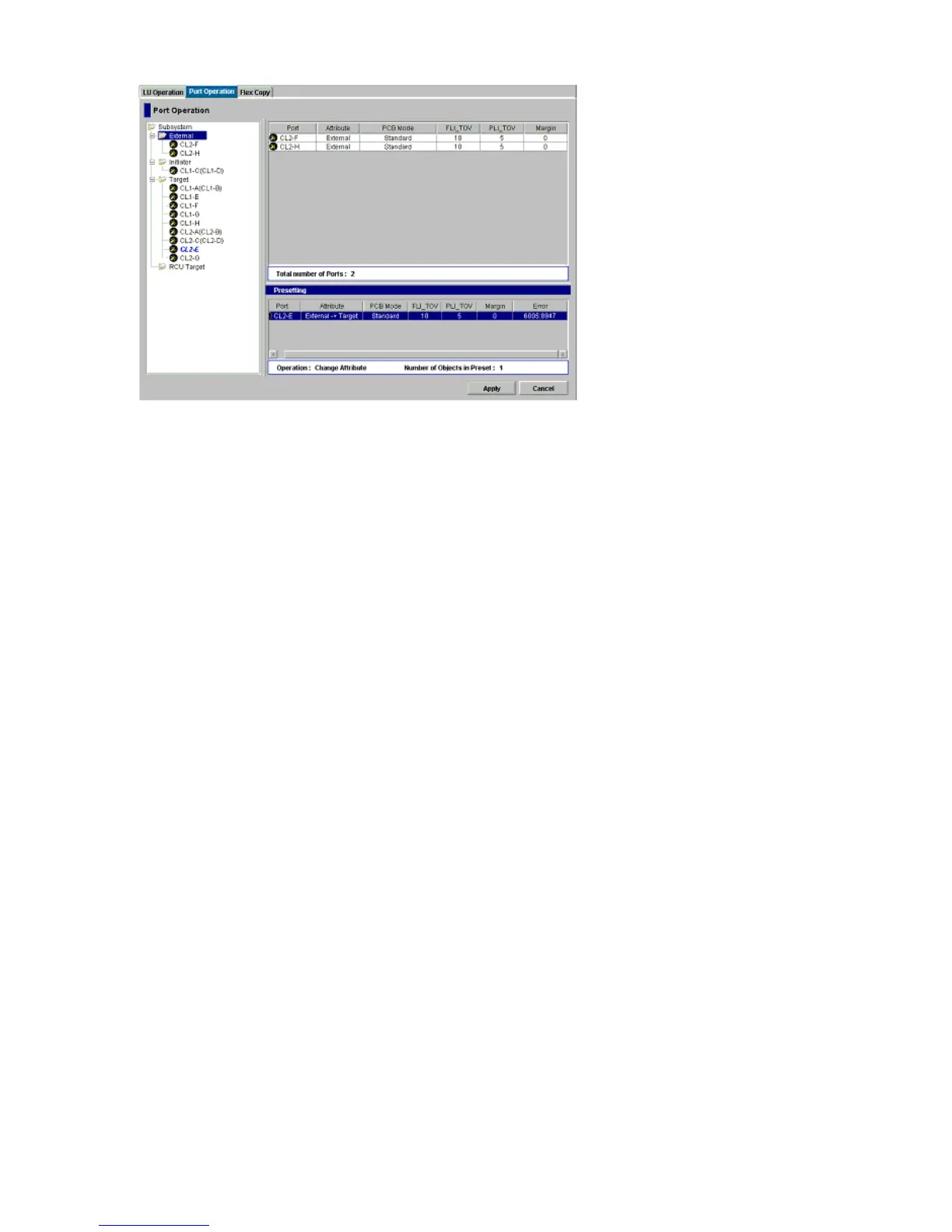

Figure 30 Error when changing port attribute
To view error messages, right-click the failed row, and select Detail.
6. Set the topology for the connection configuration.
When an FC switch is connected, set Fabric to Enable. When a switch is not connected, set Fabric to
Disable, and specify FC-AL. Set Connection according to the actual connection configuration. For more
information about setting the topology, see the HP StorageWorks LUN Configuration and Security
Manager XP user guide for the XP12000/XP10000.
7. Set the channel transfer speed to Auto Negotiation.
Mapping external LUs (Add LU)
After setting the port used for External Storage XP to External, map the external LU as an internal XP LDEV.
If you mapped the external LU and previously set the VMA of LUN Security XP Extension in that volume, the
former VMA setting is overwritten when you map the volume again. However, if LUN Security XP Extension
is not installed when you remap the volume, the volume with the VMA setting cannot be mapped.
The following are the mapping operations:
• ”Mapping external LUs individually (Add LU)” on page 60
• ”Mapping multiple external LUs at one time (Add LU (Auto))” on page 68
• ”Displaying detailed information stored in VMA (VMA information)” on page 73
Mapping external LUs individually (Add LU)
This section describes mapping operations starting with the Add LU command. Use the Add LU (Figure 31),
Select Paths (Figure 32), SSID (Figure 35), and Set SSID (Figure 36) panes for mapping external LUs
individually.
