External Storage XP user guide 93
If errors occur, failed settings and error codes appear in the Preset list. To check error messages,
right-click the failed setting, and select Detail.
Remote command devices
This section describes remote command devices as follows:
• ”Outline of remote command devices” on page 93
• ”Notices about remote command devices” on page 93
• ”Mapping command devices as remote command devices” on page 95
Outline of remote command devices
A remote command device is a device in the local disk array to which a command device in the external
disk array is mapped.
As you send RAID Manager commands to a remote command device located in the local disk array, you
can execute those commands on the external disk array’s command device to manage pairs in the external
disk array.
Figure 48 shows an example. The OPEN host connected to the local disk array sends RAID Manager
commands for Business Copy XP or Continuous Access XP to the remote command device. This means
commands are forwarded to the command device in the external disk array to operate Business Copy XP
or Continuous Access XP pairs in the external disk array.
For more information about RAID Manager and command devices, see the HP StorageWorks RAID
Manager XP User’s Guide.

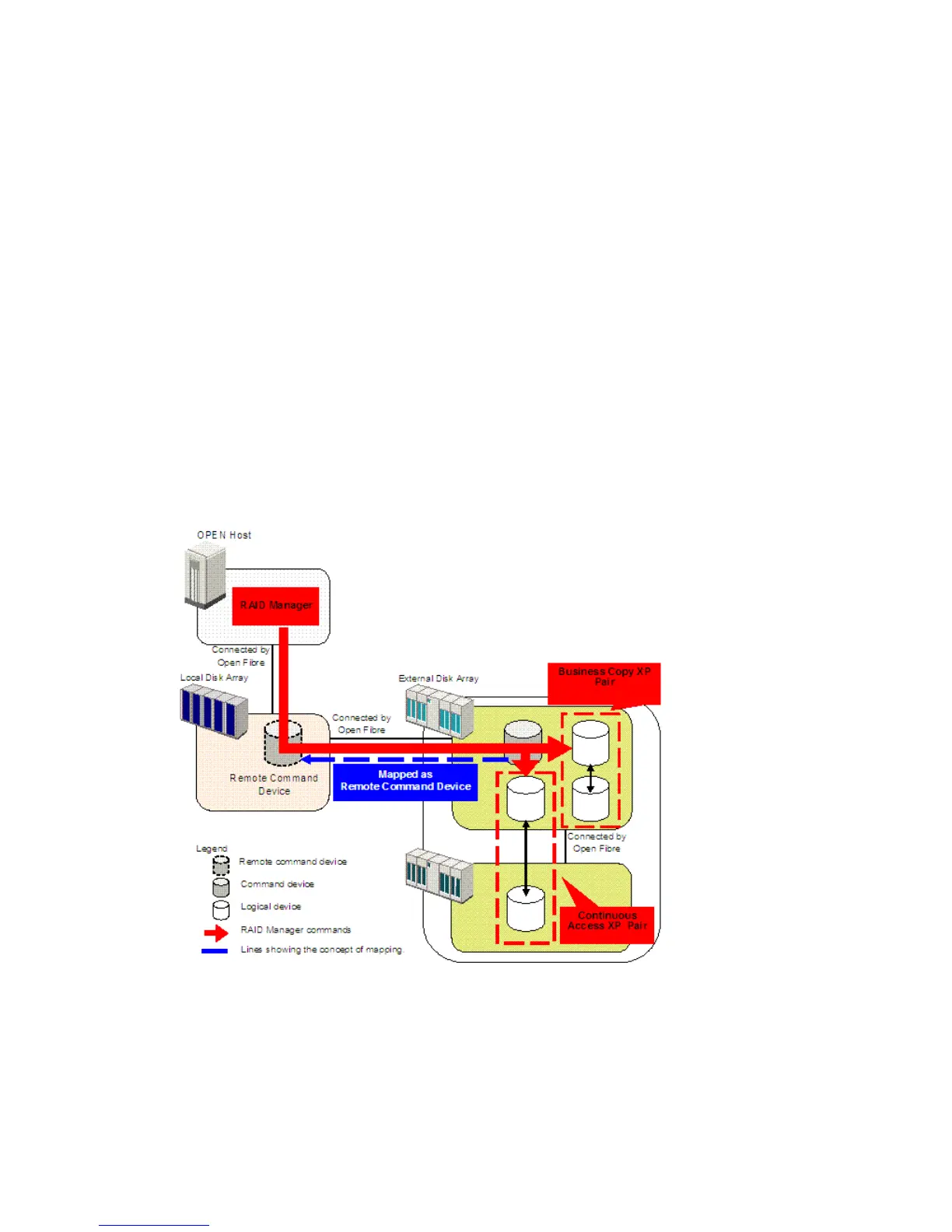

Figure 48 Outline of remote command device
Notices about remote command devices
• You can map command devices as remote command devices when one of the following disk arrays is
connected as an external disk array:
• XP12000 disk array
• XP10000 disk array
• XP1024/XP128 disk array
