External Storage XP user guide 125
NOTE: You must select external storage LUs through the presenting controller. Failure to do so results in
new external LDEVs being placed in a blockade state shortly after a host attempts to access them.

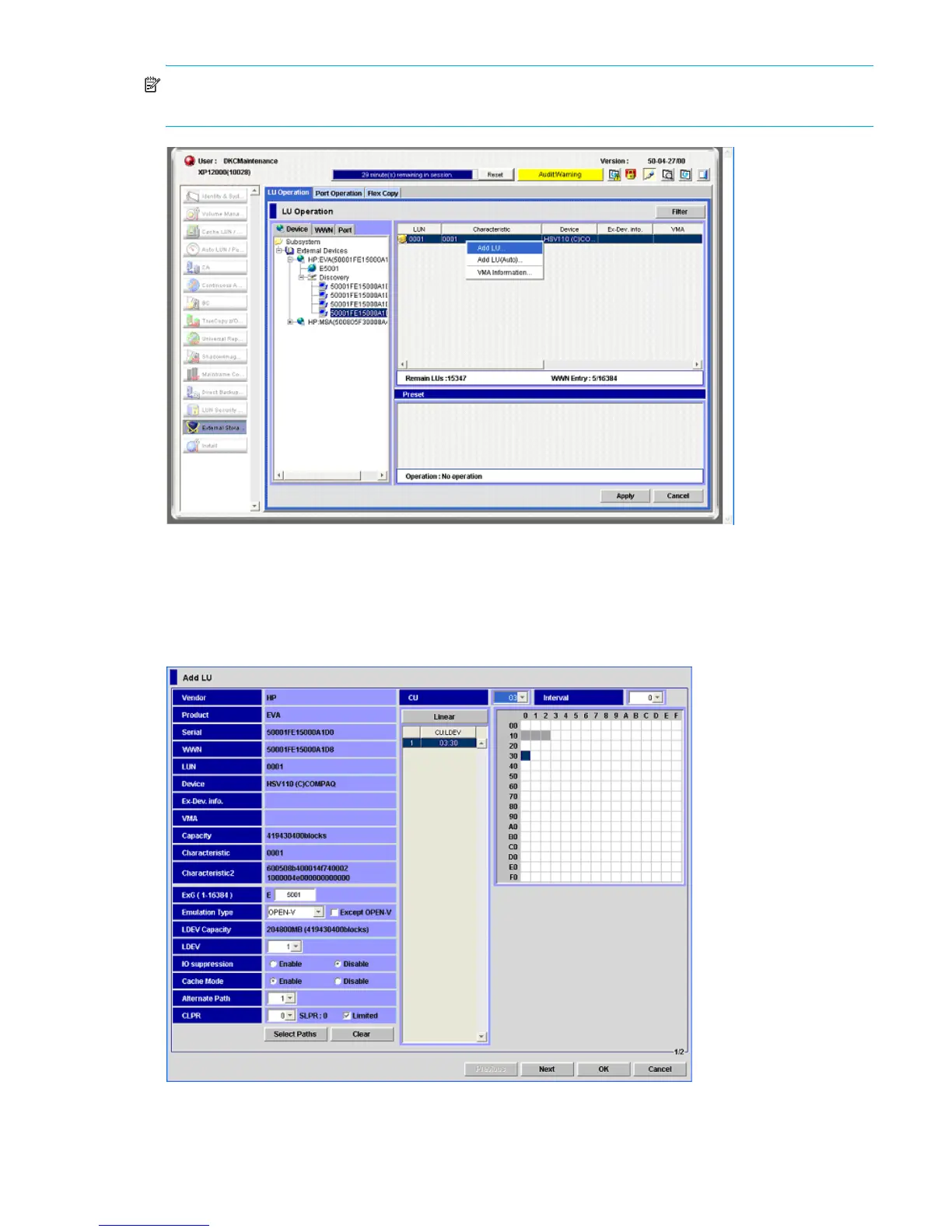

Figure 61 Selecting EVA LUs
After you select an external logical unit (LU), the Add LU pane appears. At this point, you can configure
each individual external LU by choosing options such as the emulation type, the number of LDEVs (CVS is
used), and the LU’s unique LDEV identifiers within the XP12000. Figure 62 illustrates this step. For more
information about configuring external storage LDEVs, see ”External Storage XP for the
XP12000/XP10000” on page 13.
Figure 62 XP External LDEV definition
After this step is complete and external storage LDEVs are created, these LDEVs can be presented to any
XP12000-attached host for immediate use. For more information about assigning XP12000 LDEVs to an
