HPE FlexFabric 5950 Series User Manual

98
67B
MPLS TE configuration examples
196BEstablishing an MPLS TE tunnel over a static CRLSP
400BNetwork requirements
Switch A, Switch B, and Switch C run IS-IS.
Establish an MPLS TE tunnel over a static CRLSP from Switch A to Switch C to transmit data
between the two IP networks.
The MPLS TE tunnel requires a bandwidth of 2000 kbps. The maximum bandwidth of the link that the
tunnel traverses is 10000 kbps. The maximum reservable bandwidth of the link is 5000 kbps.

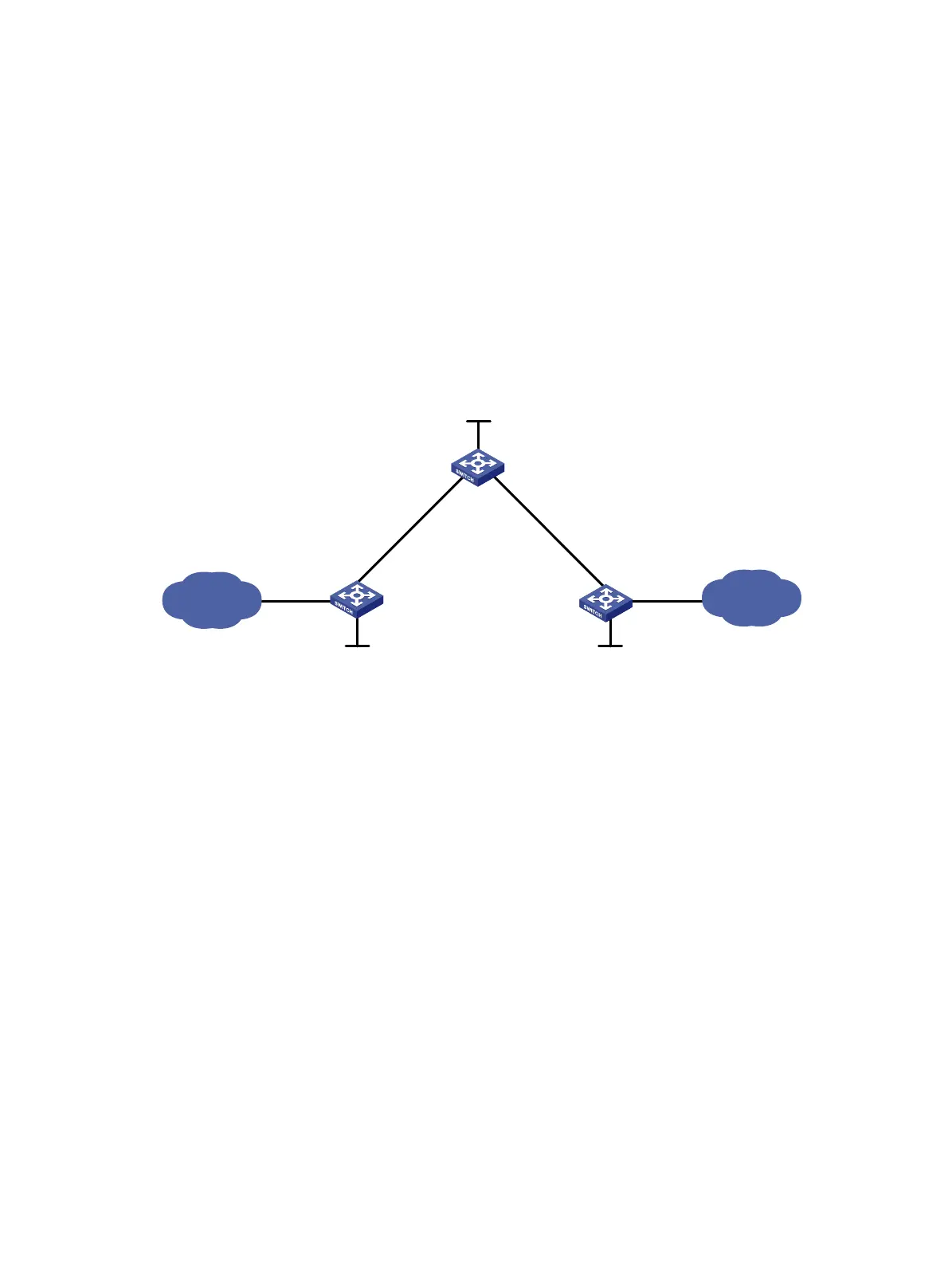

Figure 30 Network diagram
401BConfiguration procedure
1. Configure IP addresses and masks for interfaces. (Details not shown.)
2. Configure IS-IS to advertise interface addresses, including the loopback interface address:
# Configure Switch A.
<SwitchA> system-view
[SwitchA] isis 1
[SwitchA-isis-1] network-entity 00.0005.0000.0000.0001.00
[SwitchA-isis-1] quit
[SwitchA] interface vlan-interface 1
[SwitchA-Vlan-interface1] isis enable 1
[SwitchA-Vlan-interface1] quit
[SwitchA] interface loopback 0
[SwitchA-LoopBack0] isis enable 1
[SwitchA-LoopBack0] quit
# Configure Switch B.
<SwitchB> system-view
[SwitchB] isis 1
[SwitchB-isis-1] network-entity 00.0005.0000.0000.0002.00
[SwitchB-isis-1] quit
[SwitchB] interface vlan-interface 1
[SwitchB-Vlan-interface1] isis enable 1
Loop0
2.2.2.2/32
Vlan-int1
2.1.1.2/24
Vlan-int2
3.2.1.1/24
Vlan-int1
2.1.1.1/24
Vlan-int2
3.2.1.2/24
Loop0
1.1.1.1/32
Loop0
3.3.3.3/32
Switch A Switch C
Switch B
IP network
IP network
Vlan-int10
100.1.1.1/24
Vlan-int10
100.1.2.1/24
