HPE FlexFabric 5950 Series

356
NextHop : ::1 Preference: 0
Interface : InLoop0 Cost : 0
Destination: 100::/96 Protocol : BGP4+
NextHop : 10:2::1 Preference: 255
Interface : Vlan-int12 Cost : 0
Destination: 200::/96 Protocol : Static
NextHop : :: Preference: 60
Interface : NULL0 Cost : 0
Destination: FE80::/10 Protocol : Direct
NextHop : :: Preference: 0
Interface : NULL0 Cost : 0
Destination: FF00::/8 Protocol : Direct
NextHop : :: Preference: 0
Interface : NULL0 Cost : 0
# Verify that VLAN-interface 12 of CE 1 and VLAN-interface 13 of CE 2 can ping each other. (Details
not shown.)
281BConfiguring BGP AS number substitution and SoO attribute
552BNetwork requirements
CE 1, CE 2, and CE 3 belong to VPN 1, and are connected to PE1, PE 2, and PE 3. CE 1 and CE 2
reside in the same site. CE1, CE2, and CE 3 all use AS number 600.
To avoid route loss, configure BGP AS number substitution on PEs.
To avoid routing loops, configure the same SoO attribute on PE 1 and PE 2 for CE 1 and CE 2.

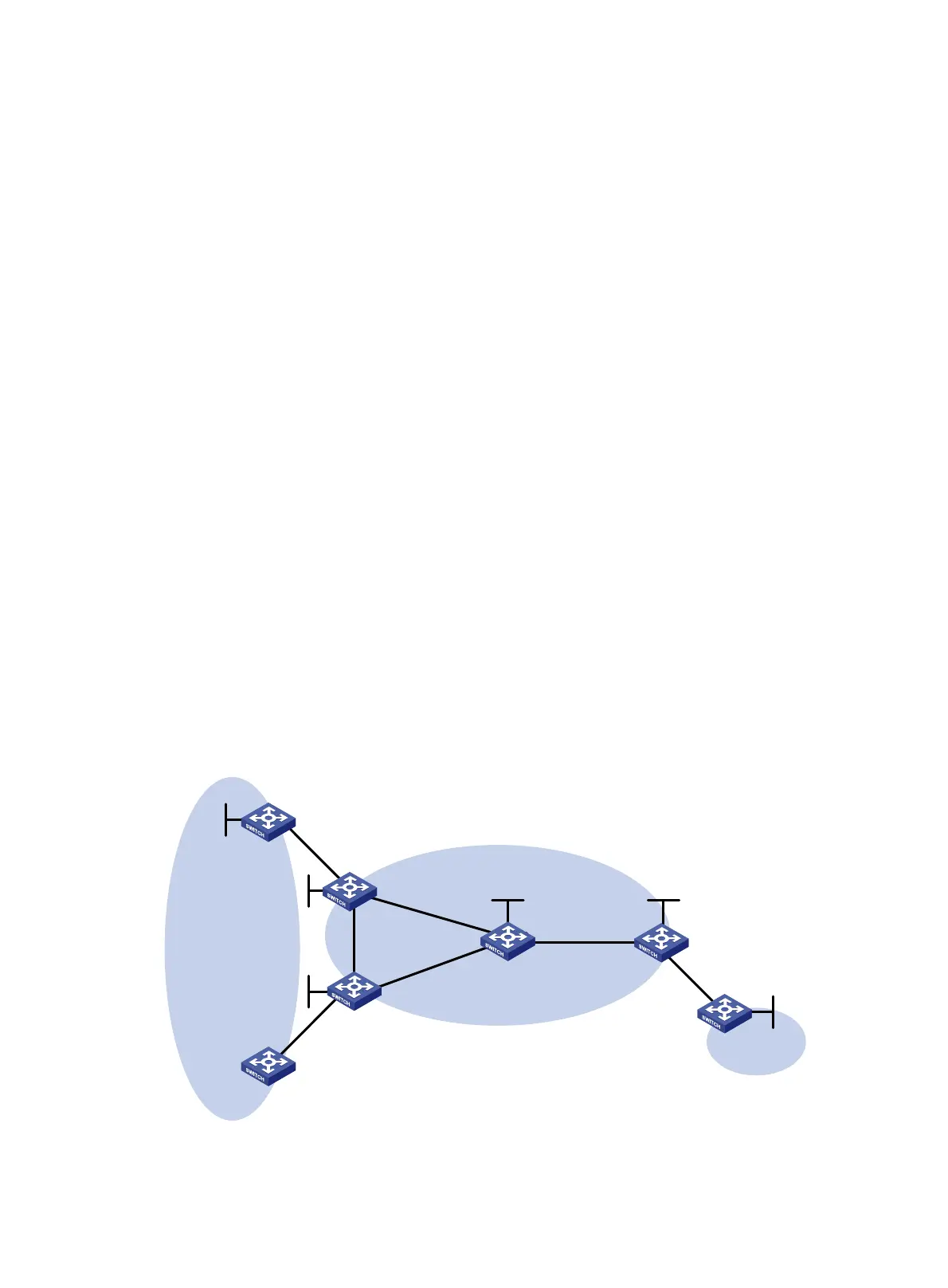

Figure 90 Network diagram
Loop0
Loop0
Loop0
PE 1
P
PE 3
CE 2
CE 3
VPN 1
AS 600
VPN 1
AS 600
Vlan-int6
Vlan-int6
Vlan-int7
Vlan-int2
Vlan-int2
MPLS backbone
AS 100
CE 1
Vlan-int2
Vlan-int2
Loop0
Vlan-int4
Vlan-int3
PE 2
Vlan-int4
Vlan-int5
Vlan-int3
Vlan-int5
Vlan-int7
Loop0
Loop0
