HPE ProLiant MicroServer Gen10 User Manual

1
1
2
3

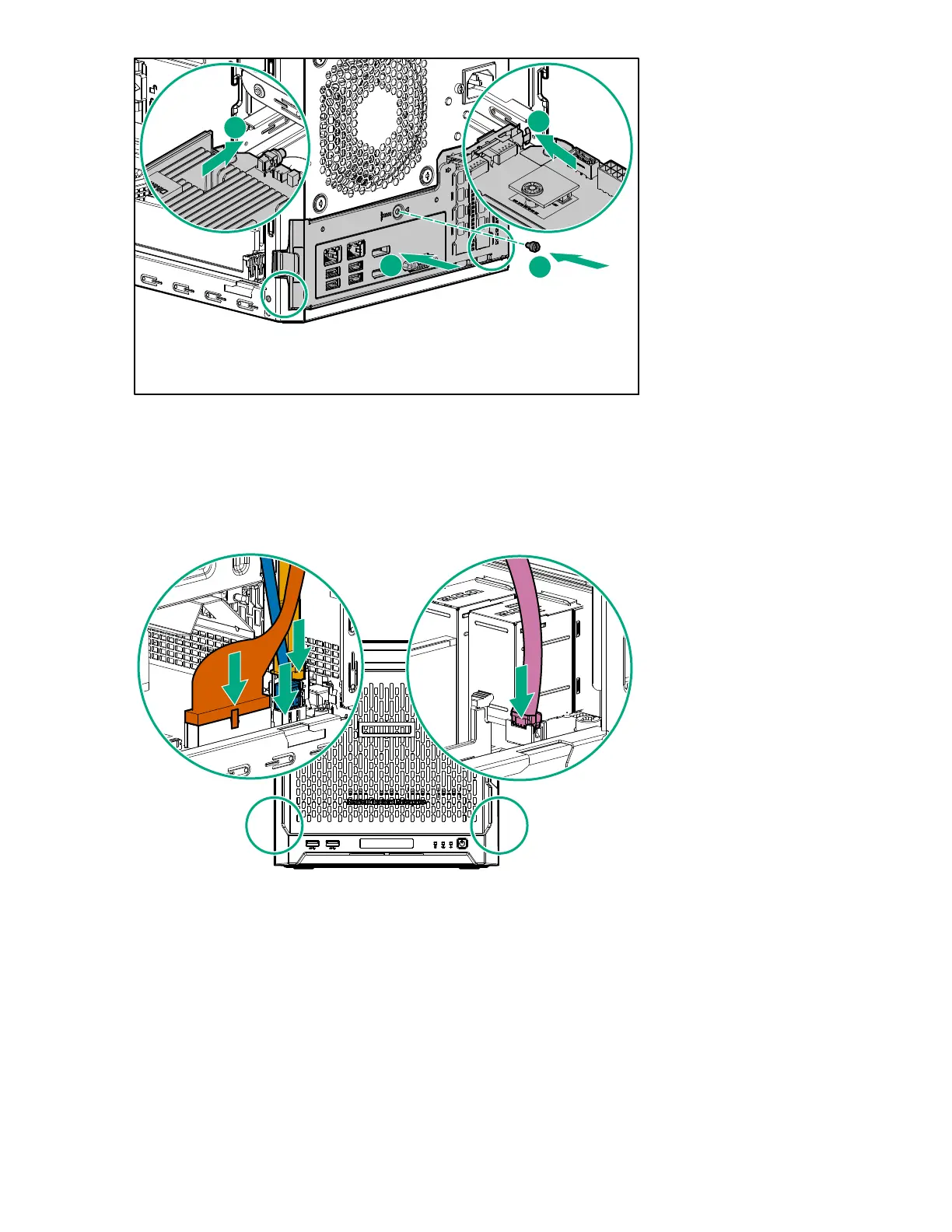

4. Connect the following system cables:
• Power supply cable
• Optical drive or SSD SATA cable (optional)
• LFF/SFF drive SATA cable – This cable can either be connected to the system board or to an installed
HBA.
• Fan cable
5. If removed, install the internal USB device.
Remove the system board assembly
To install or remove hardware components on the system board or to access the CMOS header, remove the
system board assembly
.
28 Remove the system board assembly

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
