HPE ProLiant MicroServer Gen10 User Manual

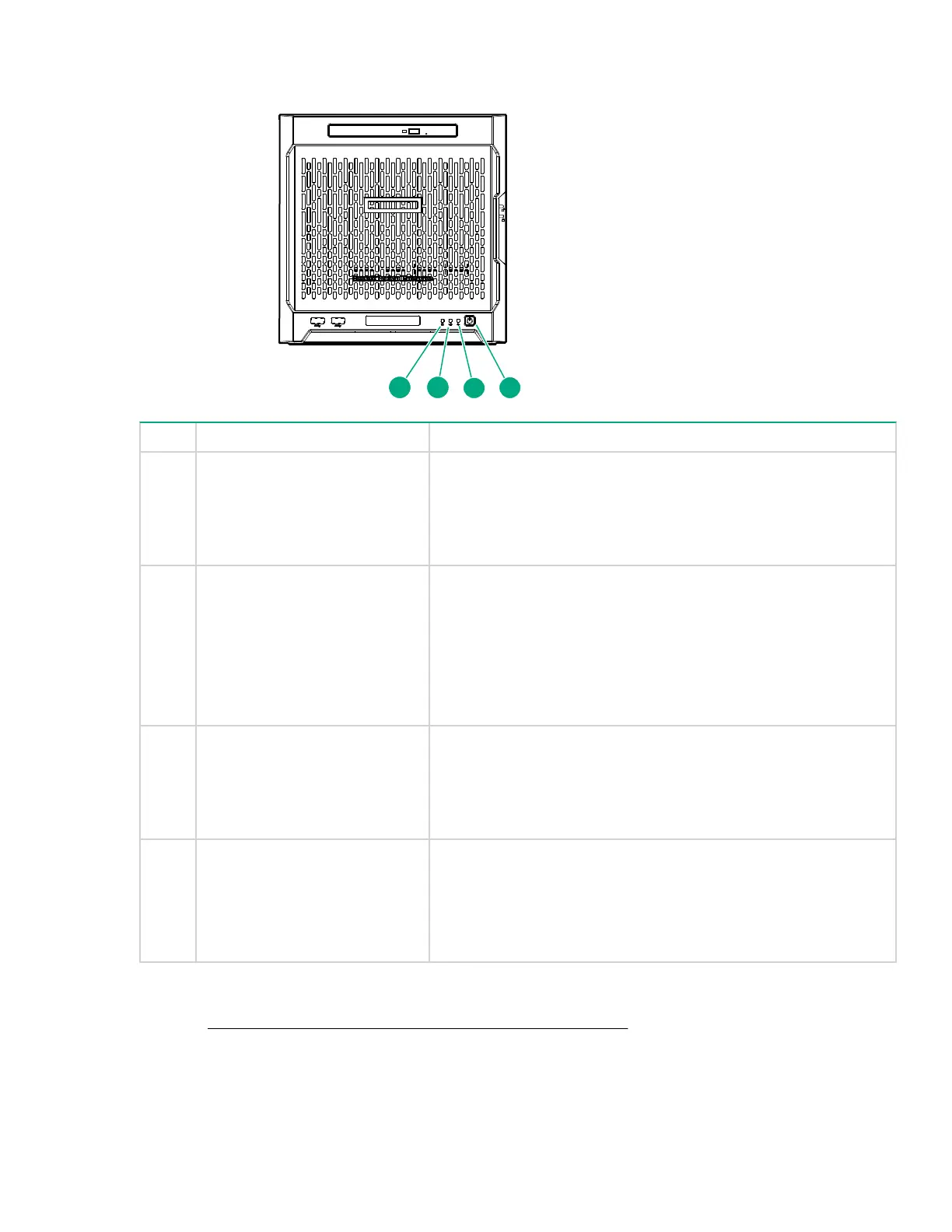

Front panel LEDs and buttons
1 2
3
4
Item Description Status
1 Drive activity LED Flashing green = Ongoing drive activity
Off = No drive activity
This LED only reflects the status of LFF/SFF drives and SSD that
are connected to the onboard SATA ports.
2 NIC status LED Solid green = Linked to network
Flashing green = Network active
Off = No network activity
This LED only reflects the status of Ethernet connections
managed by the embedded Broadcom BCM5720 Gigabit Ethernet
controller.
3 Health LED Solid green = Normal
Flashing amber = One or more component is in degraded
condition.
1
Flashing red = One or more component is in critical condition.
1
4 Power on/Standby button and
system power LED
Flashing green = Ongoing power-on sequence
Solid green = System on and normal operation
Amber = System in standby
Off = No power present
2
1
To identify which component is in the degraded or critical state, reboot the server. A POST error message
screen showing the affected component will appear for about 30 seconds. Depending on how critical the
component health status is, the system boot may or may not be completed. For troubleshooting information,
see the HPE ProLiant MicroServer Gen10 Troubleshooting Guide.
2
If the server does not power on, verify the following items:
Front panel LEDs and buttons 7

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
