HPE ProLiant MicroServer Gen10 User Manual

• If the drives are connected to the LFF/SFF drive SATA port, use the Marvell Storage Utility on page
63
or the
Marvell BIOS Utility on page 64.
•
If the drives are connected to an HPE Smart HBA or Smart Array controller option, use the
HPE
Smart Storage Administrator on page 63.
Install the SFF drive
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• T
-10 Torx screwdriver
• T-15 Torx screwdriver
• SFF drive converter option kit. This kit includes:
◦ Drive converter tray
◦ T-10 screws (4)
• SFF drive option
Procedure

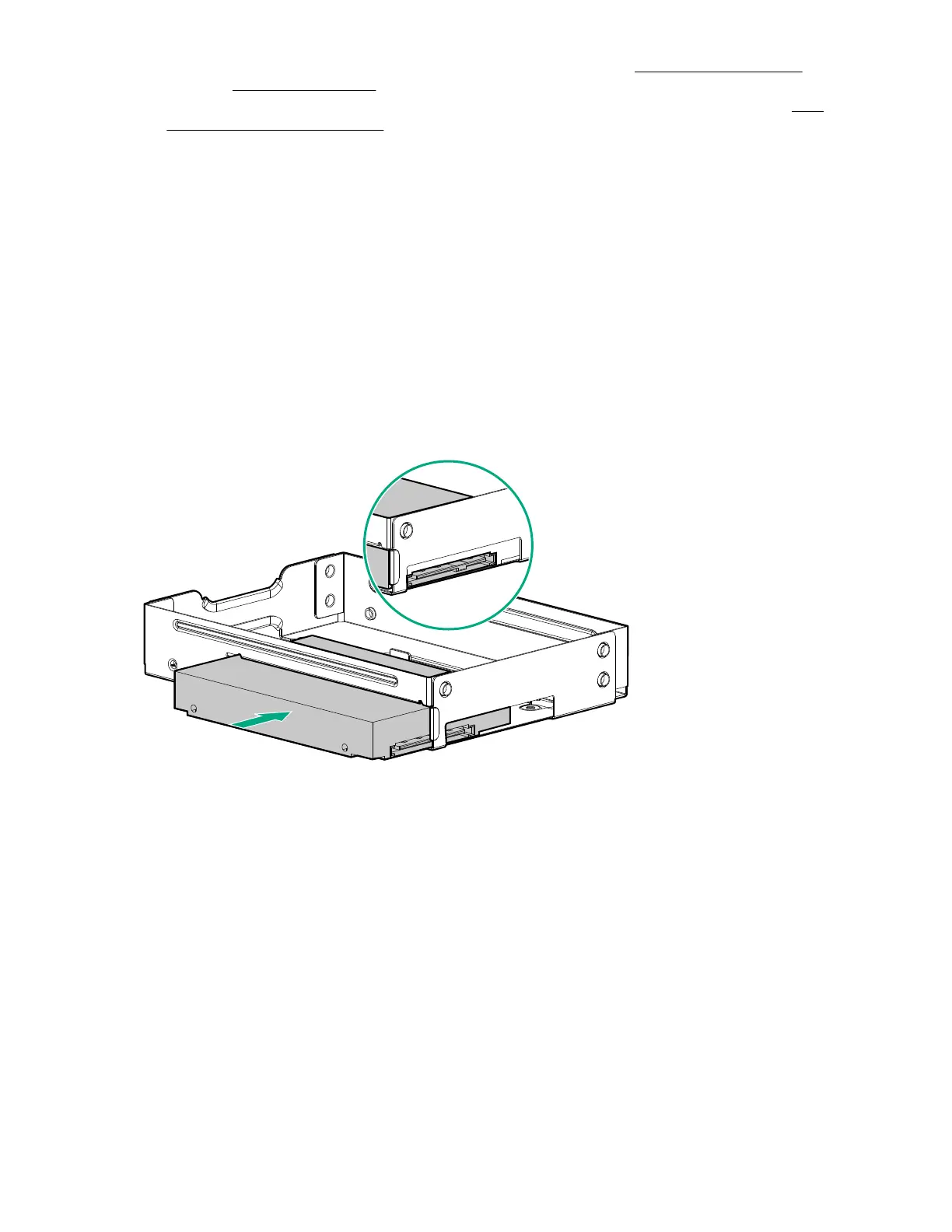

1. Install the SFF drive in the drive converter tray.
2. Follow the callout sequence in the following illustration to install the screws included in the converter kit on
the bottom side of the converter tray.
34 Install the SFF drive

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
