HPE ProLiant MicroServer Gen10 User Manual

Cabling
Cabling overview
This section provides guidelines that help you make informed decisions about cabling the server and
hardware options to optimize performance.
CAUTION:
When routing cables, always be sure that the cables are not in a position where they can be pinched or
crimped.
Four-bay non-hot-plug drive cabling
The four-bay non-hot-plug drive cable assembly consists of the drive power and SAT
A cables attached to a
bracket. If either the drive power or SATA cable becomes defective, the entire cable assembly will need to be
replaced.

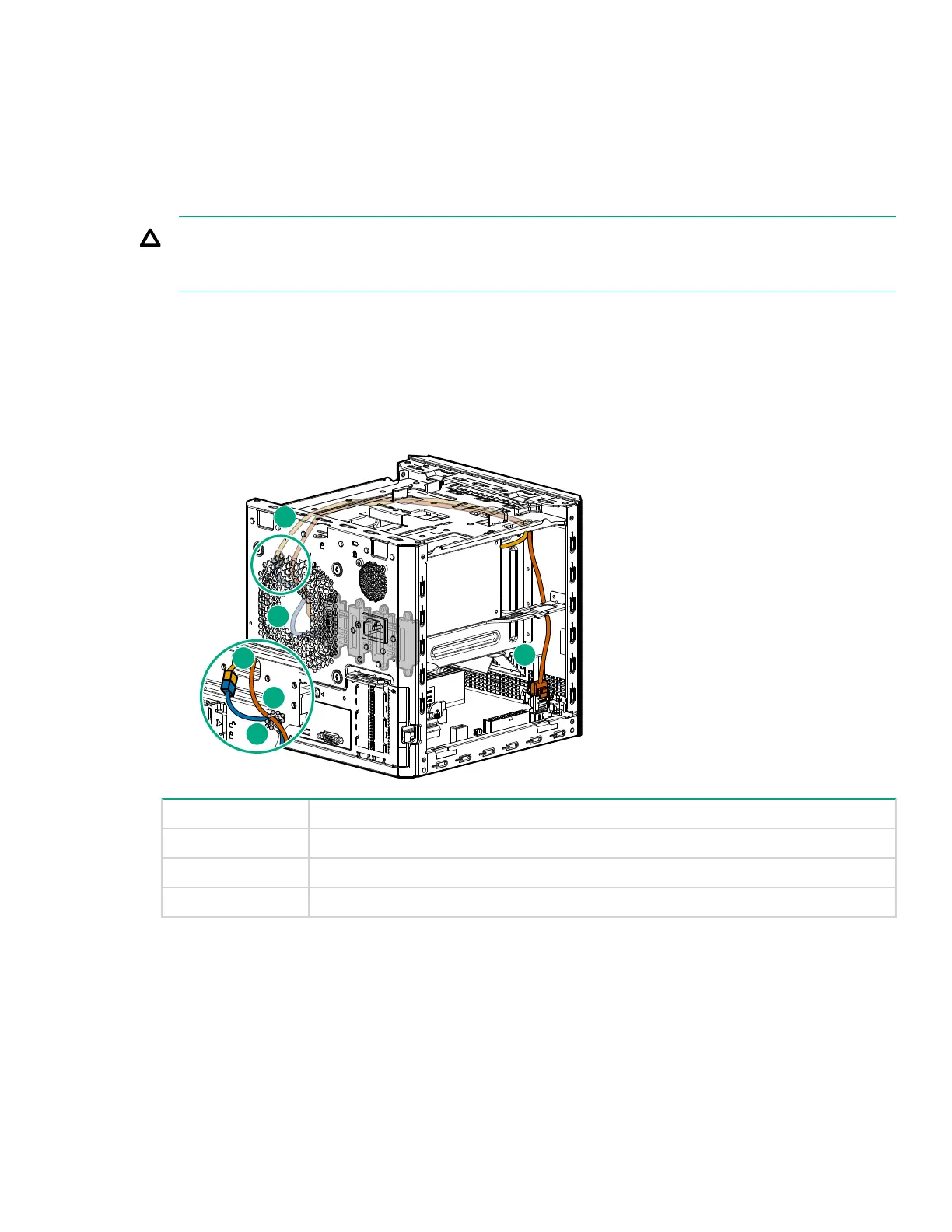

• LFF/SFF drive SATA cable connected to the system board
1
1
2
2
3
3
Item Description
1 P2 power supply cable
2 LFF/SFF drive power cable
3 LFF/SFF drive SATA cable
• LFF/SFF drive SATA cable connected to an HBA
Cabling 55

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
