HPE ProLiant MicroServer Gen10 User Manual

Item Component Description
8 Display port 2 Connects to a digital display device, such as a high-resolution
set top boxes or TV displays.
2
9 USB 2.0 ports (2)
Connect USB 2.0 devices to these ports.
10 USB 3.0 ports (2)
Connect USB 3.0 devices to these ports. USB 3.0 support
after POST varies by operating system.
11 NIC port 1 (1 Gb) Connect an Ethernet cable here to connect the server to a
wired network.
3
12 NIC port 2 (1 Gb) Connect an Ethernet cable here to connect the server to a
wired network.
3
1
This expansion slot is open-ended, which enables down-plugging. Down-plugging means a larger
-width
expansion board can be installed in a smaller
-width connector. For this server, the expansion slot supports
low-profile expansion boards with a physical connector link width of up to ×16. The board operates at the
highest common negotiable link width specified for the slot.
2
To support 4K resolution at a full 60 Hz frame rate, this Display port requires dual-channel memory
configuration. Single-channel memory configuration will only support up to 30 Hz frame rate.
3
This NIC port supports 10/100/1000 Mbps data transfer rate per port.

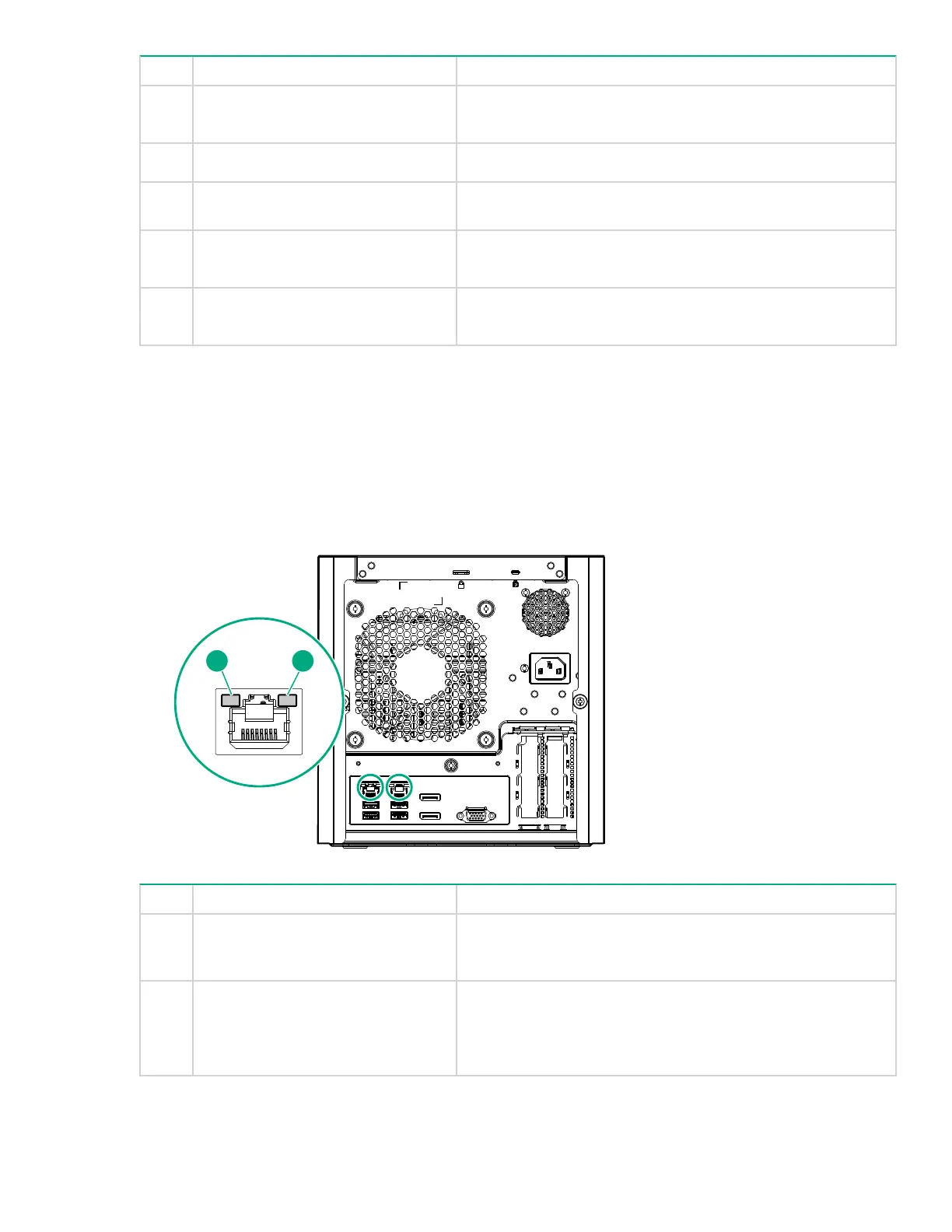

Rear panel LEDs
21
Item Description Status
1 NIC link LED Solid green = Link exists
Off = No link exists
2 NIC status LED Solid green = Linked to network
Flashing green = Network active
Off = No network activity
Rear panel LEDs 9

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
