2
1

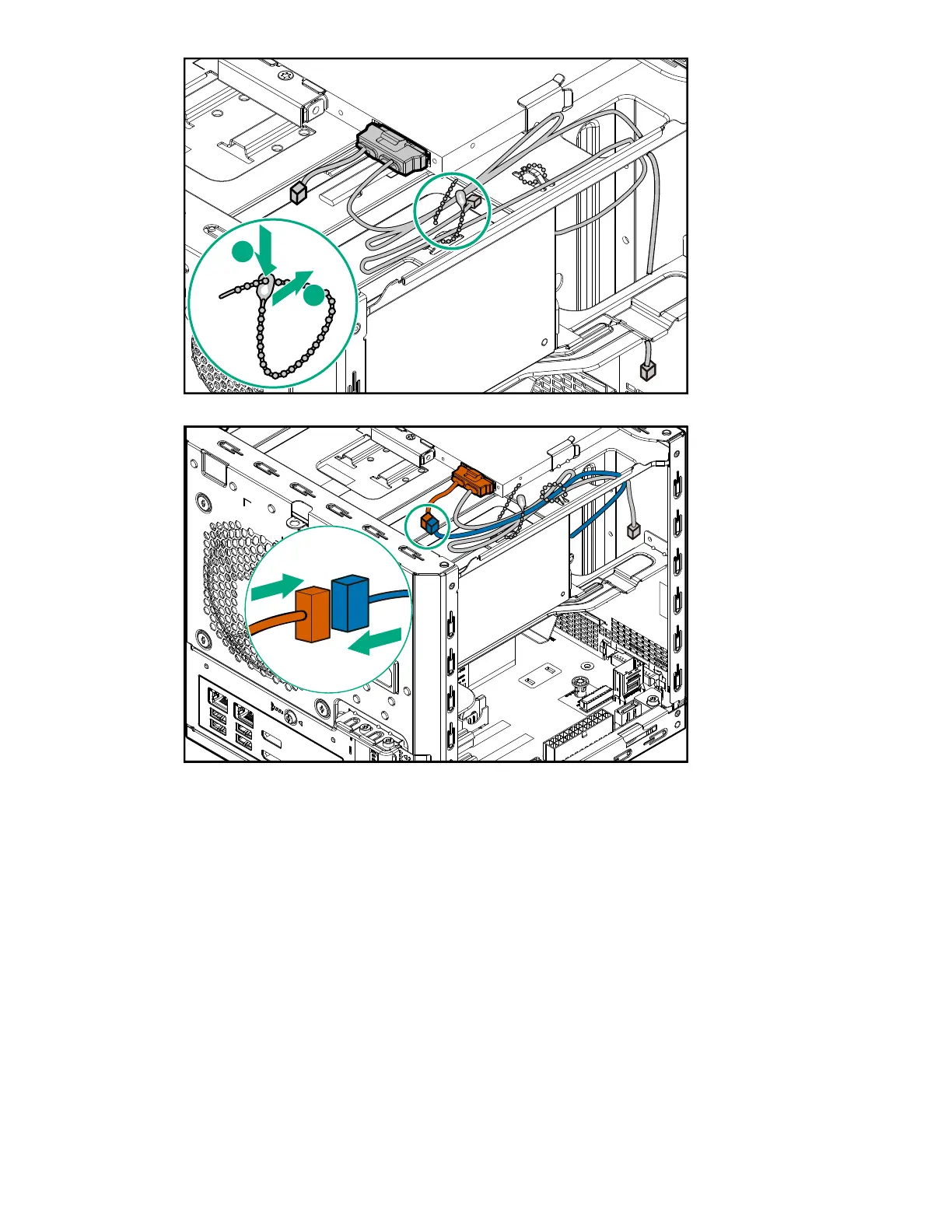

c. Connect the power end of the SATA cable to the power supply cable labeled P3.
d. Route the data end of the SAT
A Y-cable through the left side chassis opening down to the system
board.
e. Connect the data end of the cable to the SATA port.
Hardware options installation 43
