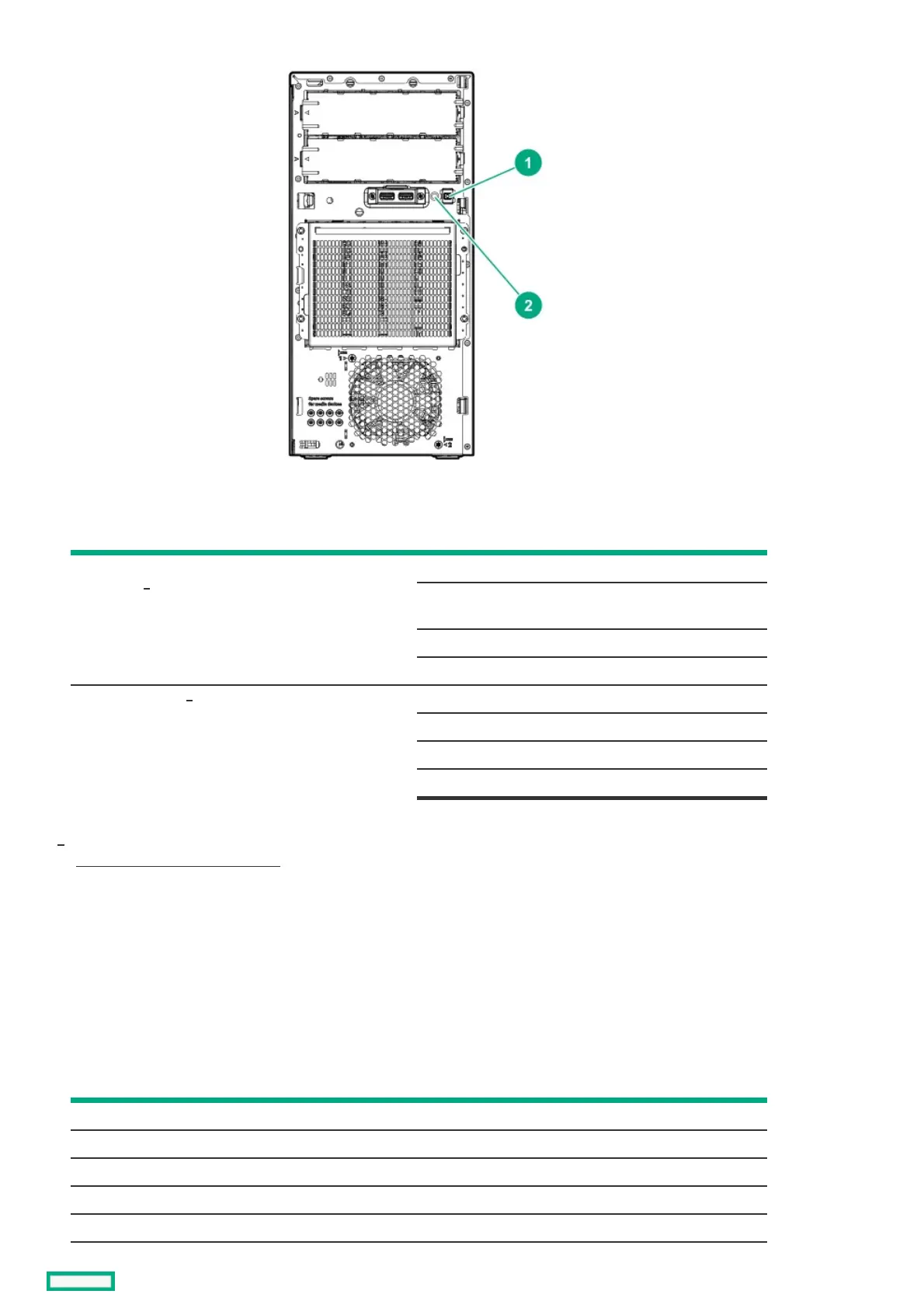

ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 Power On/Standby button and system power
LED
Solid green System on
Flashing green Performing power-on
sequence
Solid amber System in standby
Off No power present
2 Health LED Solid green Normal
Flashing green iLO rebooting
Flashing amber System degraded
Flashing red System critical
When the LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
Front panel LED power fault codes
.
Front panel LED power fault codesFront panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power faults are used by all
servers.
SubsystemSubsystem LED behaviorLED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
1
1
1
