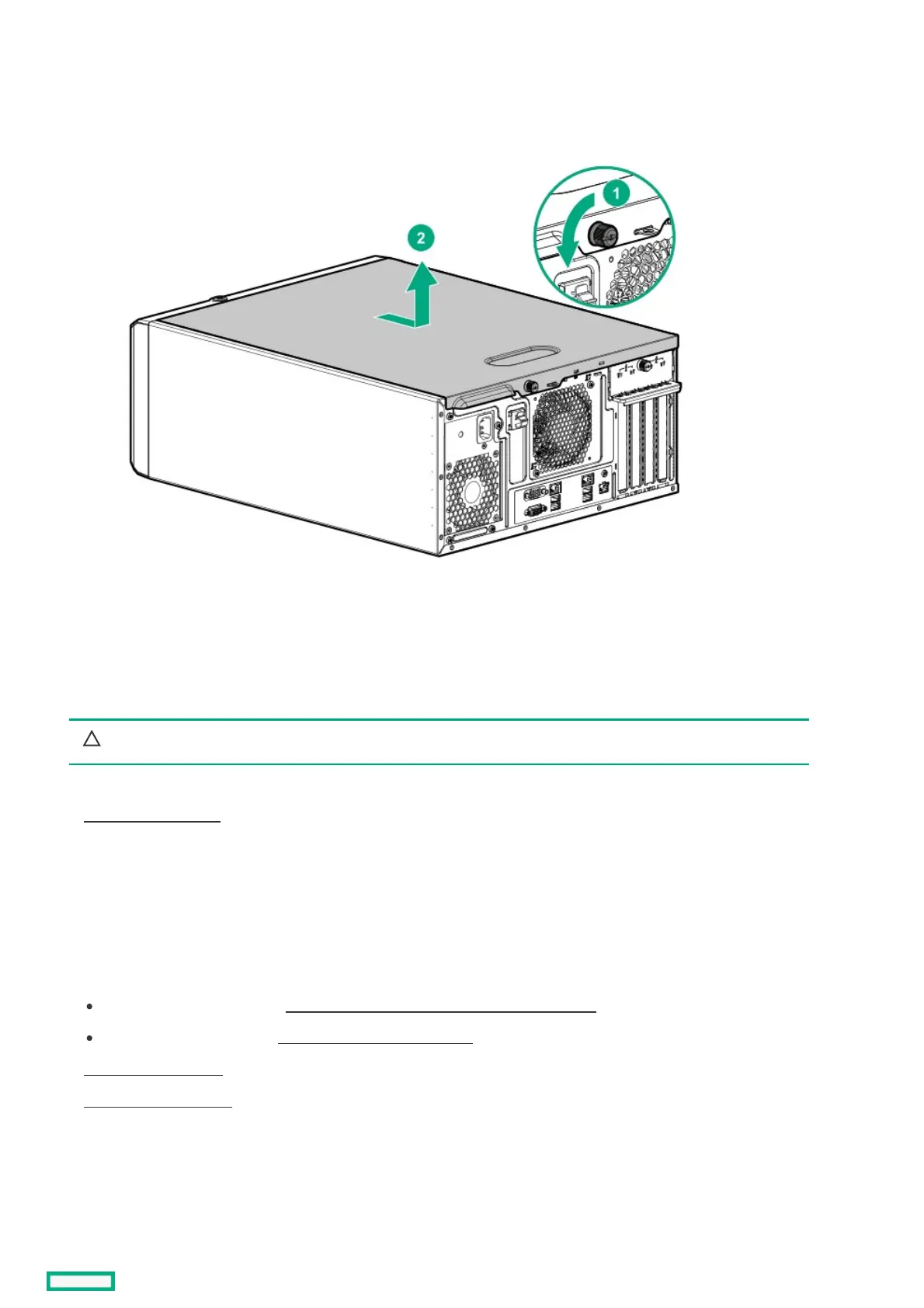

7. Remove the access panel:
a. Loosen the access panel thumbscrew.
b. Slide the access panel, and then lift it away from the chassis.
Remove the air baffleRemove the air baffle
CAUTION: CAUTION: For proper cooling, do not operate the server without the access panel, baffles, expansion slot covers, or
blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.
ProcedureProcedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel .
6. Remove the access panel .
7. Remove the air baffle:
a. Lift the front end of the baffle from the chassis.
b. Remove the baffle from the slots on the rear chassis.
