To replace the component, reverse the removal procedure.
Removing and replacing an M.2 SSDRemoving and replacing an M.2 SSD
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a Phillips No. 1 screwdriver available.
ProcedureProcedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel .
6. Remove the access panel .
7. If installed, remove the air baffle .

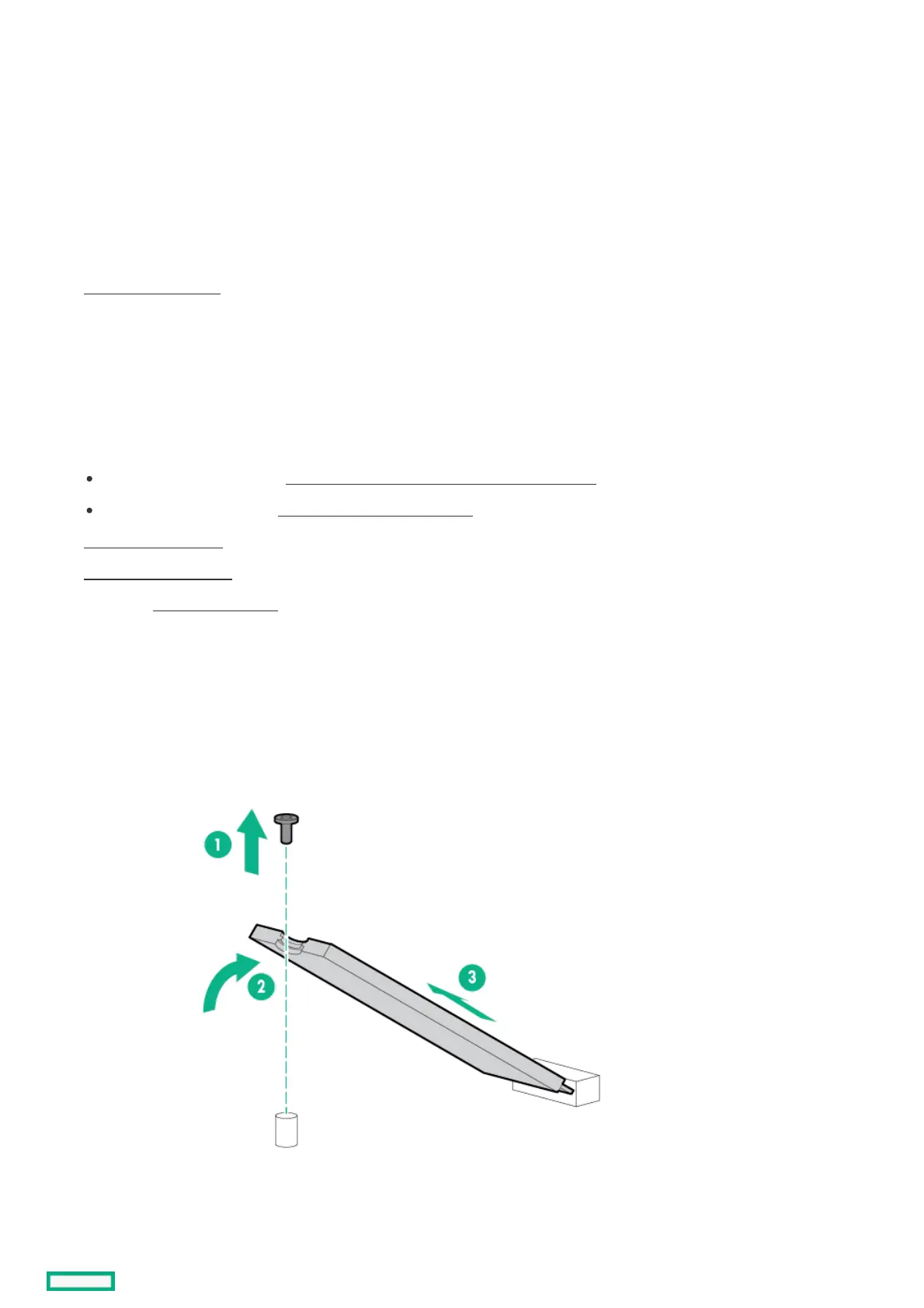

8. Remove the M.2 SSD:
a. Remove the SSD mounting screw.
b. Lift the M.2 SSD at an angle of 45°.
c. Remove the M.2 SSD from the M.2 SSD slot.
To replace the component, reverse the removal procedure.
