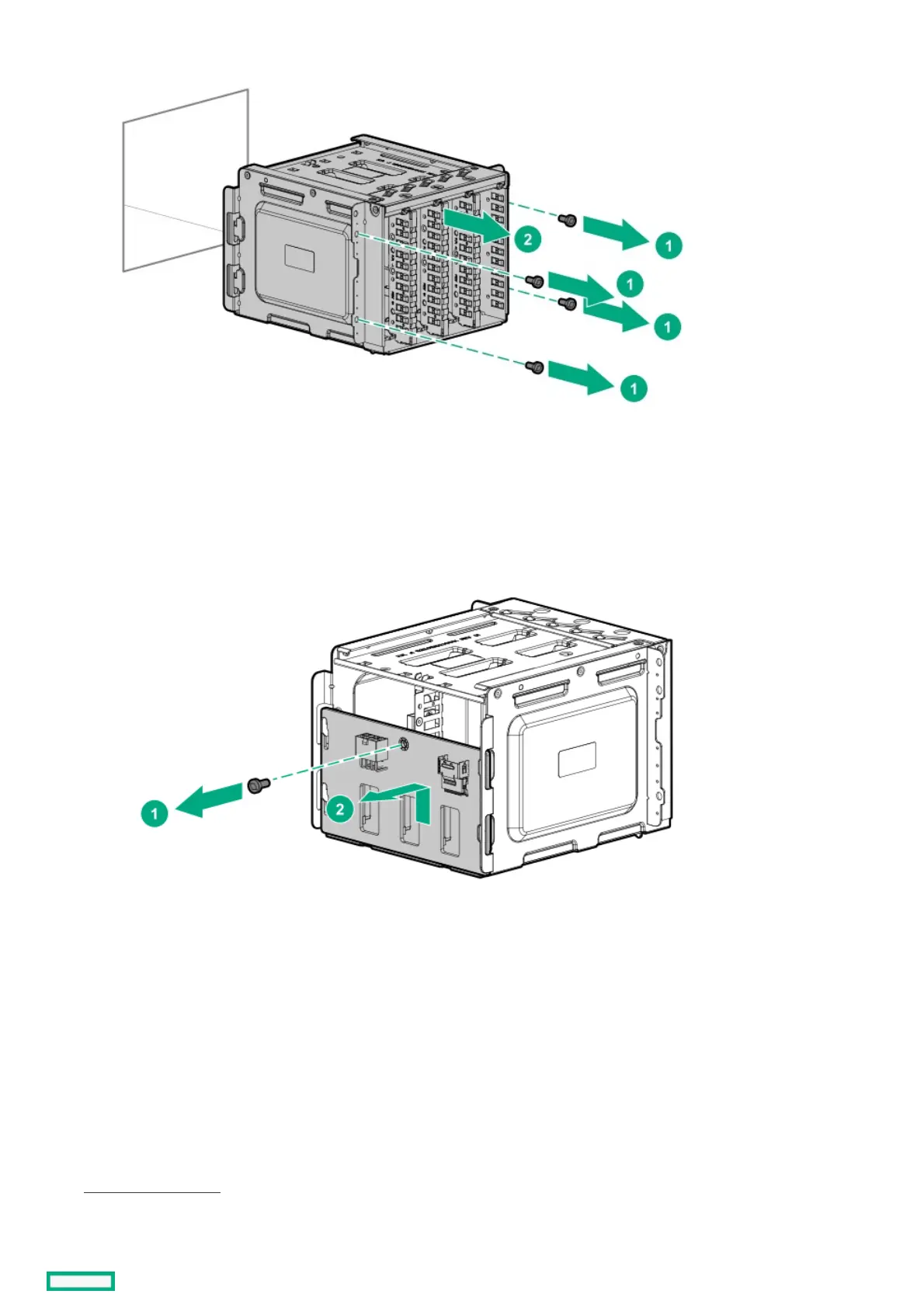

11. Remove the drive backplane.
Retain the screw for future use.
To replace the component, reverse the removal procedure.
Removing and replacing the eight SFF hot-plug drive backplaneRemoving and replacing the eight SFF hot-plug drive backplane
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
ProcedureProcedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
