If the server is in tower mode: Position the tower server for hardware configuration.
If the server is in rack mode: Remove the server from the rack .
5. Remove the front bezel .
6. Remove the access panel .
7. If installed, remove the air baffle .
8. Locate the battery on the system board .
9. Remove the system battery:

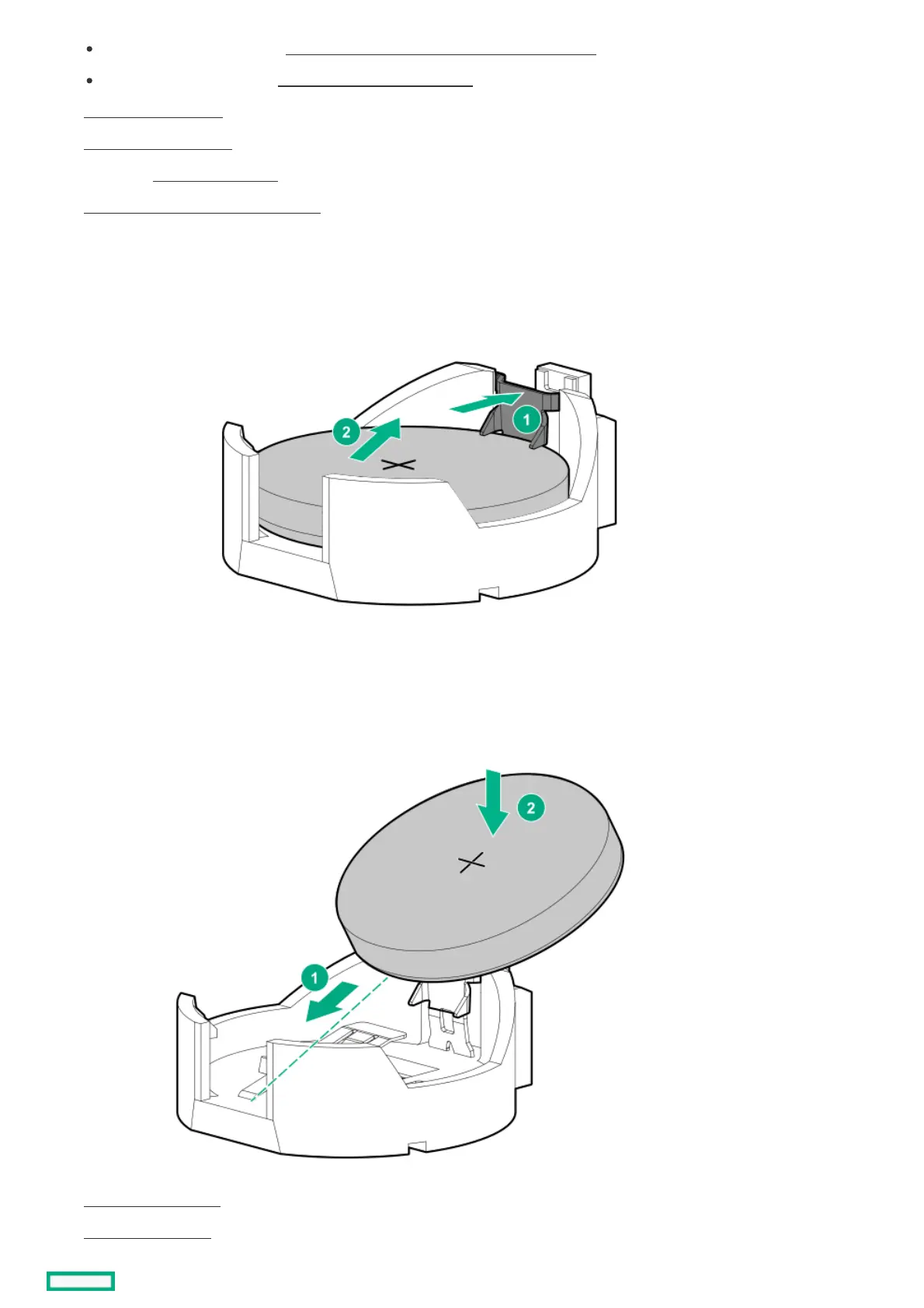

a. Use a small flat-bladed, nonconductive tool to press the battery latch (callout 1).
b. Remove the system battery from the socket (callout 2).
10. Install the system battery:
a. With the side of the battery showing the "+" sign facing up, insert the battery into the socket (callout 1).
b. Press the system battery down until it clicks into place (callout 2).
11. Install the access panel.
12. Install the front bezel.
