HSD ES939 - Technical Characteristics of the HSD Square Wave Encoder; Output of the HSD Square Wave Encoder

HSD
5801H0056 ______________________________________________________________ 116/181
6.10.2 Technical characteristics of the HSD Square Wave encoder
SPECIFICATION VALUE
Rated electrical power:
12V DC
- 24V DC ±10%
Consumption:
99 mA with 12V DC
51 mA with 24V DC
Operating temperature 0°C - 70°C (32° F - 158° F)
Max operating altitude: 2000m (6500ft)
Signal input: 400 pulses per rev + zero reference
Signal output: TTL-level compatible (0V, +5V line driver)

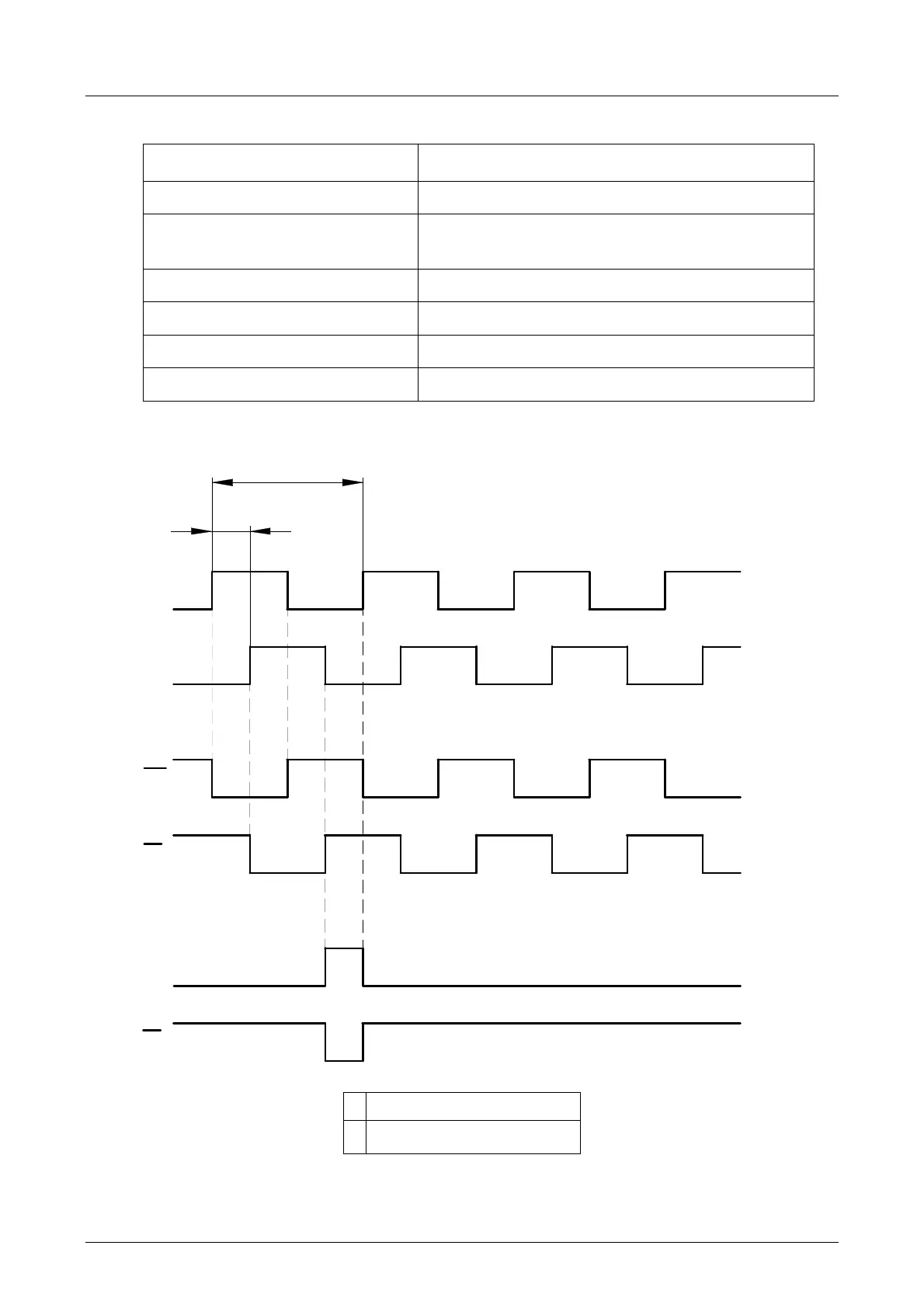

6.10.3 Output of the HSD Square Wave encoder
D
T
5 V
Z
Z
0 V
5 V
0 V
5 V
0 V
5 V
0 V
B
B
A
A
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
T
Period
D
Phase Difference (D=T/4)
