5801H0056 ______________________________________________________________ 149/181
5.

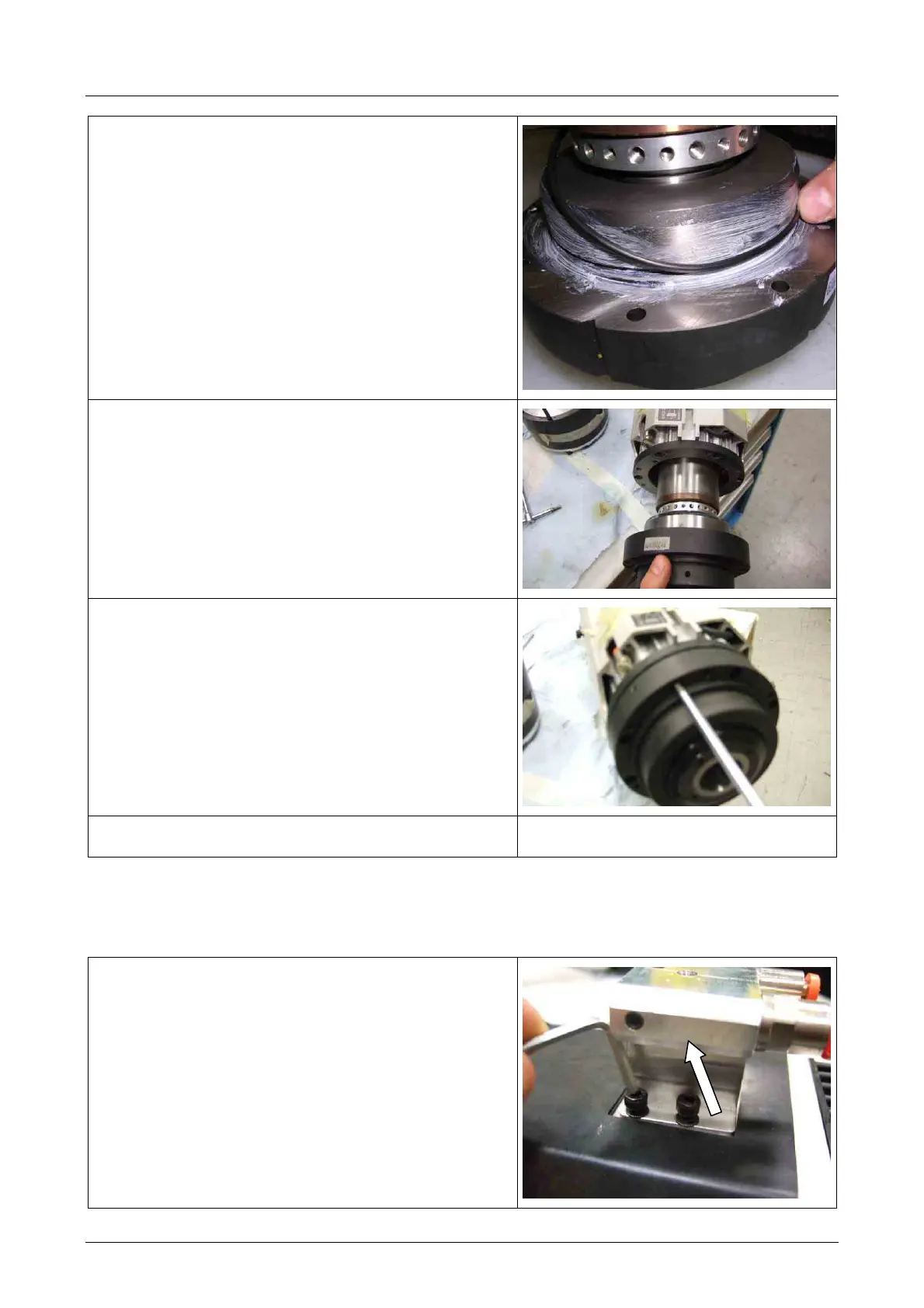

Assemble the OR 3350, after greasing it with
the same grease indicated above.
6.
Insert the shaft kit, taking care to align the
pressurisation air passage bores on the front
flange and on the framework.
7.
Tighten the M5x20 screws (of a material with a
resistance class of 12.9) on the front flange,
using a tightening torque of 10 Nm
8.
Carry out the sensor calibration procedure.
8.6 REPLACING THE SHAFT KIT FOR MODELS ES939 WITH ENCODER
8.6.1 Cylinder unit disassembly
1.
Disassemble the pneumatic connections block
by loosening the four M4 screws from the block
with an L-shaped Allen spanner.
